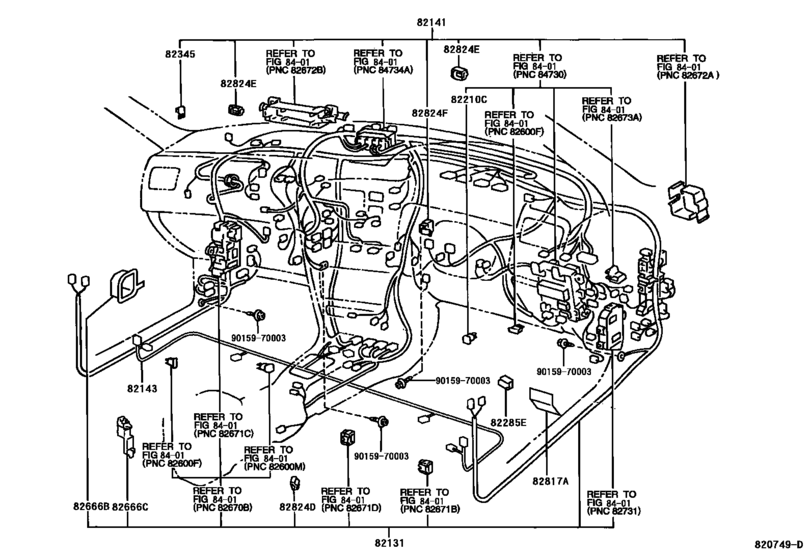

Wiring & Clamp ([05.1995 - ] COWL,INSTRUMENT PANEL (9505- )RHD) Diagram Toyota COROLLA
- Year
- 1995 - 2000
- Sales region
- General
- Frame
- EE111
- grade
- XLI
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82131
|
82131
82131-1L400 Wire, CowlCOWL [05.1995 - 05.1996] EE111 |
82131-1L400 |
US $455.73 |
||
|
82131
|
82131
82131-1L401 Wire, CowlCOWL [05.1996 - 04.1997] EE111 |
82131-1L401 |
US $457.18 |
||
|
82131
|
82131
82131-1L410 Wire, CowlCOWL [05.1995 - 05.1996] AE111..GLI,XLI; EE111 W(ELECTRIC REMOTE CONTROL DOOR MIRROR) |
82131-1L410 |
US $499.41 |
||
|
82131
|
82131
82131-1L411 Wire, CowlCOWL [05.1996 - 10.1999] EE111..GEN W(ELECTRIC REMOTE CONTROL DOOR MIRROR) |
82131-1L411 |
US $500.86 |
||
|
82131
|
82131
82131-1L420 Wire, CowlCOWL [05.1995 - 11.1995] AE111,EE111..GLI,XLI W(*EL) |
82131-1L420 |
US $656.66 |
||
|
82131
|
82131
82131-1L421 Wire, CowlCOWL [05.1996 - 10.1999] AE111,EE111..RHD..SED..(3FC,5F)..XLI..GEN W(*EL) |
82131-1L421 |
US $659.57 |
||
|
82131
|
82131
82131-1L530 Wire, CowlCOWL [04.1997 - 10.1999] AE111,EE111..RHD..(GLI,XLI)..GEN; AE111..MA;AE110,112,CE110..IDN,NZ,TH;AE111,EE111..RHD..(GLI,XLI)..(GEN,MA,NZ,TH) |
82131-1L530 |
US $1,074.53 |
||
|
82131
|
82131
82131-1L531 Wire, CowlCOWL [10.1999 - 09.2001] AE111,EE111..RHD..(GLI,XLI)..GEN |
82131-1L531 |
US $1,231.78 |
||
|
82141
|
82141
82141-1H830 Wire, Instrument PanelINSTRUMENT PANEL [05.1995 - 05.1996] AE111,EE11#..5F..(XL,XLI) |
82141-1H830 |
US $417.87 |
||
|
82141
|
82141
82141-1H831 Wire, Instrument PanelINSTRUMENT PANEL [05.1996 - 04.1997] AE111,EE11#..5F..(XL,XLI) |
82141-1H831 |
US $417.87 |
||
|
82141
|
82141
82141-1H840 Wire, Instrument PanelINSTRUMENT PANEL [05.1995 - 05.1996] EE11#..3FC; AE111,EE111..5F..XLI W(ELECTRIC REMOTE CONTROL DOOR MIRROR); EE111..5F W(*RWD),W(*EL),W(RHEOSTAT LIGHT CONTROL) OR W(CLOCK); AE111..XLI W(*66),W(*RWD),W(*EL),W(RHEOSTAT LIGHT CONTROL) OR W(CLOCK); EE110..5F W(*RWD) OR W(*EL |
82141-1H840 |
US $499.41 |
||
|
82141
|
82141
82141-1H841 Wire, Instrument PanelINSTRUMENT PANEL [05.1996 - 10.1999] AE111,EE111..RHD..SED..5F..XLI..GEN W(ELECTRIC REMOTE CONTROL DOOR MIRROR); EE111..5F..GEN W(*RWD),W(*EL),W(RHEOSTAT LIGHT CONTROL) OR W(CLOCK); AE111..RHD..SED..5F..XLI..GEN W(*66),W(*RWD),W(*EL),W(RHEOSTAT LIGHT CONTROL) OR W(CLOCK) |
82141-1H841 |
US $500.86 |
||
|
82141
|
82141
82141-1N440 Wire, Instrument PanelINSTRUMENT PANEL [04.1997 - 12.1998] EE110..RHD..5F;AE111,CE110,EE111..RHD..(GL,GLI,XL,XLI)..GEN; AE111..MA;AE110,112..XLI..(IDN,TH);AE111,CE110,EE11#..RHD..(GL,GLI,XL,XLI)..(GEN,M A,NZ,TH) |
82141-1N440 |
US $538.72 |
||
|
82141
|
82141
82141-1N441 Wire, Instrument PanelINSTRUMENT PANEL [10.1999 - 08.2000] CE110..RHD..XL;AE111,EE11#..RHD..SED..GEN W(MULTI HEAD LAMP) |
82141-1N441 |
US $927.47 |
||
|
82141
|
82141
82141-1N460 Wire, Instrument PanelINSTRUMENT PANEL [04.1997 - 12.1998] EE110..RHD..5F;AE111,CE110,EE111..RHD..(GL,GLI,XL,XLI)..GEN W(*80,DRIVER SIDE & PASSENGER SIDE); AE111..(GLI,SEG)..(MA,TH);AE111,112,CE110,EE11#..RHD..(GL,GLI,XL,XLI)..(GEN,MA,NZ) W(*80,DRIVER SIDE & PASSENGER SIDE) |
82141-1N460 |
US $578.03 |
||
|
82141
|
82141
82141-1N461 Wire, Instrument PanelINSTRUMENT PANEL [10.1999 - 08.2000] CE110..RHD..XL;AE111,EE11#..RHD..SED..GEN W(MULTI HEAD LAMP & *80,DRIVER SIDE & PASSENGER SIDE) |
82141-1N461 |
US $1,033.76 |
||
|
82141
|
82141
82145-12460 Wire, Instrument PanelINSTRUMENT PANEL [10.1999 - 08.2000] CE110..RHD..XL;AE111,EE11#..RHD..SED..GEN W(MULTI HEAD LAMP & *80,DRIVER SIDE) |
82145-12460 |
US $1,033.76 |
||
|
82143
|
82143
82143-12010 Wire, Instrument Panel, No.3[04.1997 - 02.2000] AE111..RHD..WG;EE110..LHD..3FC;AE111..SED..(GL,GLI,XL,XLI)..(GCC,GEN,VEN);AE112,CE 110,EE111..(GLI,XL,XLI)..(ARL,GCC,GEN,VEN);AE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,X L)..(GCC,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE); AE111..WG..5F;AE11 |
82143-12010 |
US $120.85 |
||
|
82143
|
82143
82143-12090 Wire, Instrument Panel, No.3[10.1999 - 09.2001] AE111,112,CE110,EE11#..RHD..(ARL,GEN) W(*80,DRIVER SIDE) |
82143-12090 |
US $41.20 |
||
|
82210C
|
82210C
90982-08228 Fusible Link[04.1997 - 11.1998] AE110,CE110..(GLI,XL)..GEN;AE112,EE111..ARL,GCC,GEN,VEN;AE111..RHD..(GLI,SEG,XLI). .GEN;AE111..LHD..SED..(GLI,XLI)..(GCC,GEN,VEN) 50A,TERMINAL:MALE; AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE111;AE111..(GLI,XLI)..(ARL,GCC,GEN,GE NKD |
90982-08228 |
US $9.28 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[05.1995 - 04.1997] AE11#,EE111 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210C
|
82210C
90982-08257 Fusible Link[05.1995 - 04.1997] AE11#,EE11# 40A,TERMINAL:MALE |
90982-08257 |
US $11.20 |
||
|
82210C
|
82210C
90982-08280 Fusible Link[05.1995 - 11.1998] AE111..RHD..(GLI,XLI)..GEN;AE110,112,CE110,EE111..RHD..(ARL,GEN);AE111,EE110..(GL, SEG,STD,XL)..(GCC,GEN) 30A,TERMINAL:FEMALE |
90982-08280 |
US $9.44 |
||
|
82210C
|
82210C
90982-08281 Fusible Link[04.1997 - 11.1998] EE110..LHD..(GCC,GEN);AE111..RHD..(GLI,XLI)..GEN;AE110,CE110..(GLI,XL)..GEN;AE112, EE111..ARL,GCC,GEN,VEN;AE111..LHD..SED..(GCC,GEN,TUR,VEN) 40A,TERMINAL:FEMALE; AE110..TH;AE111..MA;AE110..GLI;AE111,EE110..LHD;AE112,CE110,EE111;AE111.. |
90982-08281 |
from US $9.44 |
||
|
82210C
|
82210C
90982-08282 Fusible Link[05.1995 - 11.1998] EE110..GCC,GEN;AE111..RHD..WG;AE111..SED..(GCC,GEN,TUR,VEN);AE110,112,CE110,EE111. .ARL,GCC,GEN,VEN 50A,TERMINAL:FEMALE |
90982-08282 |
from US $7.04 |
||
|
82285E
|
82285E
82285-12020 Wire, IlluminationILLUMINATION [04.1997 - 11.1998] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..GCC,GEN,VEN;AE111..SED..(GL,GLI,XL,XLI )..(GCC,GEN,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN); AE110..TH;AE110,112..(GLI,SEG)..(GEN,TH);AE111..(GL,GLI,XL,XLI)..(GCC,GEN,T |
82285-12020 |
US $3.79 |
||
|
82345
|
82345
82345-12050 Diode[05.1995 - 05.1997] AE110..4FC;EE110..RHD..XL;AE111..RHD..4FC..(GLI,SEG);AE111,EE111..RHD..SED..(3FC,5 F)..XLI |
82345-12050 |
US $12.64 |
||
|
82666B
|
82666B
82666-12230 Holder, Connector No.3[04.1997 - 10.1999] AE112,EE111..ARL,GEN;AE111..RHD..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..RHD..(4FC ,5F)..(GL,GLI,XL)..GEN; AE110..TH;AE111..MA;AE111..RHD..(GL,GLI,XL,XLI);AE112,EE111..ARL,GEN,IDN,MA,NZ,TH; AE110,CE110,EE110..RHD..(GL,GLI,XL) |
82666-12230 |
US $17.76 |
||
|
82666C
|
82666C
82666-12190 Holder, Connector No.4[04.1997 - 10.1999] AE112,EE111..ARL,GEN;AE111..RHD..(GL,GLI,XL,XLI)..GEN;AE110,CE110,EE110..RHD..(4FC ,5F)..(GL,GLI,XL)..GEN; AE110..TH;AE111..MA;AE111..RHD..(GL,GLI,XL,XLI);AE112,EE111..ARL,GEN,IDN,MA,NZ,TH; AE110,CE110,EE110..RHD..(GL,GLI,XL) |
82666-12190 |
US $12.67 |
||
|
82817A
|
82817A
82817-1A620 Protector, Wiring Harness, No.2[04.1997 - 11.1998] AE111..RHD..WG;EE110..LHD..3FC;AE112,EE111..ARL,GCC,GEN,VEN;AE111..SED..(GL,GLI,XL ,XLI)..(GCC,GEN,TUR,VEN);AE110,CE110,EE110..(4F,4FC,5F)..(GL,GLI,STD,XL)..(GCC,GEN ); AE110..TH;AE111..MA;AE110..GLI;AE112,CE110,EE11#;AE111..GL,GLI,XL, |
82817-1A620 |
US $12.67 |
||
|
82824D
|
82824D
82824-12190 Connector, Wiring Harness[04.1997 - 07.2002] EE111 |
82824-12190 |
US $11.50 |
||
|
82824D
|
82824D
82824-20050 Connector, Wiring Harness[05.1995 - 01.2002] AE111..RHD..WG;AE110..XLI..GEN;AE112,CE110,EE11#..ARL,GCC,GEN;AE111,ZZE11#..SED..( GCC,GEN,TUR) NO.2 |
82824-20050 |
US $12.67 |
||
|
82824E
|
82824E
82824-12200 Connector, Wiring Harness[05.1995 - 05.1996] EE111;AE111..5F..GLI;AE11#,EE110..(4FC,5F)..(SEG,XL,XLI) W(*66) OR W(AUTO AIR CONDITIONER) |
82824-12200 |
US $51.98 |
||
|
82824E
|
82824E
82824-12210 Block, Junction[05.1996 - 04.1997] AE111,EE11#..5F..(XL,XLI) NO.1 |
82824-12210 |
US $35.64 |
||
|
82824E
|
82824E
82824-12220 Connector, Wiring Harness[10.1999 - 02.2000] AE111..TUR;AE11#,CE110,EE11#..RHD..(ARL,GEN) NATURAL; AE111..GLI..(TH,TUR);AE111,EE11#..(XL,XLI)..(PHL,TUR) NATURAL; AE110..4FC NATURAL |
82824-12220 |
US $25.63 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
