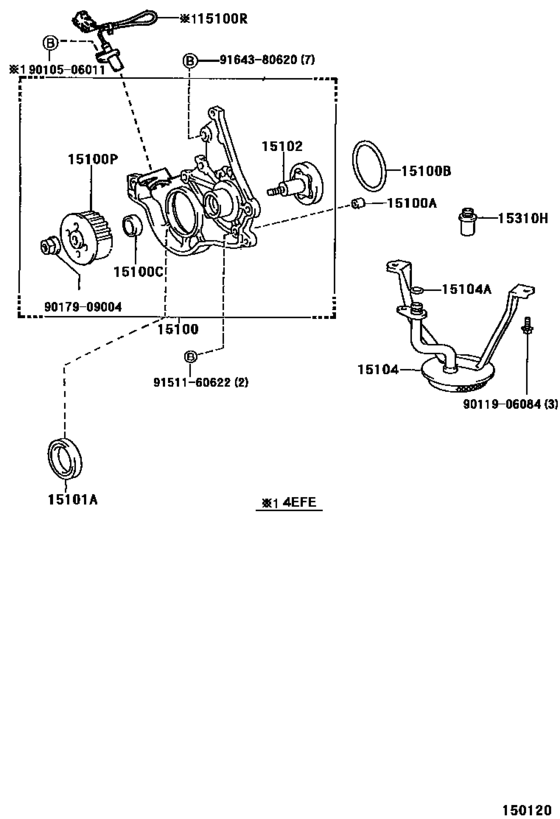

Engine Oil Pump ([04.1997 - ] (9704- )2E,4EFE) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-11110 Pump Assy, Oil[04.1997 - 10.1999] 4EFE..EE111 |
15100-11110 |
from US $92.45 |
||
|
15100A
|
15100A
90253-09001 Pin, Ring W/head[04.1997 - 10.1999] 2E,4EFE..EE11# |
90253-09001 |
from US $1.33 |
||
|
15100B
|
15100B
90301-62006 Ring, O(For Oil Pump)[04.1997 - 10.1999] 4EFE..EE111 |
90301-62006 |
from US $2.98 |
||
|
15100C
|
15100C
90029-21020 Seal(For Oil Pump)[04.1997 - 10.1999] 2E,4EFE..EE11# |
90029-21020 |
from US $5.42 |
||
|
15100P
|
15100P
13524-11020 Pulley, Oil Pump Drive Shaft[04.1997 - 10.1999] 4EFE..EE111 |
13524-11020 |
from US $18.95 |
||
|
15100R
|
15100R
90919-05018
Sensor, Crank Position
[04.1997 - 10.1999] 4EFE..EE111 |
90919-05018 |
— | ||
|
15101A
|
15101A
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[04.1997 - 10.1999] 2E,4EFE..EE11# |
90311-35040 |
from US $5.60 |
||
|
15102
|
15102
15102-11080 Rotor Set, Oil Pump[04.1997 - 10.1999] 4EFE..EE111 |
15102-11080 |
US $77.17 |
||
|
15104
|
15104
15104-11180 Strainer Sub-Assy, Oil[04.1997 - 10.1999] 2E,4EFE..EE11# |
15104-11180 |
US $80.08 |
||
|
15104A
|
15104A
96721-24015 Ring, O(For Oil Strainer)[04.1997 - 10.1999] 2E,4EFE..EE11# |
96721-24015 |
from US $2.08 |
||
|
15310H
|
15310H
15310-10010 Regulator Assy, Oil[04.1997 - 10.1999] 2E,4EFE..EE11# |
15310-10010 |
from US $31.75 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.80 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $1.15 |
||
|
9017909004
|
9017909004
90179-09004 NUT |
90179-09004 |
US $1.44 |
||
|
9151160622
|
9151160622
91511-60622
New Genuine Part
|
91511-60622 |
— | ||
| replacement | |||||
|
9151160622
|
9151160622
91511-G0622 BOLT, FLANGE |
91511-G0622 |
from US $0.96 |
||
|
9164380620
|
9164380620
91643-80620 New Genuine Part |
91643-80620 |
US $1.46 |
||
| replacement | |||||
|
9164380620
|
9164380620
91641-80616 BOLT W-WASHER |
91641-80616 |
from US $1.01 |
||
