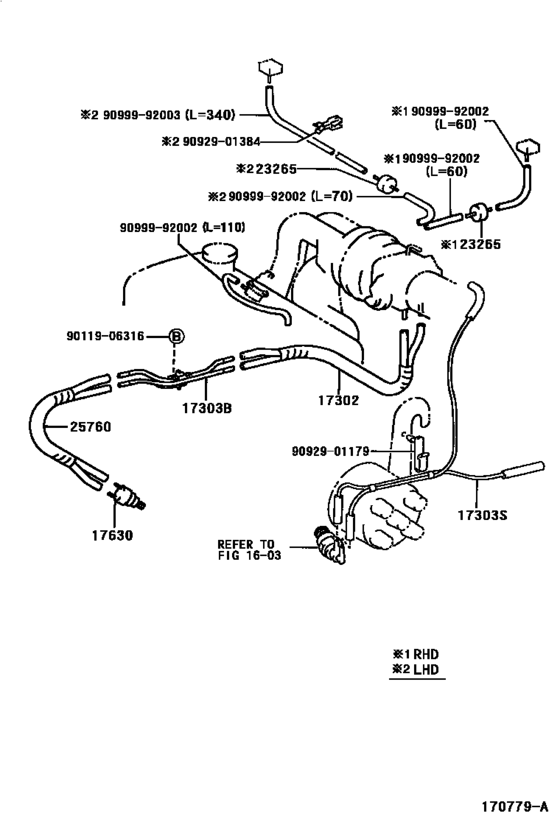

Vacuum Piping ([04.1997 - 10.1999] (9704-9910)4EFE) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17302
|
17302
17302-11100
Hose Sub-Assy, Air
[04.1997 - 10.1999] 4EFE..EE111..STD,TERRA |
17302-11100 |
— | ||
|
17303B
|
17303B
17303-11880 Pipe Sub-Assy, Air, No.1[04.1997 - 10.1999] 4EFE..EE111 |
17303-11880 |
US $36.25 |
||
|
17303S
|
17303S
17303-11800
Pipe Sub-Assy, Air, No.1
[04.1997 - 10.1999] 4EFE..EE111 |
17303-11800 |
— | ||
|
17630
|
17630
17630-11060
Valve Assy, Air Control
[04.1997 - 10.1999] 4EFE..EE111 |
17630-11060 |
— | ||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[04.1997 - 10.1999] 4AFE..AE111; 4EFE..EE111 |
90917-11030 |
US $8.56 |
||
|
25760
|
25760
25760-11260
Hose Assy, Vacuum Transmitting
[04.1997 - 10.1999] 4EFE..EE111..STD,TERRA |
25760-11260 |
— | ||
|
9011906316
|
9011906316
90119-06316 New Genuine Part |
90119-06316 |
US $1.75 |
||
|
9092901179
|
9092901179
90929-01179 New Genuine Part |
90929-01179 |
US $3.06 |
||
|
9092901384
|
9092901384
90929-01384 New Genuine Part |
90929-01384 |
US $4.37 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— |
