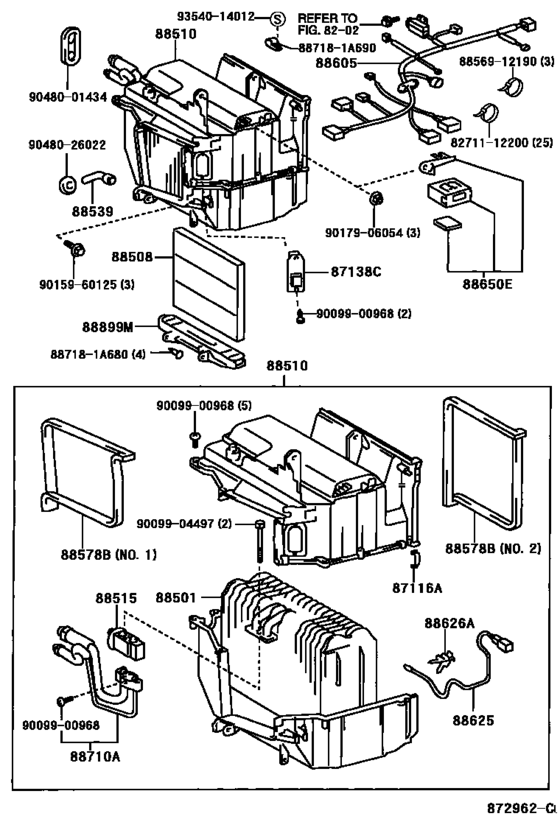

Heating & Air Conditioning - Cooler Unit ([09.1998 - ] (9809- )UKP..RHD) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-12140
Resistor, Heater Blower
[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
87138-12140 |
— | ||
|
88501
|
88501
88501-02030
Evaporator Sub-Assy, Cooler, No.1
[09.1998 - 07.2000] AE111,EE111,WZE110,ZZE11#..UKP..RHD |
88501-02030 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-02031
Evaporator Sub-Assy, Cooler, No.1
[09.1998 - 07.2000] AE111,EE111,WZE110,ZZE11#..UKP..RHD |
88501-02031 |
— | ||
|
88508
|
88508
88508-02010
Filter Sub-Assy, Clean Air
[09.1998 - 04.1999] AE111,EE111..UKP |
88508-02010 |
— | ||
| replacement | |||||
|
88508
|
88508
88508-02020
Filter Sub-Assy, Clean Air
[09.1998 - 04.1999] AE111,EE111..UKP |
88508-02020 |
— | ||
|
88508
|
88508
88508-02020
Filter Sub-Assy, Clean Air
[04.1999 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
88508-02020 |
— | ||
|
88510
|
88510
88510-02100
Unit Assy, Cooler
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..RHD |
88510-02100 |
— | ||
|
88515
|
88515
88515-16050 Valve, Cooler Expansion[09.1998 - 11.1999] AE111,EE111..UKP |
88515-16050 |
US $141.23 |
||
| replacement | |||||
|
88515
|
88515
88515-48040 Valve, Cooler Expansion[09.1998 - 11.1999] AE111,EE111..UKP |
88515-48040 |
US $146.88 |
||
|
88539
|
88539
88539-12160
Hose, Cooler Unit Drain, No.1
[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
88539-12160 |
— | ||
|
88578B
|
88578B
88578-12490
Packing, Cooling Unit, No.2
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP;CDE110,WZE110,ZZE11#..JPP..LHD NO.1 |
88578-12490 |
— | ||
|
88578B
|
88578B
88578-20470
Packing, Cooling Unit, No.1
[09.1998 - 11.2001] ZZE11#..RHD;CDE110,WZE110;AE111,EE111..UKP;ZZE11#..UKP..LHD NO.2 |
88578-20470 |
— | ||
|
88605
|
88605
88605-02080
Harness Sub-Assy, Cooler Wiring, No.1
[09.1998 - 11.1999] EE111..UKP..RHD |
88605-02080 |
— | ||
|
88625
|
88625
88625-02020
Thermistor, Cooler, No.1
[09.1998 - 11.1999] AE111,EE111..UKP |
88625-02020 |
— | ||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
88626-28010 |
— | ||
|
88650E
|
88650E
88650-02190
Amplifier Assy, Air Conditioner, No.1
[09.1998 - 11.2001] EE111,ZZE11#..UKP |
88650-02190 |
— | ||
|
88710A
|
88710A
88710-02090
Tube Assy, Air Conditioner
[09.1998 - 07.2000] AE111,EE111,WZE110,ZZE11#..UKP..RHD |
88710-02090 |
— | ||
| replacement | |||||
|
88710A
|
88710A
88710-02091
Tube Assy, Air Conditioner
[09.1998 - 07.2000] AE111,EE111,WZE110,ZZE11#..UKP..RHD |
88710-02091 |
— | ||
|
88899M
|
88899M
88899-02020 Plate, Cover(For Air Filter)[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..RHD |
88899-02020 |
US $13.40 |
||
|
887181A680
|
887181A680
88718-1A680
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A680 |
— | ||
|
887181A690
|
887181A690
88718-1A690
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A690 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8856912190
|
8856912190
88569-12190
Clamp (for Cooler Relay)
|
88569-12190 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904497
|
9009904497
90099-04497 BOLT |
90099-04497 |
from US $2.57 |
||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9048001434
|
9048001434
90480-01434 Grommet, (For Cooler Pipe) |
90480-01434 |
US $4.54 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
