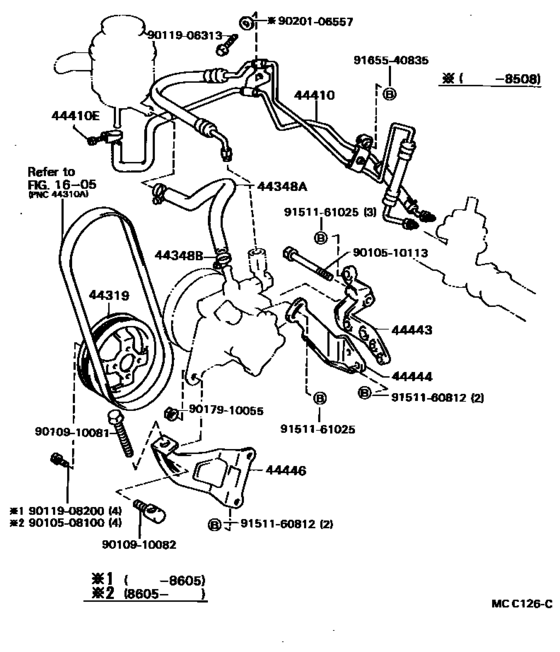

Power Steering Tube ([05.1985 - ] (8505- )EE80..DX,FXD,FXL,GL) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- DX
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44319
|
44319
88451-12030
Pulley, Crankshaft, No.2
[05.1985 - 04.1986] EE80..DX,FXD,FXL,GL |
88451-12030 |
— | ||
|
44319
|
44319
88451-12031
Pulley, Vane Pump Drive
[04.1986 - 04.1987] EE80..DX,FXD,FXL,GL |
88451-12031 |
— | ||
|
44348A
|
44348A
44348-12050 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44348-12050 |
US $20.68 |
||
|
44348B
|
44348B
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[05.1985 - 04.1987] CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
90460-26001 |
US $9.44 |
||
|
44410
|
44410
44410-12210 Tube Assy, Pressure FeedPRESSURE FEED [05.1985 - 08.1985] EE80..DX,FXD,FXL,GL |
44410-12210 |
US $380.02 |
||
|
44410
|
44410
44410-12211 Tube Assy, Pressure FeedPRESSURE FEED [08.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44410-12211 |
US $407.68 |
||
|
44410E
|
44410E
90460-01001 Clamp, Oil Cooler Hose[05.1985 - 04.1987] CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
90460-01001 |
US $9.28 |
||
|
44443
|
44443
44443-10010 Bracket, Pump[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44443-10010 |
US $52.42 |
||
|
44444
|
44444
44444-10010 Stay, Pump, Rear[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44444-10010 |
US $38 |
||
|
44446
|
44446
44446-10010 Strut, Adjusting[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44446-10010 |
US $21.99 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
||
|
9010510113
|
9010510113
90105-10113 BOLT |
90105-10113 |
US $1.22 |
||
|
9010910081
|
9010910081
90109-10081
New Genuine Part
|
90109-10081 |
— | ||
|
9010910082
|
9010910082
90109-10082
New Genuine Part
|
90109-10082 |
— | ||
|
9011906313
|
9011906313
90119-06313 New Genuine Part |
90119-06313 |
US $1.60 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
|
9017910055
|
9017910055
90179-10055 NUT |
90179-10055 |
US $2.62 |
||
|
9020106557
|
9020106557
90201-06557 Washer, Plate (For 2Nd Coast Brake Piston) |
90201-06557 |
US $0.96 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9151161025
|
9151161025
91511-61025
New Genuine Part
|
91511-61025 |
— | ||
| replacement | |||||
|
9151161025
|
9151161025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $1.01 |
||
|
9165540835
|
9165540835
91655-40835 New Genuine Part |
91655-40835 |
US $2.48 |
||
| replacement | |||||
|
9165540835
|
9165540835
91651-40832 New Genuine Part |
91651-40832 |
from US $2.97 |
||
