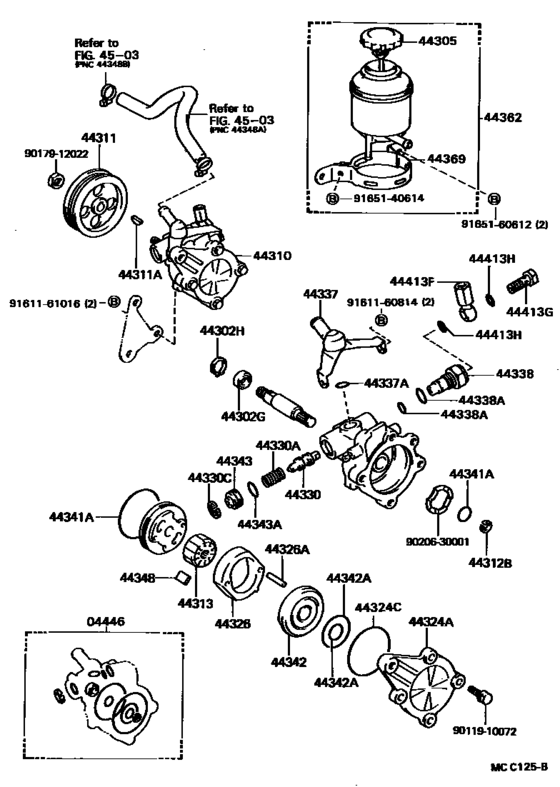

Vane Pump & Reservoir (Power Steering) ([05.1985 - ] (8505- )EE80..DX,FXD,FXL,GL) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- DX
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-12030 Gasket Kit, Power Steering Pump[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
04446-12030 |
US $20.82 |
||
|
44302G
|
44302G
90311-18008 Seal, Oil, No.2(For Vane Pump Housing)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
90311-18008 |
US $8.64 |
||
|
44302H
|
44302H
90521-32001 Ring, Snap, No.1(For Vane Pump Housing)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
90521-32001 |
US $7.28 |
||
|
44305
|
44305
44305-32010 Cap Sub-Assy, Vane Pump Oil Reservoir[05.1985 - 04.1987] CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
44305-32010 |
US $20.97 |
||
|
44310
|
44310
44320-12130 Pump Assy, VaneVANE [05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44320-12130 |
US $1,110.93 |
||
|
44311
|
44311
44311-10010 Pulley, Vane Pump[05.1985 - 04.1986] EE80..DX,FXD,FXL,GL |
44311-10010 |
US $74.26 |
||
| replacement | |||||
|
44311
|
44311
44311-10021 Pulley, Vane Pump[05.1985 - 04.1986] EE80..DX,FXD,FXL,GL |
44311-10021 |
US $74.26 |
||
|
44311
|
44311
44311-10011 Pulley, Vane Pump[04.1986 - 04.1987] EE80..DX,FXD,FXL,GL |
44311-10011 |
US $74.26 |
||
|
44311A
|
44311A
90280-05008 Key, Woodruff(For Distributor Drive Gear)[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
90280-05008 |
US $3.52 |
||
|
44312B
|
44312B
90520-10003 Ring, Snap, No.1(For Vane Pump Shaft)[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
90520-10003 |
US $1.22 |
||
|
44313
|
44313
44313-12010
Rotor, Vane Pump
[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク無し,NO MARK |
44313-12010 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22040 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク無し,NO MARK |
44313-22040 |
US $108.33 |
||
|
44313
|
44313
44313-12020
Rotor, Vane Pump
[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク １,MARK 1 |
44313-12020 |
— | ||
| replacement | |||||
|
44313
|
44313
44313-22050 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク １,MARK 1 |
44313-22050 |
US $101.34 |
||
|
44313
|
44313
44313-12030 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク ２,MARK 2 |
44313-12030 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22060 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク ２,MARK 2 |
44313-22060 |
US $103.38 |
||
|
44313
|
44313
44313-12040 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク ３,MARK 3 |
44313-12040 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22070 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク ３,MARK 3 |
44313-22070 |
US $103.38 |
||
|
44313
|
44313
44313-12050 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク ４,MARK 4 |
44313-12050 |
US $106.29 |
||
| replacement | |||||
|
44313
|
44313
44313-22080 Rotor, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX マーク ４,MARK 4 |
44313-22080 |
US $103.38 |
||
|
44324A
|
44324A
44324-10010 Housing, Pump, Rear[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44324-10010 |
US $14.56 |
||
|
44324C
|
44324C
90301-63002 Ring, O, No.1(For Vane Pump Housing)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
90301-63002 |
US $4.95 |
||
|
44326
|
44326
44325-12060 Ring, Cam(For Vane Pump)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL マーク無し,NO MARK |
44325-12060 |
US $125.22 |
||
|
44326
|
44326
44325-12070 Ring, Cam(For Vane Pump)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL マーク １,MARK 1 |
44325-12070 |
US $125.22 |
||
|
44326
|
44326
44325-12080 Ring, Cam(For Vane Pump)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL マーク ２,MARK 2 |
44325-12080 |
US $125.22 |
||
|
44326
|
44326
44325-12090 Ring, Cam(For Vane Pump)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL マーク ３,MARK 3 |
44325-12090 |
US $125.22 |
||
|
44326
|
44326
44325-12100 Ring, Cam(For Vane Pump)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL マーク ４,MARK 4 |
44325-12100 |
US $125.22 |
||
|
44326A
|
44326A
90250-05008 Pin, Straight(For Vane Pump Cam Ring)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL 長さ＝２５，外径＝５．０,L=25 |
90250-05008 |
US $3.20 |
||
|
44326A
|
44326A
90250-05017 Pin, Straight(For Vane Pump Cam Ring)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL 長さ＝４３．５，外径＝５．０,L=43.5 |
90250-05017 |
US $4.66 |
||
|
44330
|
44330
44330-12070 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ａ,MARK A |
44330-12070 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-12071 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ａ,MARK A |
44330-12071 |
US $115.02 |
||
|
44330
|
44330
44330-12080 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｂ,MARK B |
44330-12080 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-12081 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｂ,MARK B |
44330-12081 |
US $115.02 |
||
|
44330
|
44330
44330-12090 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｃ,MARK C |
44330-12090 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-12091 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｃ,MARK C |
44330-12091 |
US $115.02 |
||
|
44330
|
44330
44330-12100 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｄ,MARK D |
44330-12100 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-12101 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｄ,MARK D |
44330-12101 |
US $115.02 |
||
|
44330
|
44330
44330-12110 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｅ,MARK E |
44330-12110 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-12111 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｅ,MARK E |
44330-12111 |
US $115.02 |
||
|
44330
|
44330
44330-12120 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｆ,MARK F |
44330-12120 |
US $106.29 |
||
| replacement | |||||
|
44330
|
44330
44330-12121 Valve Assy, Flow Control[05.1985 - 04.1987] AE8#,EE80..DX,FXD,FXG,FXL,FXR,GL,SE,ZX マーク Ｆ,MARK F |
44330-12121 |
US $115.02 |
||
|
44330A
|
44330A
90501-12103 Spring, Compression(For Flow Control Valve)[07.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
90501-12103 |
US $2.56 |
||
|
44330A
|
44330A
90501-12447
Spring, Compression(For Flow Control Valve)
[05.1985 - 07.1985] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX |
90501-12447 |
— | ||
|
44330C
|
44330C
96151-02200 Ring(For Clutch Master Cylinder Reservoir)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
96151-02200 |
US $4.02 |
||
|
44337
|
44337
44337-12040 Union, Power Steering Suction PortPOWER STEERING SUCTION PORT [05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44337-12040 |
US $26.64 |
||
|
44337A
|
44337A
96711-19013 Ring, O(For Power Steering Suction Port)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
96711-19013 |
US $3.84 |
||
|
44338
|
44338
44308-32011 Union, Pressure Port[05.1985 - 07.1985] EE80..DX,FXD,FXL,GL |
44308-32011 |
US $21.84 |
||
|
44338
|
44338
44308-32013 Union Sub-Assy, Pressure Port[07.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44308-32013 |
US $60.42 |
||
|
44338A
|
44338A
90301-22001 Ring, O(For Pressure Port Union)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL 外径＝２５．５，内径＝２２．５,OD=25.5 |
90301-22001 |
US $9.44 |
||
|
44338A
|
44338A
96711-19014 O-Ring[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL 外径＝１７．０，内径＝１３．０,OD=17.6 |
96711-19014 |
from US $2.34 |
||
|
44341A
|
44341A
90301-21001
Ring, O(For Vane Pump Front Side Plate)
[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL INNER |
90301-21001 |
— | ||
|
44341A
|
44341A
90301-56002
Ring, O(For Vane Pump Front Side Plate)
[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL OUTER |
90301-56002 |
— | ||
|
44342
|
44342
44342-22010 Plate, Vane Pump Side, Rear[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44342-22010 |
US $39.31 |
||
| replacement | |||||
|
44342
|
44342
44342-30020
Plate, Vane Pump Side, Rear
[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44342-30020 |
— | ||
|
44342A
|
44342A
90301-13004
Ring, O(For Vane Pump Side Plate Rear)
[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL INNER |
90301-13004 |
— | ||
|
44342A
|
44342A
90301-30004
Ring, O(For Vane Pump Side Plate Rear)
[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL OUTER |
90301-30004 |
— | ||
|
44343
|
44343
44343-12030 Seat, Flow Control Spring[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44343-12030 |
US $16.02 |
||
|
44343A
|
44343A
96711-19019 Ring, O(For Vane Pump Union)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
96711-19019 |
from US $2.42 |
||
|
44348
|
44348
44345-12010 Plate, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ＝１４．９９７,L=14.996-14.998,ROTOR NO MARK |
44345-12010 |
US $10.56 |
||
|
44348
|
44348
44345-12020 Plate, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ＝１４．９９５,L=14.994-14.996,ROTOR MARK 1 |
44345-12020 |
US $6.12 |
||
|
44348
|
44348
44345-12030 Plate, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ＝１４．９９３,L=14.992-14.994,ROTOR MARK 2 |
44345-12030 |
US $6.12 |
||
|
44348
|
44348
44345-12040 Plate, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ＝１４．９９１,L=14.990-14.992,ROTOR MARK 3 |
44345-12040 |
US $6.12 |
||
|
44348
|
44348
44345-12050 Plate, Vane Pump[05.1985 - 04.1987] AE8#,CE80,EE80..DX,FXD,FXG,FXL,FXR,FXT,GL,GT,SE,ZX 長さ＝１４．９８９,L=14.988-14.990,ROTOR MARK 4 |
44345-12050 |
US $6.12 |
||
|
44362
|
44362
44360-12020 Reservoir, Oil(For Vane Pump)[05.1985 - 04.1987] CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
44360-12020 |
US $136.86 |
||
|
44369
|
44369
44369-20030 Bracket, Oil Reservoir, No.1[05.1985 - 04.1987] CE80,EE80..DX,FXD,FXG,FXL,GL,SE |
44369-20030 |
US $39.60 |
||
|
44413F
|
44413F
44413-12050 Tube, Pressure Feed, No.2PRESSURE FEED, NO.2 [05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
44413-12050 |
US $38 |
||
|
44413G
|
44413G
90401-16005 Bolt, Union(For Pressure Feed Tube)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
90401-16005 |
US $21.56 |
||
| replacement | |||||
|
44413G
|
44413G
90401-16008 Bolt, Union(For Pressure Feed Tube)[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
90401-16008 |
from US $9.76 |
||
|
44413H
|
44413H
90430-16242 Gasket, W/head Straight Screw Plug[05.1985 - 04.1987] EE80..DX,FXD,FXL,GL |
90430-16242 |
from US $0.88 |
||
|
9011910072
|
9011910072
90119-10072 New Genuine Part |
90119-10072 |
US $2.56 |
||
|
9017912022
|
9017912022
90179-12022 Nut(For Vane Pump Pulley) |
90179-12022 |
US $5.92 |
||
|
9020630001
|
9020630001
90206-30001 New Genuine Part |
90206-30001 |
US $4.22 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9161161016
|
9161161016
91611-61016
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-61016 |
— | ||
| replacement | |||||
|
9161161016
|
9161161016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
