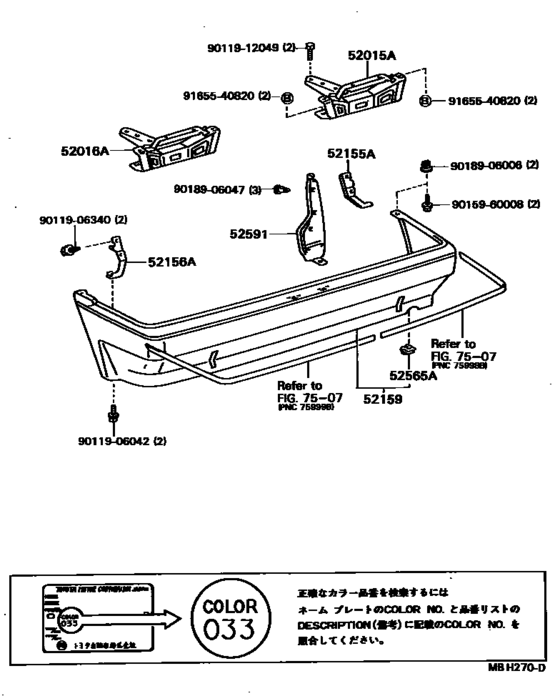

Rear Bumper & Bumper Stay ([10.1984 - ] (8410- )3D,5D2) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- FXL
- ENGINE
- 2ELU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 3FC
- No.of Doors
- 3D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52015A
|
52015A
52015-12141
Arm Sub-Assy, Rear Bumper, Rh
[05.1985 - 04.1987] AE8#,CE80,EE80..3D,5D2 |
52015-12141 |
— | ||
|
52016A
|
52016A
52016-12141
Arm Sub-Assy, Rear Bumper, Lh
[05.1985 - 04.1987] AE8#,CE80,EE80..3D,5D2 |
52016-12141 |
— | ||
|
52155A
|
52155A
52155-12130
Support, Rear Bumper Side, Rh
[10.1984 - 04.1987] AE81,82,CE80,EE80..3D,5D2 |
52155-12130 |
— | ||
|
52156A
|
52156A
52156-12110
Support, Rear Bumper Side, Lh
[10.1984 - 04.1987] AE81,82,CE80,EE80..3D,5D2 |
52156-12110 |
— | ||
|
52159
|
52159
52159-12120-02
Cover, Rear Bumper
[05.1985 - 04.1987] AE82..5D2 RED,RED/BLACK,3E6; AE81,CE80,EE80..FXG,FXL RED,RED/BLACK,3E6 |
52159-12120-02 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-12280 Cover, Rear BumperREAR BUMPER [05.1985 - 04.1987] AE82..5D2 RED,RED/BLACK,3E6; AE81,CE80,EE80..FXG,FXL RED,RED/BLACK,3E6 |
52159-12280 |
US $468.83 |
||
|
52159
|
52159
52159-12120-03 Cover, Rear Bumper[05.1985 - 05.1986] AE82..5D2 SILVER-M,SILVER/BLACK,147; AE81,CE80,EE80..FXG,FXL SILVER-M,SILVER/BLACK,147 |
52159-12120-03 |
US $729.46 |
||
| replacement | |||||
|
52159
|
52159
52159-12280 Cover, Rear BumperREAR BUMPER [05.1985 - 05.1986] AE82..5D2 SILVER-M,SILVER/BLACK,147; AE81,CE80,EE80..FXG,FXL SILVER-M,SILVER/BLACK,147 |
52159-12280 |
US $468.83 |
||
|
52159
|
52159
52159-12120-05
Cover, Rear Bumper
[05.1985 - 05.1986] AE81,CE80,EE80..FXG,FXL LIGHT BEIGE-M,BEIGE/BLACK,4D2 |
52159-12120-05 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-12280 Cover, Rear BumperREAR BUMPER [05.1985 - 05.1986] AE81,CE80,EE80..FXG,FXL LIGHT BEIGE-M,BEIGE/BLACK,4D2 |
52159-12280 |
US $468.83 |
||
|
52159
|
52159
52159-12120-08 Cover, Rear BumperREAR BUMPER [05.1985 - 04.1987] AE82..5D2 WHITE,WHITE/BLACK,041; AE81,CE80,EE80..FXG,FXL WHITE,WHITE/BLACK,041 |
52159-12120-08 |
US $729.46 |
||
|
52159
|
52159
52159-12120-15
Cover, Rear Bumper
[05.1986 - 04.1987] AE81,CE80,EE80..FXG,FXL LIGHT BEIGE-M,BEIGE/BLACK,4G8 |
52159-12120-15 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-12280 Cover, Rear BumperREAR BUMPER [05.1986 - 04.1987] AE81,CE80,EE80..FXG,FXL LIGHT BEIGE-M,BEIGE/BLACK,4G8 |
52159-12280 |
US $468.83 |
||
|
52159
|
52159
52159-12120-23
Cover, Rear Bumper
[05.1986 - 04.1987] AE82..5D2 SILVER-M,SILVER/BLACK,164; AE81,CE80,EE80..FXG,FXL SILVER-M,SILVER/BLACK,164 |
52159-12120-23 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-12280 Cover, Rear BumperREAR BUMPER [05.1986 - 04.1987] AE82..5D2 SILVER-M,SILVER/BLACK,164; AE81,CE80,EE80..FXG,FXL SILVER-M,SILVER/BLACK,164 |
52159-12280 |
US $468.83 |
||
|
52159
|
52159
52159-12280 Cover, Rear BumperREAR BUMPER [05.1985 - 05.1986] AE8#,CE80,EE80..FXD,FXL,FXR,FXT BLACK(041,147,3E6,4D2);BLACK(4G5,6J4,8D4) |
52159-12280 |
US $468.83 |
||
|
52565A
|
52565A
52565-12040 Retainer, Front Bumper, Lower Center[04.1985 - 04.1987] AE81,82,CE80,EE80..3D,5D2,5D3 |
52565-12040 |
US $4.32 |
||
|
52591
|
52591
52591-12030 Seal, Rear Bumper Side, RhREAR BUMPER SIDE, RH [10.1984 - 04.1987] AE81,82,CE80,EE80..3D,5D2 |
52591-12030 |
US $10.05 |
||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.60 |
||
|
9011912049
|
9011912049
90119-12049 New Genuine Part |
90119-12049 |
US $3.64 |
||
|
9015960008
|
9015960008
90159-60008 SCREW |
90159-60008 |
US $1.12 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906047
|
9018906047
90189-06047 GROMMET |
90189-06047 |
from US $0.64 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
