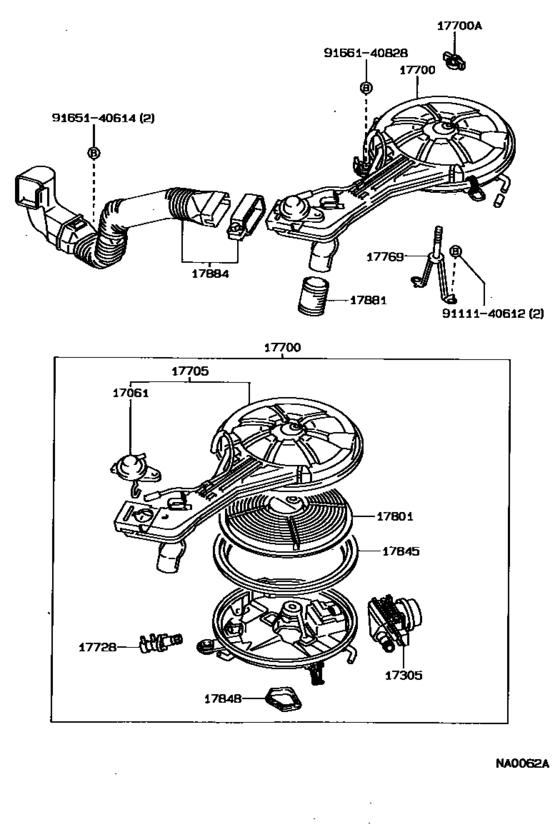

Air Cleaner ([05.1987 - 05.1989] (8705-8905)2E) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE90
- grade
- TX
- body
- 4D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-10010
Diaphragm Sub-Assy
[05.1989 - 08.1989] 2E..EE90 |
17061-10010 |
— | ||
|
17061
|
17061
17061-11010 Diaphragm Sub-Assy[05.1987 - 05.1989] 2E..EE90,96,97 |
17061-11010 |
US $47.47 |
||
|
17305
|
17305
17350-11011 Valve Sub-Assy, Reed[05.1987 - 04.1989] 2E..EE90,97 |
17350-11011 |
US $145.60 |
||
|
17305
|
17305
17350-11012 Valve Sub-Assy, Reed[04.1989 - 05.1989] 2E..EE90,97 |
17350-11012 |
US $145.60 |
||
|
17305
|
17305
17350-11050 Valve Sub-Assy, Reed[05.1989 - 08.1989] 2E..EE90 |
17350-11050 |
US $173.26 |
||
|
17700
|
17700
17700-11350 Cleaner Assy, Air[05.1987 - 04.1989] 2E..EE90,97 |
17700-11350 |
US $460.10 |
||
| replacement | |||||
|
17700
|
17700
17700-11351 Cleaner Assy, Air[05.1987 - 04.1989] 2E..EE90,97 |
17700-11351 |
US $460.10 |
||
|
17700
|
17700
17700-11351 Cleaner Assy, Air[04.1989 - 05.1989] 2E..EE90,97 |
17700-11351 |
US $460.10 |
||
|
17700
|
17700
17700-11460 Cleaner Assy, Air[05.1989 - 09.1991] 2E..EE90;2E..EE97..L |
17700-11460 |
US $496.50 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[05.1987 - 08.1991] 4AF,5AF..AE91,95; 2E,3E..EE9# |
90175-06010 |
— | ||
|
17705
|
17705
17705-11170 Cap Sub-Assy, Air Cleaner[05.1987 - 05.1989] 2E..EE90,96,97 |
17705-11170 |
US $260.62 |
||
| replacement | |||||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[05.1987 - 05.1989] 2E..EE90,96,97 |
17705-11360 |
— | ||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[05.1989 - 08.1989] 2E..EE90 |
17705-11360 |
— | ||
|
17728
|
17728
17728-11030 Valve, Thermostatic[05.1989 - 09.1991] 2E..EE90;2E..EE97..L |
17728-11030 |
US $90.27 |
||
|
17728
|
17728
17728-11050 Valve, Thermostatic[05.1987 - 05.1989] 2E..EE90,97 |
17728-11050 |
US $90.27 |
||
|
17769
|
17769
17769-11020
Support, Air Cleaner
[05.1987 - 05.1989] 2E..EE90,96,97 |
17769-11020 |
— | ||
|
17801
|
17801
17801-10030
Element Sub-Assy, Air Cleaner Filter
[05.1987 - 09.1991] 2E..EE90,96,97 |
17801-10030 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[05.1987 - 09.1991] 2E..EE90,96,97 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[05.1987 - 09.1991] 2E,3E..EE9# |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[05.1989 - 08.1989] 2E..EE90 |
17848-10021 |
US $5.24 |
||
|
17848
|
17848
17848-15010
Gasket, Air Cleaner To Carburetor
[05.1987 - 05.1989] 2E,3E..EE9# |
17848-15010 |
— | ||
|
17881
|
17881
17881-10030
Hose, Air Cleaner, No.1
[05.1987 - 02.1988] 2E..EE90,96,97 |
17881-10030 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[05.1987 - 02.1988] 2E..EE90,96,97 |
17881-10033 |
US $4.89 |
||
|
17881
|
17881
17881-10031
Hose, Air Cleaner, No.1
[02.1988 - 05.1989] 2E..EE90,96,97 |
17881-10031 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[02.1988 - 05.1989] 2E..EE90,96,97 |
17881-10033 |
US $4.89 |
||
|
17881
|
17881
17881-10032
Hose, Air Cleaner, No.1
[12.1989 - 10.1991] 2E..EE90,96,97 |
17881-10032 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[12.1989 - 10.1991] 2E..EE90,96,97 |
17881-10033 |
US $4.89 |
||
|
17884
|
17884
17880-10030 Hose, Air Cleaner, No.4[05.1989 - 06.1991] 2E..EE90;2E..EE97..L |
17880-10030 |
US $50.38 |
||
|
17884
|
17884
17880-14070 Hose, Air Cleaner, No.4[05.1987 - 05.1989] 2E..EE90,96,97 |
17880-14070 |
US $74.95 |
||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9166140828
|
9166140828
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
