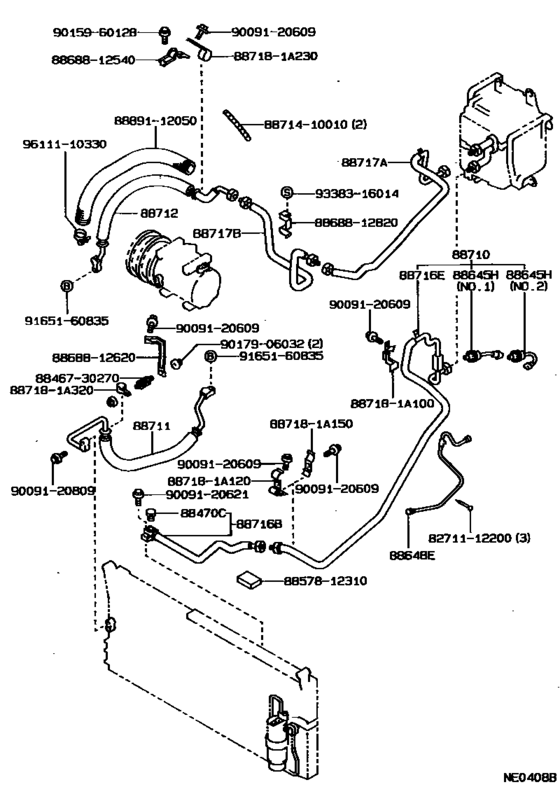

Heating & Air Conditioning - Cooler Piping ([05.1987 - ] (8705- )EE9#) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE90
- grade
- TX
- body
- 4D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88470C
|
88470C
88475-12020
Bolt, Fuse
[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE; CE90..DX,TX;AE91,95,CE96,97,EE90,97,98..DX,FXD,FXL,GL,STD,TX,XE |
88475-12020 |
— | ||
|
88645H
|
88645H
88645-12050
Switch, Pressure No.1
[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE ＮＯ．１; AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE ＮＯ．１ |
88645-12050 |
— | ||
|
88645H
|
88645H
88645-32020
Switch, Pressure No.1
[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE ＮＯ．２; AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE ＮＯ．２ |
88645-32020 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-16050
Switch, Pressure No.1
[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE ＮＯ．２; AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE ＮＯ．２ |
88645-16050 |
— | ||
|
88648E
|
88648E
88648-12410
Wiring, Cooler
[05.1987 - 09.1987] AE91,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
88648-12410 |
— | ||
|
88710
|
88710
88706-12040
Tube Assy, Air Conditioner
[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE; AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
88706-12040 |
— | ||
|
88711
|
88711
88711-12500 Hose, Cooler Refrigerant Discharge, No.1[05.1987 - 09.1991] EE96..3FC;EE90,97,98 |
88711-12500 |
US $179.09 |
||
| replacement | |||||
|
88711
|
88711
88711-1A250 Hose, Cooler Refrigerant Discharge, No.1[05.1987 - 09.1991] EE96..3FC;EE90,97,98 |
88711-1A250 |
US $91.73 |
||
|
88712
|
88712
88712-12610 Hose, Cooler Refrigerant Suction, No.1[05.1987 - 09.1991] EE96..3FC;EE90,97,98 |
88712-12610 |
US $179.09 |
||
| replacement | |||||
|
88712
|
88712
88712-1A300 Hose, Cooler Refrigerant Suction, No.1[05.1987 - 09.1991] EE96..3FC;EE90,97,98 |
88712-1A300 |
US $97.55 |
||
|
88716B
|
88716B
88726-12280
Pipe, Cooler Refrigerant Liquid, B
[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE; AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
88726-12280 |
— | ||
|
88716E
|
88716E
88726-12260 Pipe, Cooler Refrigerant Liquid, E[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE; AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
88726-12260 |
US $132.50 |
||
|
88717A
|
88717A
88717-12400
Pipe, Cooler Refrigerant Suction, A
[05.1987 - 05.1988] AE9#..FXG,FXGT,FXZI,G,GT,SE; AE91,95,EE90,97,98..DX,FXD,FXL,GL,TX,XE |
88717-12400 |
— | ||
|
88717B
|
88717B
88717-12490
Pipe, Cooler Refrigerant Suction, B
[05.1987 - 09.1987] AE91,EE9#..DX,FXD,FXL,GL,STD,TX,XE |
88717-12490 |
— | ||
|
887181A100
|
887181A100
88718-1A100
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A100 |
— | ||
|
887181A120
|
887181A120
88718-1A120
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A120 |
— | ||
|
887181A150
|
887181A150
88718-1A150
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A150 |
— | ||
|
887181A230
|
887181A230
88718-1A230
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A230 |
— | ||
|
887181A320
|
887181A320
88718-1A320
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A320 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.66 |
||
|
8846730270
|
8846730270
88467-30270 Cushion, Cooler Condenser, No.1 |
88467-30270 |
from US $1.75 |
||
|
8857812310
|
8857812310
88578-12310
Packing, Cooler Stabilizer Amplifier
|
88578-12310 |
— | ||
|
8868812540
|
8868812540
88688-12540
Bracket, Cooler Diaphragm
|
88688-12540 |
— | ||
|
8868812620
|
8868812620
88688-12620
Bracket, Cooler Diaphragm
|
88688-12620 |
— | ||
|
8868812820
|
8868812820
88688-12820
Bracket, Cooler Diaphragm
|
88688-12820 |
— | ||
|
8871410010
|
8871410010
88714-10010
Insulator(For Water By-Pass Hose)
|
88714-10010 |
— | ||
|
8889112050
|
8889112050
88891-12050
Packing (for Cooler)
|
88891-12050 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9009120621
|
9009120621
90091-20621
New Genuine Part
|
90091-20621 |
— | ||
|
9009120809
|
9009120809
90091-20809
New Genuine Part
|
90091-20809 |
— | ||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9338316014
|
9338316014
93383-16014
New Genuine Part
|
93383-16014 |
— | ||
|
9611110330
|
9611110330
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96111-10330 |
US $2.08 |
||
