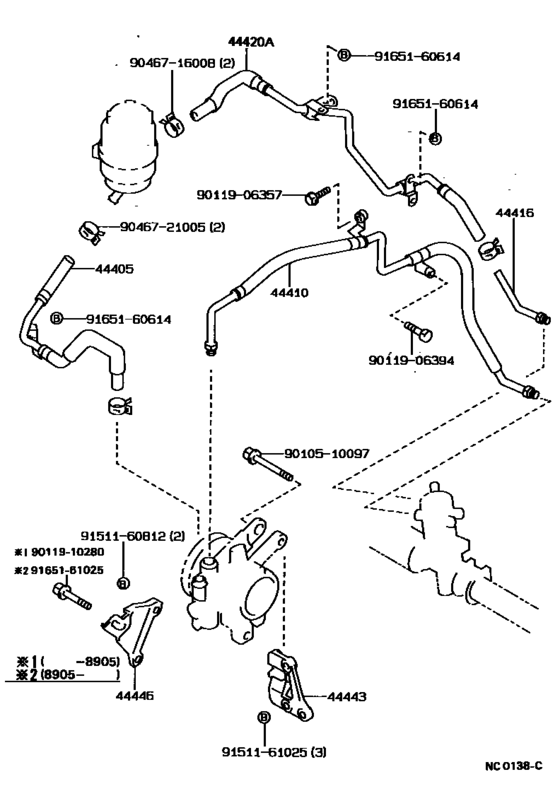

Power Steering Tube ([05.1987 - ] (8705- )EE90..FXD,FXL,TX,XE ; (8708- )EE96 ,97,98) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE90
- grade
- TX
- body
- 4D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44405
|
44405
44405-12031 Tube Sub-Assy, Oil Reservoir To Pump, No.1[05.1987 - 05.1989] EE90..TX; EE90..XE; EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL) |
44405-12031 |
US $109.20 |
||
|
44410
|
44410
44410-12280 Tube Assy, Pressure Feed[05.1987 - 05.1989] EE90..TX; EE90..XE; EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL) |
44410-12280 |
US $257.71 |
||
|
44416
|
44416
44416-12170 Tube, Return(For Steering Gear Outlet)[05.1987 - 05.1989] EE90..TX |
44416-12170 |
US $14.71 |
||
|
44420A
|
44420A
44420-12010 Tube Assy, Return[05.1987 - 05.1989] AE92; CE90..SE,TX,XE; EE90..TX; CE96,97,EE96,97,98..DX,GL; EE90..FXD,FXL,XE |
44420-12010 |
US $80.08 |
||
|
44443
|
44443
44443-12070
Bracket, Pump
[05.1987 - 05.1989] EE90..TX; EE97;EE90..FXD,FXL,XE |
44443-12070 |
— | ||
|
44446
|
44446
44446-12050
Strut, Adjusting
[05.1987 - 05.1989] EE90..TX; EE90..XE; EE9#..(3D,5D,V,WG)..(DX,FXD,FXL,GL) |
44446-12050 |
— | ||
|
9010510097
|
9010510097
90105-10097 Bolt(For Transaxle & Engine Setting) |
90105-10097 |
US $3.49 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9011906394
|
9011906394
90119-06394 BOLT WWASHER |
90119-06394 |
US $2.56 |
||
|
9011910280
|
9011910280
90119-10280 New Genuine Part |
90119-10280 |
US $4.80 |
||
|
9046716008
|
9046716008
90467-16008
Clip(For Oil Return Hose)
|
90467-16008 |
— | ||
| replacement | |||||
|
9046716008
|
9046716008
90467-16019 Clip(For Return No.1) |
90467-16019 |
US $4.80 |
||
|
9046721005
|
9046721005
90467-21005
Clip(For Suction Hose No.1)
|
90467-21005 |
— | ||
| replacement | |||||
|
9046721005
|
9046721005
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $5.85 |
||
|
9151160812
|
9151160812
91511-60812
BOLT
|
91511-60812 |
— | ||
| replacement | |||||
|
9151160812
|
9151160812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
9151161025
|
9151161025
91511-61025
New Genuine Part
|
91511-61025 |
— | ||
| replacement | |||||
|
9151161025
|
9151161025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $1.01 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
