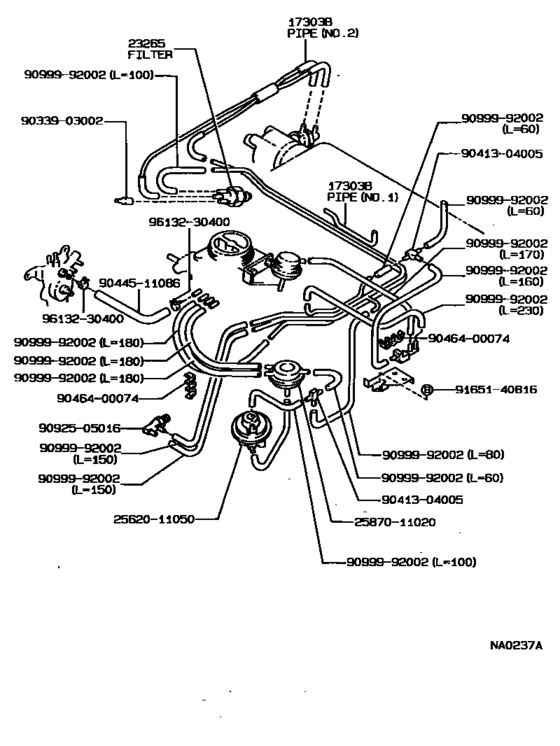

Vacuum Piping ([08.1987 - 08.1989] (8708-8908)2E) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE90
- grade
- TX
- body
- 4D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11071 Pipe Sub-Assy, Air, No.1[05.1987 - 10.1987] 2E..EE90,97 |
17303-11071 |
US $91.73 |
||
|
17303B
|
17303B
17303-11072 Pipe Sub-Assy, Air, No.1[10.1987 - 05.1989] 2E..EE90,97 |
17303-11072 |
US $91.73 |
||
|
17303B
|
17303B
17303-11310 Pipe Sub-Assy, Air, No.1[05.1987 - 05.1989] 2E..EE97;2E..EE90..FXD,FXL,TX,XE ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) |
17303-11310 |
US $14.71 |
||
|
17303B
|
17303B
17303-11390 Pipe Sub-Assy, Air, No.1[05.1989 - 09.1991] 2E..EE90;2E..EE97..L NO.1 |
17303-11390 |
US $34.94 |
||
|
17303B
|
17303B
17303-11450 Pipe Sub-Assy, Air, No.1[05.1989 - 09.1991] 2E..EE97..L;2E..EE90..4F NO.2 |
17303-11450 |
US $8.01 |
||
|
23265
|
23265
90917-11021
Filter, Gas, No.1
[05.1989 - 09.1991] 4AFE..AE95..5F; 2E..EE90;2E..EE97..L ＮＯ．２ |
90917-11021 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[05.1989 - 09.1991] 4AFE..AE95..5F; 2E..EE90;2E..EE97..L ＮＯ．２ |
90917-11030 |
from US $8.56 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[05.1987 - 05.1989] 2E..EE90,97 |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1987 - 05.1989] 2E..EE90,97 |
90917-11027 |
from US $23.71 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1989 - 08.1989] 2E,3E..EE96,98; 2E..EE90..3FC ＮＯ．１; 2E..EE90..4F ＮＯ．１，ＡＩＳＩＮ; 4AGE,5AF..AE91,92 |
90917-11027 |
from US $23.71 |
||
|
2562011050
|
2562011050
25620-11050 Valve Assy, Egr |
25620-11050 |
US $270.82 |
||
|
2587011020
|
2587011020
25870-11020 Modulator Assy, Egr Vacuum |
25870-11020 |
US $100.46 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9044511086
|
9044511086
90445-11086 New Genuine Part |
90445-11086 |
US $11.50 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9092505016
|
9092505016
90925-05016
Valve, Bimetal Vacuum Switching, No.1
|
90925-05016 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.62 |
||
