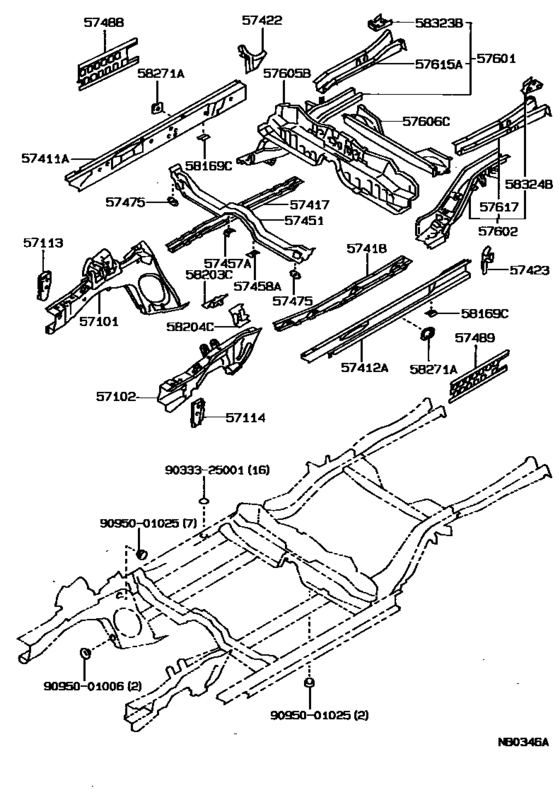

Floor Side Member ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- EE90
- grade
- FXL
- body
- 3D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57101
|
57101
57101-12350 Member Sub-Assy, Front Side, Rh[05.1987 - 05.1988] CE9#,EE9# |
57101-12350 |
US $446.99 |
||
| replacement | |||||
|
57101
|
57101
57101-12430 Member Sub-Assy, Front Side, Rh[05.1987 - 05.1988] CE9#,EE9# |
57101-12430 |
US $446.99 |
||
|
57101
|
57101
57101-12351 Member Sub-Assy, Front Side, Rh[05.1988 - 05.1989] CE9#,EE9# |
57101-12351 |
US $446.99 |
||
| replacement | |||||
|
57101
|
57101
57101-12430 Member Sub-Assy, Front Side, Rh[05.1988 - 05.1989] CE9#,EE9# |
57101-12430 |
US $446.99 |
||
|
57102
|
57102
57102-12360 Member Sub-Assy, Front Side, Lh[05.1988 - 08.1991] AE9#,EE9# |
57102-12360 |
US $438.26 |
||
|
57102
|
57102
57102-12370 Member Sub-Assy, Front Side, Lh[05.1987 - 05.1988] AE9#,EE9# |
57102-12370 |
US $446.99 |
||
| replacements | |||||
|
57102
|
57102
57102-12360 Member Sub-Assy, Front Side, Lh[05.1987 - 05.1988] AE9#,EE9# |
57102-12360 |
US $438.26 |
||
|
57102
|
57102
17883-16041 Hose, Air Cleaner, No.3[05.1987 - 05.1988] AE9#,EE9# |
17883-16041 |
US $66.54 |
||
|
57113
|
57113
57113-12110 Extension, Front Side Member, Rh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
57113-12110 |
US $4.95 |
||
|
57114
|
57114
57114-12110 Extension, Front Side Member, Lh[05.1987 - 08.1991] AE9#,CE9#,EE9# |
57114-12110 |
US $4.95 |
||
|
57411A
|
57411A
57411-12190 Member, Floor Side, Inner Rh[08.1987 - 05.1992] AE91,92,EE90..3D |
57411-12190 |
US $88.82 |
||
| replacement | |||||
|
57411A
|
57411A
57411-12180 Member, Floor Side, Inner RhFLOOR SIDE, INNER RH [08.1987 - 05.1992] AE91,92,EE90..3D |
57411-12180 |
US $85.90 |
||
|
57412A
|
57412A
57412-12190 Member, Floor Side, Inner Lh[08.1987 - 05.1992] AE91,92,EE90..3D |
57412-12190 |
US $88.82 |
||
| replacement | |||||
|
57412A
|
57412A
57412-12180 Member, Floor Side, Inner LhFLOOR SIDE, INNER LH [08.1987 - 05.1992] AE91,92,EE90..3D |
57412-12180 |
US $85.90 |
||
|
57417
|
57417
57417-12080 Reinforcement, Front Floor Under, Rh[05.1987 - 08.1991] AE91,92,CE90,96,97,EE9# |
57417-12080 |
US $23.44 |
||
|
57418
|
57418
57418-12040 Reinforcement, Front Floor Under, Lh[05.1987 - 08.1991] AE91,92,CE90,96,97,EE9# |
57418-12040 |
US $23.44 |
||
|
57422
|
57422
57422-12020 Plate, Floor Side Rail, Lh[05.1987 - 05.1992] AE91,92,EE90..3D |
57422-12020 |
US $7.72 |
||
|
57423
|
57423
57423-12020 Bracket, Front Floor Reinforcement, Rh[05.1987 - 05.1992] AE91,92,EE90..3D |
57423-12020 |
US $7.72 |
||
|
57451
|
57451
57451-12110 Member, Front Floor Cross[05.1987 - 05.1989] AE91,92,CE9#,EE9# |
57451-12110 |
US $88.82 |
||
| replacement | |||||
|
57451
|
57451
57451-12111 Member, Front Floor Cross[05.1987 - 05.1989] AE91,92,CE9#,EE9# |
57451-12111 |
US $88.82 |
||
|
57457A
|
57457A
57457-12020 Plate, Front Floor Crossmember, No.2 Rh[05.1987 - 08.1991] AE91,92,CE90,96,97,EE9# |
57457-12020 |
US $3.79 |
||
|
57458A
|
57458A
57458-12020 Plate, Front Floor Crossmember, No.2 Lh[05.1987 - 08.1991] AE91,92,CE90,96,97,EE9# |
57458-12020 |
US $3.79 |
||
|
57475
|
57475
57475-32010 Plate, Front Floor Crossmember[05.1987 - 08.1991] AE91,92,CE90,96,97,EE9# |
57475-32010 |
US $2.04 |
||
|
57488
|
57488
57488-12030
Reinforcement, Floor Side Member, No.2 Rh
[05.1987 - 05.1992] AE91,92,EE90..3D |
57488-12030 |
— | ||
|
57489
|
57489
57489-12030
Reinforcement, Floor Side Member, No.2 Lh
[05.1987 - 05.1992] AE91,92,EE90..3D |
57489-12030 |
— | ||
|
57601
|
57601
57601-12570 Member Sub-Assy, Rear Floor Side, Rh[05.1987 - 05.1989] AE91,EE90..FXD,FXL |
57601-12570 |
US $297.02 |
||
| replacement | |||||
|
57601
|
57601
57601-12790 Member Sub-Assy, Rear Floor Side, RhREAR FLOOR SIDE, RH [05.1987 - 05.1989] AE91,EE90..FXD,FXL |
57601-12790 |
US $294.11 |
||
|
57602
|
57602
57602-12470 Member Sub-Assy, Rear Floor Side, Lh[05.1987 - 05.1989] AE91,EE90..FXD,FXL |
57602-12470 |
US $297.02 |
||
| replacement | |||||
|
57602
|
57602
57602-12660 Member Sub-Assy, Rear Floor Side, LhREAR FLOOR SIDE, LH [05.1987 - 05.1989] AE91,EE90..FXD,FXL |
57602-12660 |
US $294.11 |
||
|
57605B
|
57605B
57605-12120 Member Sub-Assy, Rear Floor Cross, No.1[05.1987 - 05.1992] AE91,92,CE90,EE90 |
57605-12120 |
US $211.12 |
||
|
57606C
|
57606C
57606-12100 Member Sub-Assy, Rear Floor Cross, No.2[05.1987 - 05.1992] AE91,92,CE90,EE90 |
57606-12100 |
US $147.06 |
||
|
57615A
|
57615A
57615-12060
Member, Rear Floor Side, Rear Rh
[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
57615-12060 |
— | ||
| replacement | |||||
|
57615A
|
57615A
57615-12090
Member, Rear Floor Side, Rear Rh
[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
57615-12090 |
— | ||
|
57617
|
57617
57616-12060
Member, Rear Floor Side, Rear Lh
[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
57616-12060 |
— | ||
| replacement | |||||
|
57617
|
57617
57616-12090
Member, Rear Floor Side, Rear Lh
[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
57616-12090 |
— | ||
|
58169C
|
58169C
58169-12010 Patch, Front Floor Rear[05.1987 - 09.1988] AE95;AE91,92,EE90..3D |
58169-12010 |
US $2.18 |
||
|
58203C
|
58203C
58203-12030 Bracket Sub-Assy, Exhaust Pipe Mounting[05.1987 - 08.1991] AE91,92,CE90,96,97,EE9# |
58203-12030 |
US $26.50 |
||
|
58204C
|
58204C
58204-12010 Bracket Sub-Assy, Exhaust Pipe Mounting, Lh[05.1987 - 08.1991] AE91,92,CE90,96,97,EE9# |
58204-12010 |
US $26.50 |
||
|
58271A
|
58271A
58271-12050 Reinforcement, Belt Anchor To Floor Pan, No.3[05.1987 - 08.1991] AE9#,CE9#,EE9# |
58271-12050 |
US $19.80 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
