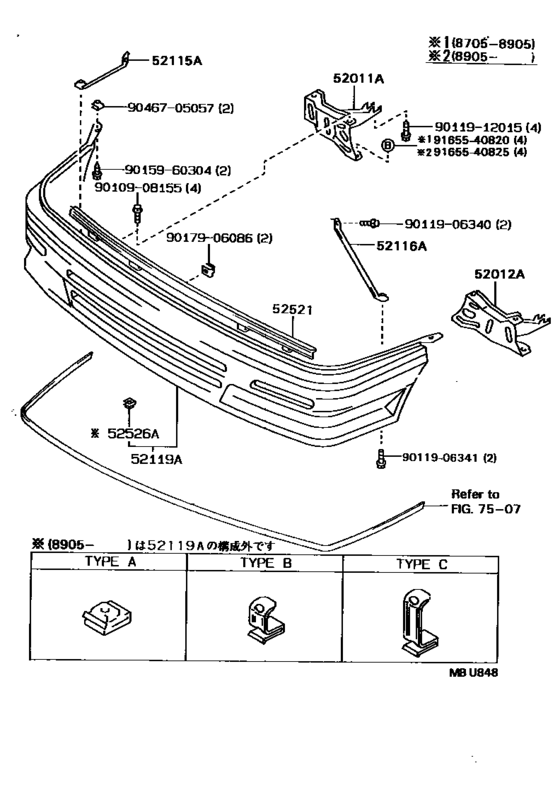

Front Bumper & Bumper Stay ([05.1987 - ] (8705- )3D,5D) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- EE90
- grade
- FXL
- body
- 3D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52011A
|
52011A
52011-12380
Arm Sub-Assy, Front Bumper, Rh
[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
52011-12380 |
— | ||
|
52012A
|
52012A
52012-12390
Arm Sub-Assy, Front Bumper, Lh
[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
52012-12390 |
— | ||
|
52115A
|
52115A
52115-12270 Support, Front Bumper Side, Rh[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
52115-12270 |
US $12 |
||
|
52116A
|
52116A
52116-12210 Support, Front Bumper Side, Lh[05.1987 - 05.1989] AE91,92,EE90..3D,5D |
52116-12210 |
US $11.94 |
||
|
52119A
|
52119A
52119-1A270 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..(3D,5D)..CBR |
52119-1A270 |
US $484.85 |
||
|
52119A
|
52119A
52119-1A310-02 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..FXG,FXL SUPER RED 2,3E5 |
52119-1A310-02 |
US $758.58 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A270 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..FXG,FXL SUPER RED 2,3E5 |
52119-1A270 |
US $484.85 |
||
|
52119A
|
52119A
52119-1A310-03 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..FXG,FXL GRAY M,168 |
52119-1A310-03 |
US $758.58 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A270 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..FXG,FXL GRAY M,168 |
52119-1A270 |
US $484.85 |
||
|
52119A
|
52119A
52119-1A310-05 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..FXG,FXL M BEIGE M,4H6 |
52119-1A310-05 |
US $758.58 |
||
| replacement | |||||
|
52119A
|
52119A
52119-1A270 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..FXG,FXL M BEIGE M,4H6 |
52119-1A270 |
US $484.85 |
||
|
52119A
|
52119A
52119-1A310-08 Cover, Front Bumper[05.1987 - 05.1989] AE91,EE90..FXG,FXL SUPER WHITE 2,040 |
52119-1A310-08 |
US $758.58 |
||
|
52526A
|
52526A
52565-12040 Retainer, Front Bumper, Lower Center[05.1987 - 05.1989] AE9#,CE9#,EE9# タイプ Ａ |
52565-12040 |
US $4.32 |
||
|
52526A
|
52526A
52565-12090 Retainer, Front Bumper, Lower No.1[05.1987 - 08.1987] AE9#,CE90,EE90 タイプ Ｂ |
52565-12090 |
US $9.03 |
||
|
9010908155
|
9010908155
90109-08155
New Genuine Part
|
90109-08155 |
— | ||
|
9011906340
|
9011906340
90119-06340 BOLT |
90119-06340 |
US $1.60 |
||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9011912015
|
9011912015
90119-12015
New Genuine Part
|
90119-12015 |
— | ||
| replacement | |||||
|
9011912015
|
9011912015
90119-12297 New Genuine Part |
90119-12297 |
US $4.32 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
US $1.92 |
||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
from US $1.93 |
||
|
9046705057
|
9046705057
90467-05057 New Genuine Part |
90467-05057 |
from US $3.49 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9165540825
|
9165540825
91655-40825
New Genuine Part
|
91655-40825 |
— | ||
| replacement | |||||
|
9165540825
|
9165540825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
