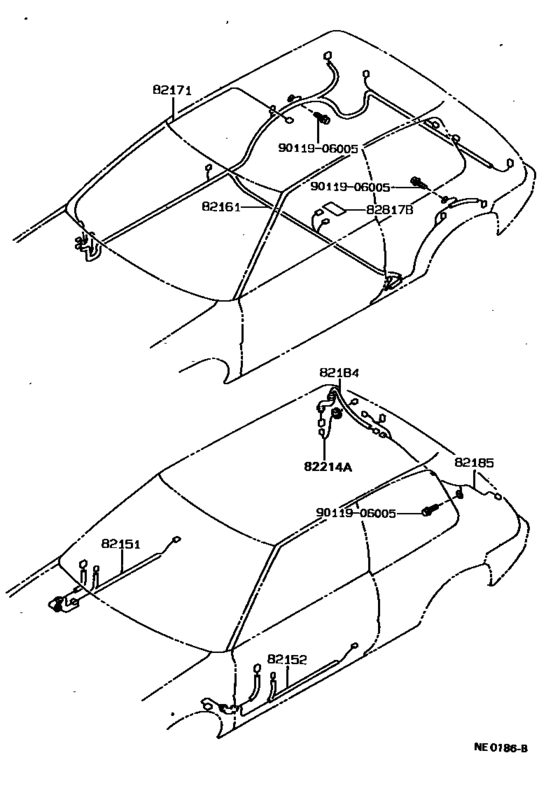

Wiring & Clamp ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- EE90
- grade
- FXL
- body
- 3D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82161
|
82161
82161-1A350 Wire, Floor[05.1987 - 05.1989] AE91,EE90..(3D,5D)..CBR |
82161-1A350 |
US $471.74 |
||
|
82171
|
82171
82171-12140 Wire, Roof, No.1[05.1987 - 05.1989] AE91,92..EFI; AE91,95,CE90,EE90..(3D,4D,5D)..(CBR,DSL) |
82171-12140 |
US $25.19 |
||
|
82184
|
82184
82184-12250 Wire, Back Door, No.1[05.1987 - 05.1989] AE91,92..FXGT,FXZI; AE91,EE90..FXG,FXL; EE90..FXD ｱﾘ(*RW) |
82184-12250 |
US $55.04 |
||
|
82185
|
82185
82185-12320 Wire, Back Door, No.2[05.1987 - 05.1992] AE91,92,EE90..FXGTV,FXL,FXV,FXVS |
82185-12320 |
US $31.16 |
||
|
82817B
|
82817B
82817-16100 Protector, Wiring Harness, No.1[05.1987 - 10.1987] AE9#,CE9#,EE9# |
82817-16100 |
US $5.53 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
