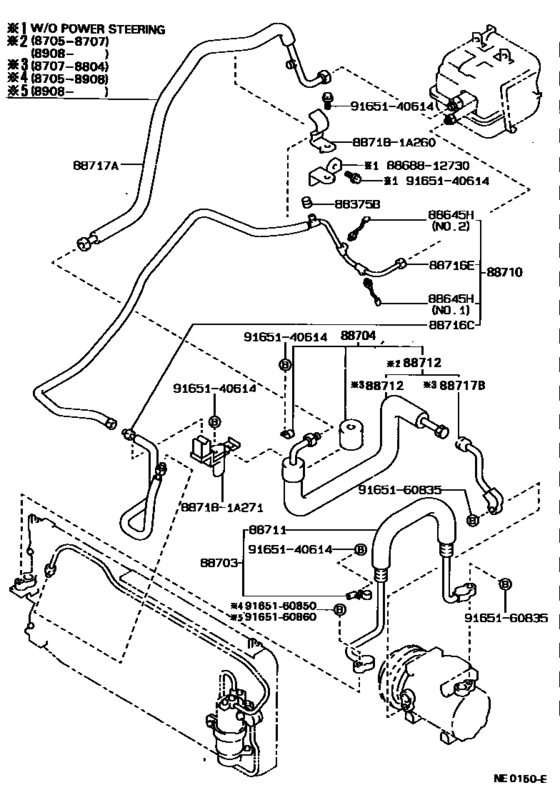

Heating & Air Conditioning - Cooler Piping ([05.1987 - ] MAKER OPT (8705- )EE9#..LHD) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- EE90
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88375B
|
88375B
88375-20010
Cap, Service Valve (For Cooler Pipe)
[05.1987 - 08.1988] AE9#,CE90,EE9#..GCC,GEN |
88375-20010 |
— | ||
|
88375B
|
88375B
88375-24010
Cap, Service Valve (For Cooler Pipe)
[11.1991 - 08.1993] AE92,CE90,EE90 |
88375-24010 |
— | ||
|
88645H
|
88645H
88645-10020
Switch, Pressure
[05.1987 - 08.1989] AE9#,CE90,EE9#..GCC,GEN NO.1 |
88645-10020 |
— | ||
|
88645H
|
88645H
88645-12030
Switch, Pressure No.1
[05.1987 - 12.1988] AE9#,CE90,EE9#..GCC,GEN NO.2 |
88645-12030 |
— | ||
|
88645H
|
88645H
88645-12040
Switch, Pressure No.1
[05.1987 - 08.1987] EE90..LHD NO.1; AE92,CE90..LHD NO.1 |
88645-12040 |
— | ||
|
88645H
|
88645H
88645-16050
Switch, Pressure No.1
[12.1988 - 08.1989] AE92,EE90..SA NO.2; AE9#,CE90,EE9#..GCC,GEN NO.2 |
88645-16050 |
— | ||
|
88645H
|
88645H
88645-32020
Switch, Pressure No.1
[05.1987 - 08.1987] EE90..LHD NO.2; AE92,CE90;EE90..RHD NO.2 |
88645-32020 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-16050
Switch, Pressure No.1
[05.1987 - 08.1987] EE90..LHD NO.2; AE92,CE90;EE90..RHD NO.2 |
88645-16050 |
— | ||
|
88703
|
88703
88703-12060
Hose Sub-Assy, Discharge
[05.1987 - 12.1988] EE9#..LHD |
88703-12060 |
— | ||
| replacement | |||||
|
88703
|
88703
88703-12061 Hose Sub-Assy, DischargeDISCHARGE [05.1987 - 12.1988] EE9#..LHD |
88703-12061 |
US $215.49 |
||
|
88703
|
88703
88703-12061 Hose Sub-Assy, DischargeDISCHARGE [12.1988 - 08.1989] EE9#..LHD |
88703-12061 |
US $215.49 |
||
|
88704
|
88704
88704-12060 Hose Sub-Assy, SuctionSUCTION [05.1987 - 07.1987] EE90..LHD |
88704-12060 |
US $251.89 |
||
| replacement | |||||
|
88704
|
88704
88704-12061 Hose Sub-Assy, SuctionSUCTION [05.1987 - 07.1987] EE90..LHD |
88704-12061 |
US $247.52 |
||
|
88704
|
88704
88704-12061 Hose Sub-Assy, SuctionSUCTION [07.1987 - 07.1992] EE9#..LHD |
88704-12061 |
US $247.52 |
||
|
88710
|
88710
88706-12031 Tube Assy, Air ConditionerAIRCONDITIONER [09.1987 - 02.1988] AE9#,CE90,EE9#..LHD MAKER OPTION |
88706-12031 |
US $412.05 |
||
| replacement | |||||
|
88710
|
88710
88706-12032 Tube Assy, Air ConditionerAIRCONDITIONER [09.1987 - 02.1988] AE9#,CE90,EE9#..LHD MAKER OPTION |
88706-12032 |
US $419.33 |
||
|
88710
|
88710
88706-12032 Tube Assy, Air ConditionerAIRCONDITIONER [02.1988 - 08.1989] AE9#,CE90,EE9#..LHD MAKER OPTION |
88706-12032 |
US $419.33 |
||
|
88710
|
88710
88706-12070 Tube Assy, Air ConditionerAIRCONDITIONER [05.1987 - 09.1987] AE92,CE90,EE9#..LHD |
88706-12070 |
US $358.18 |
||
|
88710
|
88710
88706-12071
Tube Assy, Air Conditioner
[08.1989 - 05.1992] AE9#,EE9#..LHD..GEN; CE90 DEALER OPTION |
88706-12071 |
— | ||
|
88711
|
88711
88711-12450 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [05.1987 - 12.1988] EE9#..LHD |
88711-12450 |
US $187.82 |
||
| replacement | |||||
|
88711
|
88711
88711-1A290 Hose, Cooler Refrigerant Discharge, No.1[05.1987 - 12.1988] EE9#..LHD |
88711-1A290 |
US $94.64 |
||
|
88711
|
88711
88711-12590 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [12.1988 - 08.1989] EE9#..LHD MAKER OPTION |
88711-12590 |
US $187.82 |
||
|
88711
|
88711
88711-12591 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [07.1990 - 05.1992] EE9#..LHD..GEN MAKER OPTION |
88711-12591 |
US $177.63 |
||
| replacement | |||||
|
88711
|
88711
88703-12061 Hose Sub-Assy, DischargeDISCHARGE [07.1990 - 05.1992] EE9#..LHD..GEN MAKER OPTION |
88703-12061 |
US $215.49 |
||
|
88712
|
88712
88712-12641 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [05.1987 - 07.1987] EE90..LHD |
88712-12641 |
US $200.93 |
||
|
88712
|
88712
88712-12790 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [04.1988 - 10.1988] EE9#..LHD |
88712-12790 |
US $208.21 |
||
|
88712
|
88712
88712-12791 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [07.1990 - 07.1992] EE9#..LHD |
88712-12791 |
US $198.02 |
||
| replacement | |||||
|
88712
|
88712
88704-12061 Hose Sub-Assy, SuctionSUCTION [07.1990 - 07.1992] EE9#..LHD |
88704-12061 |
US $247.52 |
||
|
88716C
|
88716C
88726-12290
Pipe, Cooler Refrigerant Liquid, C
[05.1987 - 09.1987] AE92,CE90,EE9#..LHD |
88726-12290 |
— | ||
|
88716C
|
88716C
88726-12291
Pipe, Cooler Refrigerant Liquid, C
[09.1987 - 12.1987] AE9#,CE90,EE9#..LHD |
88726-12291 |
— | ||
|
88716E
|
88716E
88726-12270 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [05.1987 - 08.1987] AE92,CE90,EE90..LHD |
88726-12270 |
US $144.14 |
||
| replacement | |||||
|
88716E
|
88716E
88726-12271
Pipe, Cooler Refrigerant Liquid, E
[05.1987 - 08.1987] AE92,CE90,EE90..LHD |
88726-12271 |
— | ||
|
88716E
|
88716E
88726-12271
Pipe, Cooler Refrigerant Liquid, E
[02.1988 - 10.1988] EE9#..LHD; AE9#,CE90..LHD |
88726-12271 |
— | ||
|
88717A
|
88717A
88717-12471 Pipe, Cooler Refrigerant Suction, ACOOLER REFRIGERANT SUCTION, A [05.1987 - 07.1987] EE90..LHD |
88717-12471 |
US $182 |
||
|
88717B
|
88717B
88717-12500 Pipe, Cooler Refrigerant Suction, BCOOLER REFRIGERANT SUCTION, B [05.1987 - 08.1989] EE9#..LHD |
88717-12500 |
US $67.56 |
||
|
887181A260
|
887181A260
88718-1A260
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A260 |
— | ||
|
887181A271
|
887181A271
88718-1A271
Pipe, Cooler Refrigerant Suction, No.2
|
88718-1A271 |
— | ||
|
8868812730
|
8868812730
88688-12730
Bracket, Cooler Diaphragm
|
88688-12730 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9165160850
|
9165160850
91651-60850 New Genuine Part |
91651-60850 |
US $2.56 |
||
|
9165160860
|
9165160860
91651-60860 New Genuine Part |
91651-60860 |
US $0.79 |
||
