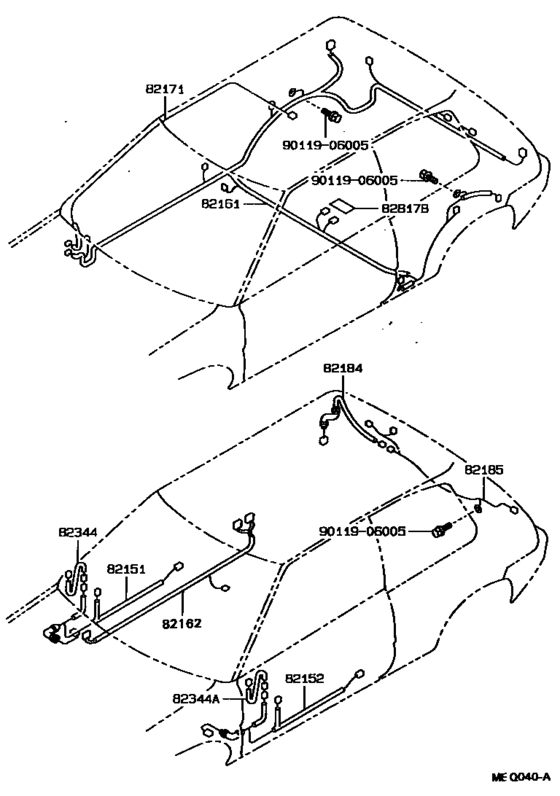

Wiring & Clamp ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- EE90
- grade
- XLI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-12350 Wire, Front Door, Rh[08.1989 - 05.1992] EE90..3D..MTM..XLI;CE90,EE90..RHD..3D..XL; EE90..3D..GL;EE90..LHD..3D..XL;EE90..3D..3FC..EFI;AE92,CE90..LHD..3D..(GLI,SR5,XL, XLI) W(*DRC) |
82151-12350 |
US $36.84 |
||
|
82152
|
82152
82152-12420 Wire, Front Door, Lh[08.1989 - 05.1992] EE90..3D..MTM..XLI;CE90,EE90..RHD..3D..XL; EE90..3D..GL;EE90..LHD..3D..XL;EE90..3D..3FC..EFI;AE92,CE90..LHD..3D..(GLI,SR5,XL, XLI) W(*DRC) |
82152-12420 |
US $36.84 |
||
|
82161
|
82161
82161-1H110 Wire, FloorFLOOR [08.1989 - 11.1992] AE92,CE90,EE90..LHD |
82161-1H110 |
US $522.70 |
||
|
82171
|
82171
82171-12340 Wire, Roof, No.1ROOF, NO.1 [08.1989 - 11.1992] AE92,CE90,EE90..LHD |
82171-12340 |
US $24.61 |
||
|
82171
|
82171
82171-12350 Wire, Roof, No.1ROOF, NO.1 [08.1989 - 11.1992] EE90..STD..EFI;AE92,CE90,EE90..LHD..(GL,GLI,GTI,SR5,XL,XLI) W(SUN ROOF) |
82171-12350 |
US $55.04 |
||
|
82184
|
82184
82184-12410 Wire, Back Door, No.1BACK DOOR, NO.1 [07.1989 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
82184-12410 |
US $49.07 |
||
|
82184
|
82184
82184-12420 Wire, Back Door, No.1[07.1989 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI W(*RW) |
82184-12420 |
US $61.73 |
||
|
82185
|
82185
82185-12310 Wire, Back Door, No.2[05.1987 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI |
82185-12310 |
US $24.61 |
||
|
82185
|
82185
82185-12330 Wire, Back Door, No.2[05.1987 - 06.1992] AE92,CE90,EE90..GL,GLI,SR5,STD,XL,XLI W(*RW) |
82185-12330 |
US $37.13 |
||
|
82344
|
82344
82344-12010
Wire, Mirror, Rh
[05.1987 - 11.1992] AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
82344-12010 |
— | ||
|
82344A
|
82344A
82344-12010
Wire, Mirror, Rh
[05.1987 - 11.1992] AE92,CE90,EE90..GL,GLI,GTI,SR5,XL,XLI |
82344-12010 |
— | ||
|
82817B
|
82817B
82817-16100 Protector, Wiring Harness, No.1[05.1987 - 11.1992] AE92,CE90,EE90 |
82817-16100 |
US $5.53 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
