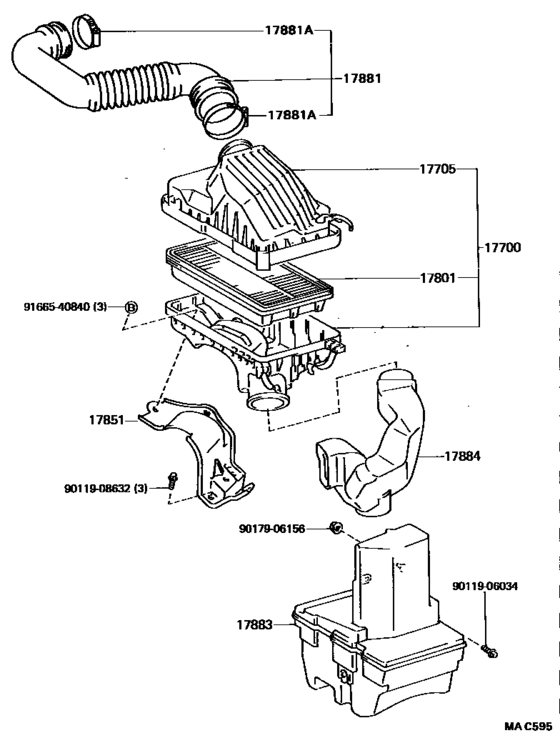

Air Cleaner ([08.1989 - ] (8908- )2EE) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- EE90
- grade
- STD
- body
- WG
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-11450 Cleaner Assy, AirAIR [08.1989 - 06.1991] 2EE..EE90 |
17700-11450 |
US $334.88 |
||
|
17700
|
17700
17700-11640 Cleaner Assy, AirAIR [08.1989 - 06.1991] 2EE..EE90..4F WEST GERMANY SPEC; 2EE..EE90..5F WEST GERMANY SPEC OR AUSTRIA SPEC |
17700-11640 |
US $334.88 |
||
|
17705
|
17705
17705-11350
Cap Sub-Assy, Air Cleaner
[08.1989 - 06.1991] 2EE..EE90 |
17705-11350 |
— | ||
|
17705
|
17705
17705-11450
Cap Sub-Assy, Air Cleaner
[08.1989 - 06.1991] 2EE..EE90..4F WEST GERMANY SPEC; 2EE..EE90..5F WEST GERMANY SPEC OR AUSTRIA SPEC |
17705-11450 |
— | ||
|
17801
|
17801
17801-16020 Element Sub-Assy, Air Cleaner Filter[08.1989 - 05.1992] 2EE..EE90; 4AFE..AE95 |
17801-16020 |
US $43.17 |
||
| replacement | |||||
|
17801
|
17801
17801-16020-83 ELEMENT SUB ASSY[08.1989 - 05.1992] 2EE..EE90; 4AFE..AE95 |
17801-16020-83 |
US $46.49 |
||
|
17851
|
17851
17851-11010 Bracket, Air Cleaner SupportAIR CLEANER SUPPORT [08.1989 - 05.1992] 2EE..EE90 |
17851-11010 |
US $88.82 |
||
|
17881
|
17881
17881-11190 Hose, Air Cleaner, No.1AIR CLEANER, NO.1 [08.1989 - 05.1992] 2EE..EE90 |
17881-11190 |
US $38.88 |
||
|
17881A
|
17881A
90460-77002 Clamp Or Clip(For Air Hose, No.1)[11.1989 - 05.1992] 2EE..EE90 |
90460-77002 |
from US $3.61 |
||
|
17883
|
17883
17883-16041 Hose, Air Cleaner, No.3[05.1988 - 05.1992] 1C..CE90; 2EE..EE90; 4AFE,4AGE..AE9# |
17883-16041 |
US $66.54 |
||
|
17884
|
17884
17882-16100 Hose, Air Cleaner, No.4[08.1989 - 05.1992] 4AFE..AE9#; 2EE..EE90 |
17882-16100 |
US $26.30 |
||
|
9011906034
|
9011906034
90119-06034 New Genuine Part |
90119-06034 |
US $1.60 |
||
| replacement | |||||
|
9011906034
|
9011906034
91621-40616 Step Cover Bolt |
91621-40616 |
US $1.28 |
||
|
9011908632
|
9011908632
90119-08632 New Genuine Part |
90119-08632 |
US $2.04 |
||
| replacement | |||||
|
9011908632
|
9011908632
91621-40816 BOLTWWASHER |
91621-40816 |
from US $1.05 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9166540840
|
9166540840
91665-40840 New Genuine Part |
91665-40840 |
US $2.18 |
||
| replacement | |||||
|
9166540840
|
9166540840
91661-60840 Bolt |
91661-60840 |
US $2.24 |
||
