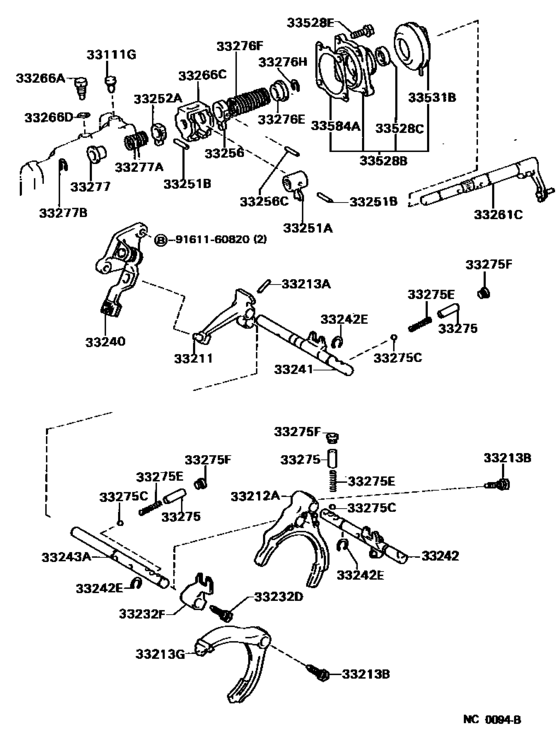

Gear Shift Fork & Lever Shaft (Mtm) ([05.1987 - ] C140 (8705- )4F) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- EE90
- grade
- STD
- body
- WG
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33111G
|
33111G
90930-03080
Plug, Breather(For Manual Transmission)
[08.1990 - 06.1991] CE90,EE90..MTM |
90930-03080 |
— | ||
|
33111G
|
33111G
90930-03133 Plug, Breather[03.1992 - 05.1992] AE92,CE90,EE90..MTM |
90930-03133 |
from US $5.92 |
||
|
33211
|
33211
33211-12030 Fork, Reverse Shift[05.1987 - 05.1992] EE90..4F |
33211-12030 |
US $45.72 |
||
|
33212A
|
33212A
33212-10012 Fork, Gear Shift, No.1[08.1990 - 02.1991] AE92,EE90..MTM |
33212-10012 |
US $29.12 |
||
| replacement | |||||
|
33212A
|
33212A
33212-10013 Fork, Gear Shift, No.1[08.1990 - 02.1991] AE92,EE90..MTM |
33212-10013 |
from US $22.50 |
||
|
33212A
|
33212A
33212-10013 Fork, Gear Shift, No.1[02.1991 - 05.1992] AE92,EE90..MTM |
33212-10013 |
from US $22.50 |
||
|
33213A
|
33213A
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[05.1987 - 05.1992] EE90..4F |
90254-05016 |
from US $2.05 |
||
|
33213B
|
33213B
90105-06115 Bolt(For Shift Fork Set)[10.1989 - 05.1992] EE90..4F;EE90..5F..EFI |
90105-06115 |
US $1.44 |
||
|
33213G
|
33213G
33213-10022 Fork, 3Rd & 4Th Shift[08.1989 - 05.1992] EE90..MTM |
33213-10022 |
US $32.50 |
||
|
33232D
|
33232D
90105-06115 Bolt(For Shift Fork Set)[05.1989 - 05.1992] AE92,EE90..MTM |
90105-06115 |
US $1.44 |
||
|
33232F
|
33232F
33232-10021
Head, Gear Shift, No.1
[08.1989 - 05.1992] EE90..MTM |
33232-10021 |
— | ||
|
33240
|
33240
33240-10011 Bracket Assy, Reverse Shift Arm[08.1989 - 05.1992] EE90..MTM |
33240-10011 |
US $96.10 |
||
| replacements | |||||
|
33240
|
33240
33240-16020 Bracket Assy, Reverse Shift Arm[08.1989 - 05.1992] EE90..MTM |
33240-16020 |
US $59.40 |
||
|
33240
|
33240
90119-08A41 New Genuine Part[08.1989 - 05.1992] EE90..MTM |
90119-08A41 |
US $1.02 |
||
|
33241
|
33241
33244-10030 Shaft, Reverse Shift Fork[08.1989 - 06.1991] EE90..4F |
33244-10030 |
US $40.77 |
||
| replacements | |||||
|
33241
|
33241
33244-10032 Shaft, Gear Shift Fork, No.3[08.1989 - 06.1991] EE90..4F |
33244-10032 |
US $27.66 |
||
|
33241
|
33241
90501-12168 Spring, Compression (For Shift Detent Ball)[08.1989 - 06.1991] EE90..4F |
90501-12168 |
US $1.76 |
||
|
33241
|
33241
33244-10031 Shaft, Gear Shift Fork, No.3[06.1991 - 05.1992] EE90..4F |
33244-10031 |
US $40.77 |
||
| replacements | |||||
|
33241
|
33241
33244-10032 Shaft, Gear Shift Fork, No.3[06.1991 - 05.1992] EE90..4F |
33244-10032 |
US $27.66 |
||
|
33241
|
33241
90501-12168 Spring, Compression (For Shift Detent Ball)[06.1991 - 05.1992] EE90..4F |
90501-12168 |
US $1.76 |
||
|
33242
|
33242
33205-10070 Shaft Sub-Assy, Gear Shift Fork, No.1[08.1989 - 06.1991] EE90..MTM |
33205-10070 |
US $42.08 |
||
| replacements | |||||
|
33242
|
33242
33205-10072 Shaft Sub-Assy, Gear Shift Fork, No.1[08.1989 - 06.1991] EE90..MTM |
33205-10072 |
US $29.12 |
||
|
33242
|
33242
90501-12168 Spring, Compression (For Shift Detent Ball)[08.1989 - 06.1991] EE90..MTM |
90501-12168 |
US $1.76 |
||
|
33242
|
33242
33205-10071 Shaft Sub-Assy, Gear Shift Fork, No.1[06.1991 - 05.1992] EE90..MTM |
33205-10071 |
US $42.22 |
||
| replacements | |||||
|
33242
|
33242
33205-10072 Shaft Sub-Assy, Gear Shift Fork, No.1[06.1991 - 05.1992] EE90..MTM |
33205-10072 |
US $29.12 |
||
|
33242
|
33242
90501-12168 Spring, Compression (For Shift Detent Ball)[06.1991 - 05.1992] EE90..MTM |
90501-12168 |
US $1.76 |
||
|
33242E
|
33242E
90520-12003 Ring(For Reverse Shift Head)[10.1989 - 05.1992] EE90..MTM |
90520-12003 |
from US $0.92 |
||
|
33243A
|
33243A
33243-10040 Shaft, Gear Shift Fork, No.2[08.1989 - 06.1991] EE90..MTM |
33243-10040 |
US $48.78 |
||
| replacements | |||||
|
33243A
|
33243A
33243-10042 Shaft, Gear Shift Fork, No.2[08.1989 - 06.1991] EE90..MTM |
33243-10042 |
US $48.63 |
||
|
33243A
|
33243A
90501-12168 Spring, Compression (For Shift Detent Ball)[08.1989 - 06.1991] EE90..MTM |
90501-12168 |
US $1.76 |
||
|
33243A
|
33243A
33243-10041 Shaft, Gear Shift Fork, No.2[06.1991 - 05.1992] EE90..MTM |
33243-10041 |
US $48.34 |
||
| replacements | |||||
|
33243A
|
33243A
33243-10042 Shaft, Gear Shift Fork, No.2[06.1991 - 05.1992] EE90..MTM |
33243-10042 |
US $48.63 |
||
|
33243A
|
33243A
90501-12168 Spring, Compression (For Shift Detent Ball)[06.1991 - 05.1992] EE90..MTM |
90501-12168 |
US $1.76 |
||
|
33251A
|
33251A
33251-10050 Lever, Shift, Inner No.1[08.1989 - 05.1992] EE90..MTM |
33251-10050 |
US $24.17 |
||
|
33251B
|
33251B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[10.1989 - 05.1992] AE92,EE90..MTM L=25.5 |
90254-05016 |
from US $2.05 |
||
|
33252A
|
33252A
33252-12010 Lever, Shift, Inner No.2[10.1989 - 05.1992] AE92,EE90..MTM |
33252-12010 |
US $9.03 |
||
| replacements | |||||
|
33252A
|
33252A
33252-12011 Lever, Shift, Inner No.2[10.1989 - 05.1992] AE92,EE90..MTM |
33252-12011 |
US $5.39 |
||
|
33252A
|
33252A
33277-12011 Seat, Select Spring, No.2[10.1989 - 05.1992] AE92,EE90..MTM |
33277-12011 |
US $5.53 |
||
|
33256
|
33256
33256-12021 Lever, Select Inner[10.1989 - 05.1992] AE92,EE90..MTM |
33256-12021 |
US $16.02 |
||
| replacements | |||||
|
33256
|
33256
90501-16142 Spring, Compression, No.1 (For Select Return)[10.1989 - 05.1992] AE92,EE90..MTM |
90501-16142 |
US $2.62 |
||
|
33256
|
33256
33256-12022 Lever, Select Inner[10.1989 - 05.1992] AE92,EE90..MTM |
33256-12022 |
US $10.05 |
||
|
33256
|
33256
33276-12022 Seat, Select Spring, No.1[10.1989 - 05.1992] AE92,EE90..MTM |
33276-12022 |
US $5.53 |
||
|
33256C
|
33256C
90254-05002 Pin, Slotted Spring(For Shift Lever Shaft Set)[08.1990 - 05.1992] AE92,EE90..MTM |
90254-05002 |
from US $1.09 |
||
|
33261C
|
33261C
33261-10050 Shaft, Shift & Select Lever[08.1989 - 05.1992] EE90..MTM |
33261-10050 |
US $142.69 |
||
| replacements | |||||
|
33261C
|
33261C
33261-10060 Shaft, Shift & Select Lever[08.1989 - 05.1992] EE90..MTM |
33261-10060 |
US $142.69 |
||
|
33261C
|
33261C
33534-10060 Crank, Selecting Bell, No.2[08.1989 - 05.1992] EE90..MTM |
33534-10060 |
US $39.75 |
||
|
33266A
|
33266A
90109-12019
Bolt (For Shift Inter Lock Plate)
[10.1989 - 05.1992] AE92,EE90..MTM |
90109-12019 |
— | ||
|
33266C
|
33266C
33266-12021 Plate, Shift Inter Lock[10.1989 - 05.1992] AE92,EE90..MTM |
33266-12021 |
US $28.10 |
||
|
33266D
|
33266D
90430-12008 Gasket (For Shift Inter Lock Plate)[10.1989 - 05.1992] AE92,EE90..MTM |
90430-12008 |
from US $0.88 |
||
|
33275
|
33275
33275-12041 Seat, Shift Detent Ball Spring, No.1[10.1989 - 07.1991] AE92,EE90..MTM OD=10.7 |
33275-12041 |
US $3.04 |
||
|
33275C
|
33275C
90360-10003 Ball(For Transmission Oil Pump Cover)[10.1989 - 05.1992] AE92,EE90..MTM |
90360-10003 |
from US $1.60 |
||
|
33275E
|
33275E
90501-11059 Spring, Compression (For Shift Detent Ball)[05.1991 - 05.1992] AE92,EE90..MTM |
90501-11059 |
US $2.18 |
||
|
33275E
|
33275E
90501-14077 Spring, Compression (For Shift Detent Ball)[10.1989 - 05.1991] AE92,EE90..MTM |
90501-14077 |
US $2.33 |
||
| replacement | |||||
|
33275E
|
33275E
90501-11059 Spring, Compression (For Shift Detent Ball)[10.1989 - 05.1991] AE92,EE90..MTM |
90501-11059 |
US $2.18 |
||
|
33275F
|
33275F
90341-12004 Plug, Oil Pan(For Oil Cooler)[08.1990 - 07.1991] AE92,EE90..MTM |
90341-12004 |
US $2.24 |
||
|
33276E
|
33276E
33276-12021 Seat, Select Spring, No.1[10.1989 - 05.1992] AE92,EE90..MTM |
33276-12021 |
US $9.03 |
||
| replacements | |||||
|
33276E
|
33276E
90501-16142 Spring, Compression, No.1 (For Select Return)[10.1989 - 05.1992] AE92,EE90..MTM |
90501-16142 |
US $2.62 |
||
|
33276E
|
33276E
33256-12022 Lever, Select Inner[10.1989 - 05.1992] AE92,EE90..MTM |
33256-12022 |
US $10.05 |
||
|
33276E
|
33276E
33276-12022 Seat, Select Spring, No.1[10.1989 - 05.1992] AE92,EE90..MTM |
33276-12022 |
US $5.53 |
||
|
33276F
|
33276F
90501-16081 Spring, Compression, No.1 (For Select Return)[10.1989 - 05.1992] EE90..MTM |
90501-16081 |
US $3.20 |
||
|
33276H
|
33276H
90520-15003 Ring, Shaft Snap (For Select Spring No.1 Seat)[08.1990 - 05.1992] AE92,EE90..MTM |
90520-15003 |
US $0.79 |
||
|
33277
|
33277
33277-12010 Seat, Select Spring, No.2[10.1989 - 05.1992] AE92,EE90..MTM |
33277-12010 |
US $9.03 |
||
| replacements | |||||
|
33277
|
33277
33252-12011 Lever, Shift, Inner No.2[10.1989 - 05.1992] AE92,EE90..MTM |
33252-12011 |
US $5.39 |
||
|
33277
|
33277
33277-12011 Seat, Select Spring, No.2[10.1989 - 05.1992] AE92,EE90..MTM |
33277-12011 |
US $5.53 |
||
|
33277A
|
33277A
90501-16082 Spring, Compression, No.2 (For Select Return)[10.1989 - 02.1992] EE90..MTM |
90501-16082 |
US $2.48 |
||
| replacement | |||||
|
33277A
|
33277A
90501-16136 Spring, Compression, No.2 (For Select Return)[10.1989 - 02.1992] EE90..MTM |
90501-16136 |
US $1.60 |
||
|
33277A
|
33277A
90501-16136 Spring, Compression, No.2 (For Select Return)[02.1992 - 05.1992] AE92,EE90..MTM |
90501-16136 |
US $1.60 |
||
|
33277B
|
33277B
90523-12003 Ring, E(For Reverse Restrict Pin)[10.1989 - 05.1992] AE92,EE90..MTM |
90523-12003 |
US $0.61 |
||
|
33528B
|
33528B
33506-12061 Cover, Control Shaft[10.1989 - 05.1992] AE92,EE90..MTM |
33506-12061 |
US $45.78 |
||
|
33528C
|
33528C
90311-18006 Seal, Oil (For Control Shaft Cover)[05.1990 - 05.1992] AE92,EE90..MTM |
90311-18006 |
US $2.20 |
||
|
33528E
|
33528E
90119-10288 Bolt (For Control Shaft Cover)[10.1989 - 05.1992] AE92,EE90..MTM *10-1.25PX25-19.8 |
90119-10288 |
US $0.70 |
||
|
33528E
|
33528E
91611-61025
Bolt(For Transaxle & Engine Setting)
[10.1989 - 05.1992] AE92,EE90..MTM *10-1.25PX25-25 |
91611-61025 |
— | ||
| replacement | |||||
|
33528E
|
33528E
91612-61025 Bolt (For Control Shaft Cover)[10.1989 - 05.1992] AE92,EE90..MTM *10-1.25PX25-25 |
91612-61025 |
from US $1.13 |
||
|
33531B
|
33531B
33531-12020 Boot, Dust (For Shift & Select Lever Shaft)[08.1990 - 05.1992] AE92,EE90..MTM |
33531-12020 |
from US $10.08 |
||
|
33584A
|
33584A
33584-12050 Gasket, Control Shift Lever Retainer[10.1989 - 05.1992] AE92,EE90..MTM |
33584-12050 |
US $2.97 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
