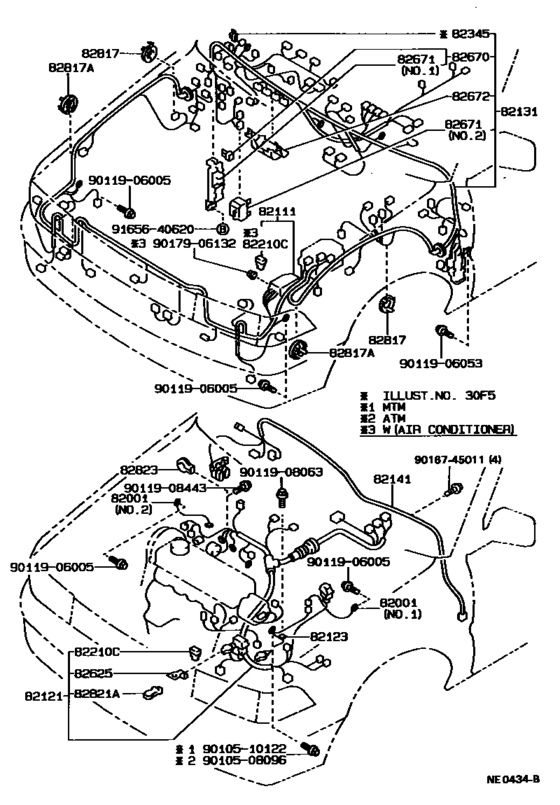

Wiring & Clamp ([05.1987 - ] (8705- )EE90) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- EE90
- grade
- STD
- body
- WG
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[05.1987 - 05.1992] EE90 NO.1 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07293 Cable, Bond, No.1[05.1987 - 05.1992] EE90 NO.2 |
90980-07293 |
US $8.15 |
||
|
82111
|
82111
82111-1A750 Wire, Engine Room MainENGINE ROOM MAIN [08.1989 - 05.1992] AE9#,CE90,EE90..LHD |
82111-1A750 |
US $522.70 |
||
|
82111
|
82111
82111-1A760 Wire, Engine Room MainENGINE ROOM MAIN [08.1989 - 05.1992] AE9#,CE90,EE90..LHD W(HEADLAMP CLEANER) |
82111-1A760 |
US $612.98 |
||
|
82111
|
82111
82111-1A770 Wire, Engine Room MainENGINE ROOM MAIN [08.1989 - 01.1991] CE90..LHD;EE90..SED..STD..EFI NORWAY SPEC; AE92..GTI SWEDEN SPEC OR NORWAY SPEC; AE9#,EE90..GLI,XLI;EE90..WG..STD..EFI SWEDEN SPEC & W(*HC) OR NORWAY SPEC |
82111-1A770 |
US $612.98 |
||
|
82111
|
82111
82111-1A790 Wire, Engine Room MainENGINE ROOM MAIN [11.1989 - 05.1992] AE95..WG..EFI;EE90..MTM..EFI;AE92,CE90..LHD..(DSL,EFI) *FRG |
82111-1A790 |
US $612.98 |
||
|
82121
|
82121
82121-1E560 Wire, EngineENGINE [08.1989 - 03.1991] EE90..EFI |
82121-1E560 |
US $799.34 |
||
|
82121
|
82121
82121-1E561 Wire, EngineENGINE [03.1991 - 05.1992] EE90..MTM..EFI |
82121-1E561 |
US $446.99 |
||
|
82123
|
82123
82123-12170
Wire, Engine, No.3
[05.1987 - 05.1992] AE9#,EE90..MTM |
82123-12170 |
— | ||
|
82131
|
82131
82131-1H831 Wire, CowlCOWL [08.1990 - 05.1992] AE92..GLI,XLI;EE90..MTM..EFI |
82131-1H831 |
US $697.42 |
||
|
82131
|
82131
82131-1H841 Wire, CowlCOWL [08.1990 - 05.1992] EE90..WG..STD..EFI W(*RW); AE92,EE90..SED..MTM..XLI W(*EL) OR W(*RCM); AE92..SED..GLI;EE90..(LB,WG)..5F..EFI;AE92..(LB,WG)..(GLI,XLI) W(*EL) OR W(*RW) OR W(*RCM) |
82131-1H841 |
US $1,147.33 |
||
|
82131
|
82131
82131-1K091 Wire, CowlCOWL [08.1990 - 01.1991] AE92,EE90..SED..(GLI,XLI) SWEDEN SPEC OR NORWAY SPEC; AE92,EE90..(LB,WG)..(GLI,XLI) SWEDEN SPEC OR NORWAY SPEC; EE90..STD..EFI SWEDEN SPEC OR NORWAY SPEC |
82131-1K091 |
US $1,237.60 |
||
|
82131
|
82131
82131-1K171 Wire, CowlCOWL [08.1990 - 05.1992] AE92,EE90..SED..MTM..(GLI,XLI) *FRG; EE90..STD..EFI *FRG; EE90..(LB,WG)..5F..EFI;AE92..(LB,WG)..(GLI,XLI) *FRG |
82131-1K171 |
US $1,147.33 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[09.1989 - 05.1992] AE9#,CE90,EE90 30A,TERMINAL:FEMALE |
90982-08188 |
from US $4.70 |
||
|
82210C
|
82210C
90982-08189 Fusible Link[05.1987 - 05.1992] AE9#,CE90,EE90..DSL,EFI 40A,TERMINAL:FEMALE |
90982-08189 |
US $7.04 |
||
|
82210C
|
82210C
90982-08203 Fusible Link[12.1989 - 03.1991] AE92..GTI;EE90..EFI 80A,TERMINAL:MALE |
90982-08203 |
from US $7.36 |
||
|
82210C
|
82210C
90982-08223 Fusible Link[05.1989 - 05.1992] EE90 30A,TERMINAL:MALE,30A,TERMINAL:MALE |
90982-08223 |
US $11.36 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[03.1991 - 05.1992] AE92,EE90..(GLI,STD,XLI)..EFI 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82345
|
82345
82345-12030 Diode[10.1989 - 09.1990] AE95,CE90;AE92..3FC;EE90..RHD;AE92..RHD..5F;EE90..LHD..3FC;AE92,EE90..MTM..EFI NO.2 |
82345-12030 |
US $11.36 |
||
|
82345
|
82345
82345-32020 Diode[11.1989 - 05.1992] AE92..GLI,XLI;EE90..MTM..EFI NO.8 |
82345-32020 |
US $13.45 |
||
|
82625
|
82625
82625-12020 Terminal, Fusible Link[05.1987 - 03.1991] CE90..RHD;EE90..EFI |
82625-12020 |
US $18.05 |
||
|
82625
|
82625
82625-12060 Terminal, Fusible Link[03.1991 - 05.1992] AE92,EE90..(GLI,STD,XLI)..EFI |
82625-12060 |
US $18.20 |
||
|
82671
|
82671
82671-12030 Block, Junction[10.1987 - 05.1992] AE9#,CE90,EE90 NO.1 |
82671-12030 |
US $174.72 |
||
|
82671
|
82671
82671-12070 Block, Junction[10.1987 - 05.1992] AE9#,CE90,EE90 NO.2 |
82671-12070 |
US $23.88 |
||
|
82672
|
82672
82672-12111 Cover, Junktion BlockJUNKTION BLOCK [08.1989 - 05.1992] AE9#,CE90,EE90..LHD |
82672-12111 |
US $16.60 |
||
|
82817
|
82817
82817-14350 Protector, Wiring Harness, No.1[05.1987 - 05.1992] AE9#,CE90,EE90 |
82817-14350 |
US $12.67 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[05.1987 - 05.1992] AE9#,CE90,EE90 |
82817-32010 |
— | ||
|
82821A
|
82821A
82821-12180 Cover, Connector(For Battery Terminal)[08.1989 - 03.1991] EE90;CE90..RHD;AE9#..CBR |
82821-12180 |
US $8.30 |
||
|
82821A
|
82821A
82821-12260 Cover, Connector(For Battery Terminal)[03.1991 - 05.1992] AE92,EE90..(GLI,STD,XLI)..EFI |
82821-12260 |
US $7.72 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[03.1990 - 05.1992] AE9#,EE90 |
82823-22050 |
US $6.24 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
US $1.44 |
||
