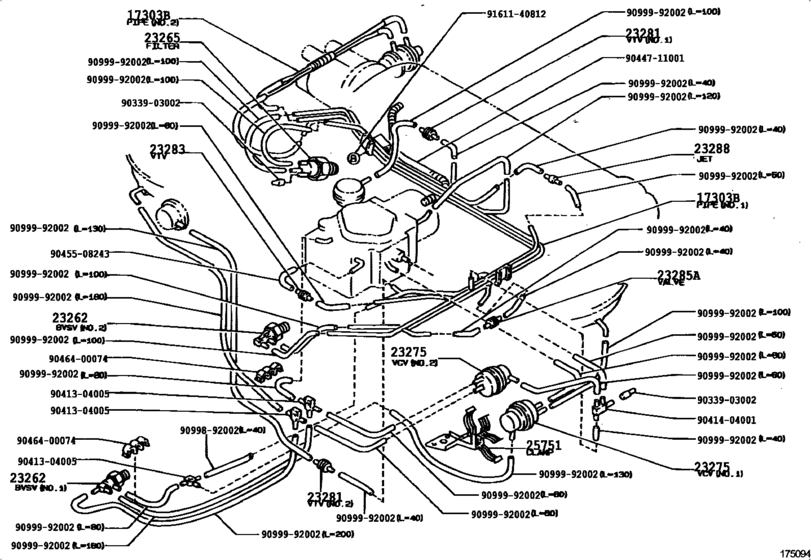

Vacuum Piping ([05.1987 - 08.1989] EX.EMISSION CONT.=PHASE C/ANNEX25 (8705-8908)2E) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- EE90
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11051 Pipe Sub-Assy, Air, No.1AIR, NO.1 [05.1987 - 03.1988] 2E..EE90 |
17303-11051 |
US $20.82 |
||
|
17303B
|
17303B
17303-11052 Pipe Sub-Assy, Air, No.1AIR, NO.1 [03.1988 - 08.1989] 2E..EE90 |
17303-11052 |
US $23.88 |
||
|
17303B
|
17303B
17303-11220 Pipe Sub-Assy, Air, No.1AIR, NO.1 [07.1987 - 08.1989] 2E..EE90..LHD..WG EX. EMISSION CONTROL(US'83) |
17303-11220 |
US $60.72 |
||
|
17303B
|
17303B
17303-11440 Pipe Sub-Assy, Air, No.1AIR, NO.1 [08.1989 - 11.1989] 2E..EE90..LHD..MTM NO.2 |
17303-11440 |
US $25.92 |
||
|
17303B
|
17303B
17303-11460 Pipe Sub-Assy, Air, No.1[08.1989 - 05.1992] 2E..EE90 NO.1 |
17303-11460 |
US $19.95 |
||
|
17303B
|
17303B
17303-11550 Pipe Sub-Assy, Air, No.1AIR, NO.1 [08.1989 - 12.1989] 2E..EE90 NO.3 |
17303-11550 |
US $18.20 |
||
|
17303B
|
17303B
17303-11570 Pipe Sub-Assy, Air, No.1AIR, NO.1 [12.1989 - 05.1992] 2E..EE90 NO.3 |
17303-11570 |
US $19.95 |
||
|
23262
|
23262
25820-11020
Valve, Bimetal Vacuum Switching, No.1
[05.1987 - 08.1989] 2E..EE90 NO.1 |
25820-11020 |
— | ||
|
23262
|
23262
25820-11040 Valve, Bimetal Vacuum Switching, No.1[08.1989 - 05.1992] 2E..EE90 |
25820-11040 |
US $76.35 |
||
|
23262
|
23262
90925-05035 Valve, Bimetal Vacuum Switching, No.1[05.1987 - 08.1989] 2E..EE90 NO.2 |
90925-05035 |
from US $40.89 |
||
|
23262
|
23262
90925-05051 Valve, Bimetal Vacuum Switching, No.1[08.1987 - 08.1989] 2E..EE90..LHD..MTM EX.EMISSION CONTROL |
90925-05051 |
US $37.39 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[05.1987 - 08.1989] 2E..EE90 |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1987 - 08.1989] 2E..EE90 |
90917-11027 |
from US $23.71 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1989 - 05.1992] 4AGE..AE92; 2E..EE90 |
90917-11027 |
from US $23.71 |
||
|
23275
|
23275
90925-03175
Valve, Vacuum Control, No.1
[05.1987 - 08.1989] 2E..EE90 NO.2 |
90925-03175 |
— | ||
|
23275
|
23275
90925-03181
Valve, Vacuum Control, No.1
[05.1987 - 08.1989] 2E..EE90 NO.1 |
90925-03181 |
— | ||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[05.1987 - 09.1989] 2E..EE90 NO.1 |
90925-01014 |
— | ||
|
23281
|
23281
90925-01029
Valve, Vacuum Transmitting, No.1
[08.1989 - 11.1989] 2E..EE90..LHD..MTM NO.2 |
90925-01029 |
— | ||
| replacement | |||||
|
23281
|
23281
90925-01079
Valve, Vacuum Transmitting, No.1
[08.1989 - 11.1989] 2E..EE90..LHD..MTM NO.2 |
90925-01079 |
— | ||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[07.1987 - 08.1989] 2E..EE90..LHD..WG |
90925-01041 |
— | ||
|
23283
|
23283
90925-01021 Valve, Vacuum Transmitting, No.1[08.1989 - 09.1991] 2E..EE90 |
90925-01021 |
from US $19.92 |
||
|
23283
|
23283
90925-01091 Valve, Vacuum Transmitting, No.1[09.1991 - 05.1992] 2E..EE90 |
90925-01091 |
US $29.35 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1987 - 08.1989] 2E..EE90 EX. EMISSION CONTROL(*77); 4AF..AE95..LHD..SED;4AF,4AGE..AE92..LHD..5F EX. EMISSION CONTROL(*77) |
90917-10049 |
from US $10.24 |
||
|
23288
|
23288
90925-01101 Valve, Vacuum Transmitting, No.1[08.1989 - 09.1989] 2E..EE90 |
90925-01101 |
US $28.54 |
||
|
23288
|
23288
90925-04026 Jet, No.1[08.1987 - 08.1989] 2E..EE90..WG..STD |
90925-04026 |
US $11.65 |
||
|
25751
|
25751
25751-11050 Clamp, Vacuum Control Valve, No.1VACUUM CONTROL VALVE, NO.1 [05.1987 - 08.1989] 2E..EE90 |
25751-11050 |
US $12.52 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9041404001
|
9041404001
90414-04001 Joint, No.1 (For Idle Up Divice) |
90414-04001 |
US $5.59 |
||
|
9044711001
|
9044711001
90447-11001 New Genuine Part |
90447-11001 |
US $11.65 |
||
|
9045508243
|
9045508243
90455-08243
New Genuine Part
|
90455-08243 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9099892002
|
9099892002
90998-92002
New Genuine Part
|
90998-92002 |
— | ||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
