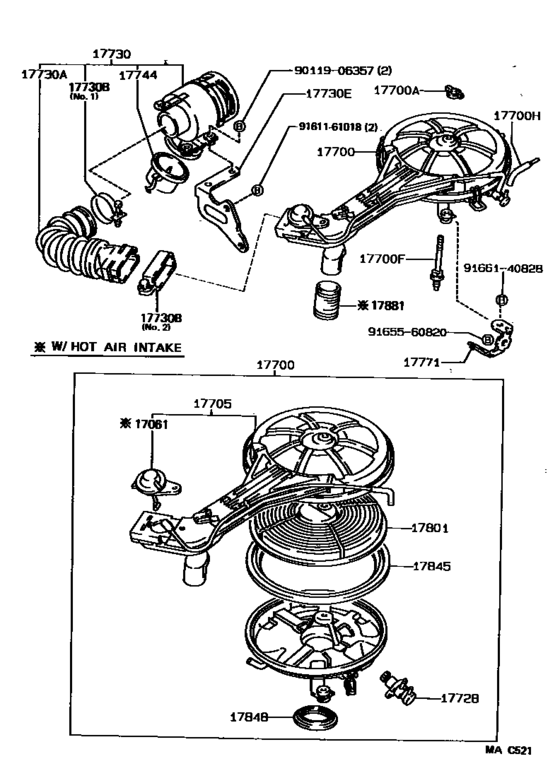

Air Cleaner ([05.1987 - ] W/PRE CLEANER (8705- )2E) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- EE90
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-10010
Diaphragm Sub-Assy
[05.1987 - 08.1989] 2E..EE97;2E..EE90..LHD..GEN; 2E..EE90..RHD..GEN W(HOT AIR INTAKE) |
17061-10010 |
— | ||
|
17061
|
17061
17061-11010 Diaphragm Sub-Assy[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
17061-11010 |
US $47.47 |
||
|
17700
|
17700
17700-11200 Cleaner Assy, AirAIR [05.1987 - 05.1992] 2E..EE9#..GEN W(HOT AIR INTAKE) |
17700-11200 |
US $407.68 |
||
|
17700
|
17700
17700-11210 Cleaner Assy, AirAIR [05.1987 - 08.1989] 2E..EE9# |
17700-11210 |
US $270.82 |
||
|
17700
|
17700
17700-11360 Cleaner Assy, AirAIR [05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
17700-11360 |
US $460.10 |
||
|
17700
|
17700
17700-11540 Cleaner Assy, AirAIR [02.1989 - 06.1990] 2E..EE9#..GCC,GEN W(PRE AIR CLEANER & POWER STEERING) |
17700-11540 |
US $407.68 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[05.1987 - 06.1990] 4AF..AE9#; 2E..EE9# |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[05.1987 - 06.1990] 2E..EE9# |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[05.1987 - 06.1990] 2E..EE9# |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-11170 Cap Sub-Assy, Air Cleaner[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
17705-11170 |
US $260.62 |
||
| replacement | |||||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
17705-11360 |
— | ||
|
17705
|
17705
17705-11180 Cap Sub-Assy, Air CleanerAIR CLEANER [05.1987 - 05.1992] 2E..EE9#..GEN W(HOT AIR INTAKE) |
17705-11180 |
US $260.62 |
||
|
17705
|
17705
17705-11190 Cap Sub-Assy, Air CleanerAIR CLEANER [05.1987 - 08.1989] 2E..EE9# |
17705-11190 |
US $70.18 |
||
|
17705
|
17705
17705-11370
Cap Sub-Assy, Air Cleaner
[02.1989 - 06.1990] 2E..EE9#..GCC,GEN W(PRE AIR CLEANER & POWER STEERING) |
17705-11370 |
— | ||
|
17728
|
17728
17728-10010
Valve, Thermostatic
[05.1987 - 08.1989] 2E..EE9# |
17728-10010 |
— | ||
|
17728
|
17728
17728-11020
Valve, Thermostatic
[11.1989 - 12.1989] 2E..EE9#..GEN W(PRE AIR CLEANER & POWER STEERING) |
17728-11020 |
— | ||
|
17728
|
17728
17728-11040
Valve, Thermostatic
[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
17728-11040 |
— | ||
| replacement | |||||
|
17728
|
17728
17728-10010
Valve, Thermostatic
[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
17728-10010 |
— | ||
|
17730
|
17730
17730-11011 Precleaner Assy, Air W/hose[05.1987 - 02.1989] 2E..EE9#..GCC,GEN |
17730-11011 |
US $205.30 |
||
| replacement | |||||
|
17730
|
17730
17730-11050 Precleaner Assy, Air W/hose[05.1987 - 02.1989] 2E..EE9#..GCC,GEN |
17730-11050 |
US $224.22 |
||
|
17730
|
17730
17730-11020 Precleaner Assy, Air W/hoseAIR W/HOSE [02.1989 - 06.1990] 2E..EE9#..GCC,GEN W(POWER STEERING) |
17730-11020 |
US $208.21 |
||
|
17730A
|
17730A
17881-11080
Hose, Precleaner
[05.1987 - 02.1989] 2E..EE9#..GCC,GEN |
17881-11080 |
— | ||
|
17730A
|
17730A
17881-11200
Hose, Precleaner
[02.1989 - 06.1990] 2E..EE9#..GCC,GEN W(POWER STEERING) |
17881-11200 |
— | ||
|
17730B
|
17730B
90460-01005 Clamp(For Air Cleaner Hose, No.2)[02.1989 - 08.1989] 2E..EE9#..GCC,GEN W(POWER STEERING),AIR CLEANER SIDE |
90460-01005 |
US $4.40 |
||
|
17730B
|
17730B
90460-01034 Clamp(For Air Cleaner Hose, No.2)HOSE(FOR PRECLEANER HOSE) [05.1987 - 02.1989] 2E..EE9#..GCC,GEN AIR CLEANER SIDE |
90460-01034 |
US $1.75 |
||
|
17730B
|
17730B
96111-10600 Clamp Or Clip, Hose(For Radiator Outlet No.1)[05.1987 - 02.1989] 2E..EE9#..GCC,GEN PRE CLEANER SIDE |
96111-10600 |
US $2.08 |
||
|
17730E
|
17730E
17741-11010 Bracket, Precleaner, No.1PRECLEANER, NO.1 [05.1987 - 02.1989] 2E..EE9#..GCC,GEN |
17741-11010 |
US $60.72 |
||
|
17730E
|
17730E
17741-11020 Bracket, Precleaner, No.1PRECLEANER, NO.1 [02.1989 - 06.1990] 2E..EE9#..GCC,GEN W(POWER STEERING) |
17741-11020 |
US $26.21 |
||
|
17744
|
17744
17744-16020
Cup, Precleaner
[02.1989 - 06.1990] 2E..EE9#..GCC,GEN W(POWER STEERING) |
17744-16020 |
— | ||
|
17744
|
17744
17744-35010
Cup, Precleaner
[05.1987 - 02.1989] 2E..EE9#..GCC,GEN |
17744-35010 |
— | ||
|
17771
|
17771
17771-11020
Bracket, Air Cleaner Inlet Duct
[05.1987 - 06.1990] 2E..EE9# |
17771-11020 |
— | ||
|
17801
|
17801
17801-10030
Element Sub-Assy, Air Cleaner Filter
[05.1987 - 06.1990] 2E..EE9# |
17801-10030 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[05.1987 - 06.1990] 2E..EE9# |
17801-11100 |
from US $17.30 |
||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[02.1992 - 08.1993] 2E..EE90 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[05.1987 - 06.1990] 2E..EE9# |
17845-10020 |
— | ||
|
17848
|
17848
17848-10020
Gasket, Air Cleaner To Carburetor
[05.1987 - 06.1987] 2E..EE90 |
17848-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[06.1987 - 06.1990] 2E..EE9# |
17848-10021 |
US $5.24 |
||
|
17848
|
17848
17848-15010
Gasket, Air Cleaner To Carburetor
[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
17848-15010 |
— | ||
|
17881
|
17881
17881-10030
Hose, Air Cleaner, No.1
[05.1987 - 02.1988] 2E..EE97;2E..EE90..LHD..GEN; 2E..EE90..RHD NEW ZEALAND SPEC OR W(HOT AIR INTAKE) |
17881-10030 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[05.1987 - 02.1988] 2E..EE97;2E..EE90..LHD..GEN; 2E..EE90..RHD NEW ZEALAND SPEC OR W(HOT AIR INTAKE) |
17881-10033 |
US $4.89 |
||
|
17881
|
17881
17881-10031
Hose, Air Cleaner, No.1
[02.1988 - 08.1989] 2E..EE97;2E..EE90..LHD..GEN; 2E..EE90..RHD..GEN NEW ZEALAND SPEC OR W(HOT AIR INTAKE) |
17881-10031 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[02.1988 - 08.1989] 2E..EE97;2E..EE90..LHD..GEN; 2E..EE90..RHD..GEN NEW ZEALAND SPEC OR W(HOT AIR INTAKE) |
17881-10033 |
US $4.89 |
||
|
17881
|
17881
17881-10032
Hose, Air Cleaner, No.1
[12.1989 - 10.1991] 2E..EE90..GL;2E..EE90..XL..SA;2E..EE90..LHD..5F..XL..GEN;2E..EE9#..(3FC,4F)..(GEN, SA); 2E..EE90..RHD..5F..XL..GEN NEW ZEALAND SPEC OR W(HOT AIR INTAKE) |
17881-10032 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[12.1989 - 10.1991] 2E..EE90..GL;2E..EE90..XL..SA;2E..EE90..LHD..5F..XL..GEN;2E..EE9#..(3FC,4F)..(GEN, SA); 2E..EE90..RHD..5F..XL..GEN NEW ZEALAND SPEC OR W(HOT AIR INTAKE) |
17881-10033 |
US $4.89 |
||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[10.1991 - 08.1993] 2E..EE90..GL;2E..EE90..XL..SA;2E..EE90..LHD..5F..XL..GEN;2E..EE90..(3FC,4F)..(GEN, SA) |
17881-10033 |
US $4.89 |
||
|
9011906357
|
9011906357
90119-06357 BOLT WWASHER |
90119-06357 |
US $1.24 |
||
|
9161161018
|
9161161018
91611-61018
Bolt (For Transfer Case)Cover No.2
|
91611-61018 |
— | ||
| replacement | |||||
|
9161161018
|
9161161018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
|
9166140828
|
9166140828
91661-40828
New Genuine Part
|
91661-40828 |
— | ||
