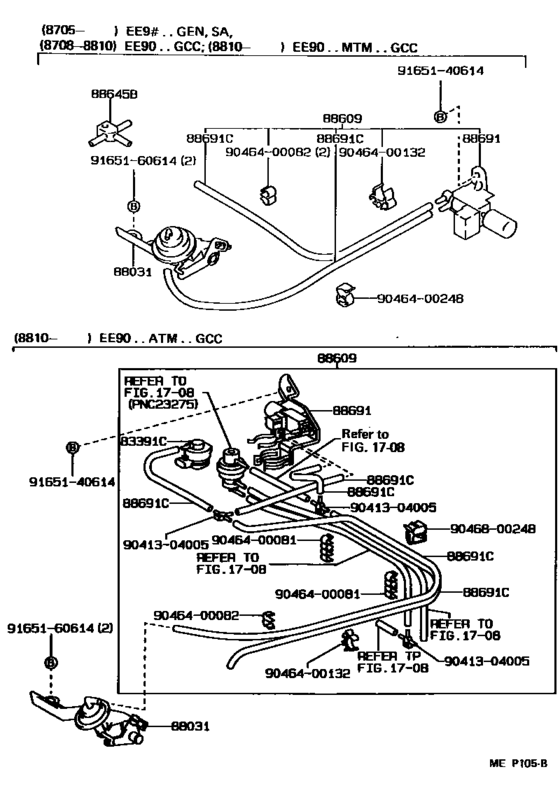

Heating & Air Conditioning - Vacuum Piping ([05.1987 - ] (8705- )EE9#) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- EE90
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-10010 Actuator Set, Idle-UpIDLE-UP [05.1987 - 08.1993] EE9# |
88031-10010 |
US $81.54 |
||
|
88609
|
88609
88609-12420
Device Sub-Assy, Idle Up
[05.1987 - 08.1993] EE9#..RHD |
88609-12420 |
— | ||
|
88645B
|
88645B
90413-04005 Way, 3, No.1 (For Front Drive Shift)[05.1987 - 08.1989] EE9#..GCC,GEN |
90413-04005 |
from US $3.04 |
||
|
88691
|
88691
88691-20040
Valve, Magnet (For Idle Up Device)
[05.1987 - 05.1992] AE9#,EE9#..RHD..(GL,SR5,STD,XL)..(ARL,GEN) |
88691-20040 |
— | ||
|
88691C
|
88691C
90999-92003
Hose, Breather (For Transfer Case)
[05.1987 - 05.1992] EE9#..RHD..GEN L=600 |
90999-92003 |
— | ||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400132
|
9046400132
90464-00132 New Genuine Part |
90464-00132 |
US $3.20 |
||
|
9046400248
|
9046400248
90464-00248 New Genuine Part |
90464-00248 |
US $1.89 |
||
|
9046800248
|
9046800248
90468-00248
New Genuine Part
|
90468-00248 |
— | ||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
