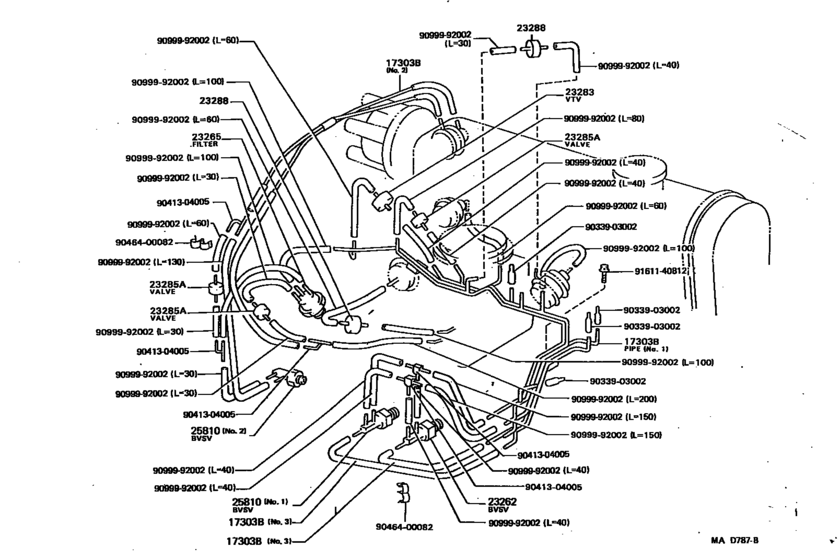

Vacuum Piping ([08.1989 - ] (8908- )2E) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- EE90
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11051 Pipe Sub-Assy, Air, No.1AIR, NO.1 [05.1987 - 03.1988] 2E..EE90..RHD NEW ZEALAND SPEC,NO.1 |
17303-11051 |
US $20.82 |
||
|
17303B
|
17303B
17303-11052 Pipe Sub-Assy, Air, No.1AIR, NO.1 [03.1988 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC,NO.1 |
17303-11052 |
US $23.88 |
||
|
17303B
|
17303B
17303-11300 Pipe Sub-Assy, Air, No.1[05.1987 - 06.1987] 2E..EE90..LHD; 2E..EE90..RHD W(POWER STEERING) |
17303-11300 |
US $15 |
||
| replacement | |||||
|
17303B
|
17303B
17303-11301 Pipe Sub-Assy, Air, No.1[05.1987 - 06.1987] 2E..EE90..LHD; 2E..EE90..RHD W(POWER STEERING) |
17303-11301 |
US $14.56 |
||
|
17303B
|
17303B
17303-11301 Pipe Sub-Assy, Air, No.1[06.1987 - 08.1989] 2E..EE97;2E..EE90..LHD; 2E..EE90..RHD..GEN W(POWER STEERING) |
17303-11301 |
US $14.56 |
||
|
23262
|
23262
25820-11020
Valve, Bimetal Vacuum Switching, No.1
[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC,NO.1 |
25820-11020 |
— | ||
|
23262
|
23262
90925-05035 Valve, Bimetal Vacuum Switching, No.1[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC,NO.2 |
90925-05035 |
from US $40.89 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[05.1987 - 08.1989] 2E..EE9# |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1987 - 08.1989] 2E..EE9# |
90917-11027 |
from US $23.71 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1989 - 06.1990] 4AGE..AE92; 2E..EE9#..GCC,GEN |
90917-11027 |
from US $23.71 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[05.1987 - 08.1989] 2E..EE90..RHD..GEN NEW ZEALAND SPEC |
90917-10049 |
from US $5.97 |
||
|
23288
|
23288
90925-04006 Jet(For Opener)[05.1987 - 06.1990] 2E..EE9# |
90925-04006 |
US $15.90 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $2.88 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
