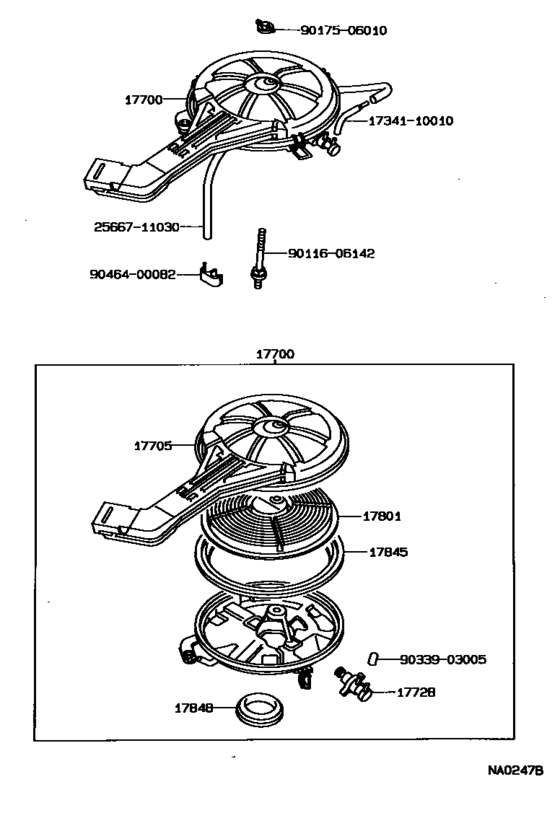

Air Cleaner ([08.1987 - 08.1989] (8708-8908)2E..EE96) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE96
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1987
- To
- 09.1991
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-10110 Cleaner Assy, Air[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
17700-10110 |
US $423.70 |
||
|
17700
|
17700
17700-10111 Cleaner Assy, Air[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
17700-10111 |
US $428.06 |
||
|
17700
|
17700
17700-11410 Cleaner Assy, Air[08.1987 - 08.1989] 2E..EE96 |
17700-11410 |
US $409.14 |
||
|
17700
|
17700
17700-11560 Cleaner Assy, Air[08.1989 - 09.1991] 2E..EE96 |
17700-11560 |
US $410.59 |
||
|
17705
|
17705
17705-10090
Cap Sub-Assy, Air Cleaner
[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
17705-10090 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-11190 Cap Sub-Assy, Air CleanerAIR CLEANER [08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
17705-11190 |
US $70.18 |
||
|
17705
|
17705
17705-11170 Cap Sub-Assy, Air Cleaner[05.1987 - 05.1989] 2E..EE90,96,97 |
17705-11170 |
US $260.62 |
||
| replacement | |||||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[05.1987 - 05.1989] 2E..EE90,96,97 |
17705-11360 |
— | ||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[08.1989 - 09.1991] 2E..EE90,96,97 |
17705-11360 |
— | ||
|
17728
|
17728
17728-11050 Valve, Thermostatic[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
17728-11050 |
US $90.27 |
||
|
17728
|
17728
17728-11060
Valve, Thermostatic
[08.1987 - 09.1991] 2E,3E..EE96,98 |
17728-11060 |
— | ||
|
17801
|
17801
17801-10030
Element Sub-Assy, Air Cleaner Filter
[05.1987 - 09.1991] 2E..EE90,96,97 |
17801-10030 |
— | ||
| replacement | |||||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[05.1987 - 09.1991] 2E..EE90,96,97 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[05.1987 - 09.1991] 2E,3E..EE9# |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[08.1989 - 09.1991] 2E,3E..EE9# |
17848-10021 |
US $5.24 |
||
|
17848
|
17848
17848-15010
Gasket, Air Cleaner To Carburetor
[05.1987 - 05.1989] 2E,3E..EE9# |
17848-15010 |
— | ||
|
1734110010
|
1734110010
17341-10010 Hose, No.1(For Air Injection System) |
17341-10010 |
US $12.06 |
||
|
2566711030
|
2566711030
25667-11030 New Genuine Part |
25667-11030 |
US $4.08 |
||
|
9011606142
|
9011606142
90116-06142 Bolt, Stud(For Air Cleaner Setting) |
90116-06142 |
US $2.53 |
||
|
9017506010
|
9017506010
90175-06010
Nut, Wing(For Air Cleaner)
|
90175-06010 |
— | ||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
US $1.76 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.60 |
||
