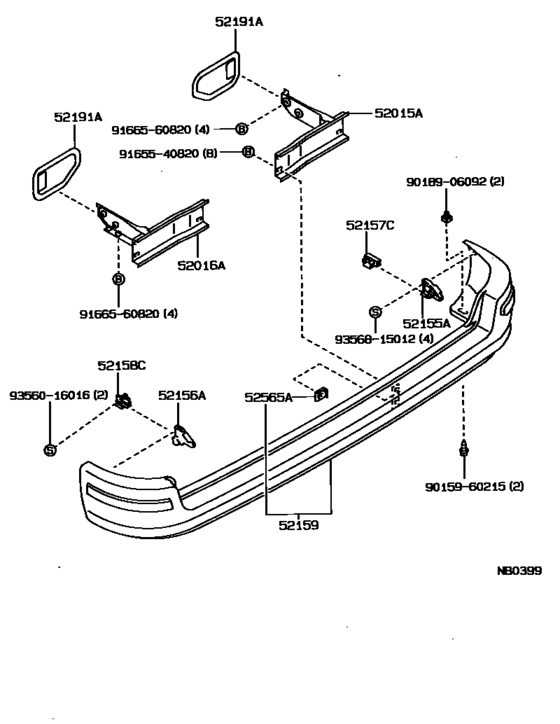

Rear Bumper & Bumper Stay ([08.1987 - ] (8708- )CE96,EE96,98) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE96
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1987
- To
- 09.1991
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52015A
|
52015A
52015-13070 Arm Sub-Assy, Rear Bumper, Rh[08.1987 - 09.1991] CE96,97,EE96,97,98 |
52015-13070 |
US $49.07 |
||
|
52016A
|
52016A
52016-13060 Arm Sub-Assy, Rear Bumper, Lh[08.1987 - 09.1991] CE96,97,EE96,97,98 |
52016-13060 |
US $49.07 |
||
|
52155A
|
52155A
52155-13030 Support, Rear Bumper Side, Rh[08.1987 - 09.1991] AE91,CE96,97,EE96,97,98..V,WG |
52155-13030 |
US $8.88 |
||
|
52156A
|
52156A
52156-13030 Support, Rear Bumper Side, Lh[08.1987 - 09.1991] AE91,CE96,97,EE96,97,98..V,WG |
52156-13030 |
US $8.88 |
||
|
52157C
|
52157C
52157-13020 Support, Rear Bumper Side, No.2 Rh[08.1987 - 09.1991] AE91,CE96,97,EE96,97,98..V,WG |
52157-13020 |
US $4.66 |
||
|
52158C
|
52158C
52158-13020 Support, Rear Bumper Side, No.2 Lh[08.1987 - 09.1991] AE91,CE96,97,EE96,97,98..V,WG |
52158-13020 |
US $4.66 |
||
|
52159
|
52159
52159-13020
Cover, Rear Bumper
[08.1987 - 09.1991] AE91,CE96,97,EE96,97,98..V,WG |
52159-13020 |
— | ||
|
52191A
|
52191A
52191-13090 Seal, Rear Bumper Arm[08.1987 - 09.1991] CE96,97,EE96,97,98 右側 |
52191-13090 |
US $19.22 |
||
|
52191A
|
52191A
52192-13080 Seal, Rear Bumper Arm[08.1987 - 09.1991] CE96,97,EE96,97,98 左側 |
52192-13080 |
US $19.22 |
||
|
52565A
|
52565A
52565-12040 Retainer, Front Bumper, Lower Center[05.1987 - 05.1989] AE91,92,CE96,97,EE9#..3D,5D,V,WG |
52565-12040 |
US $4.32 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.12 |
||
|
9018906092
|
9018906092
90189-06092 New Genuine Part |
90189-06092 |
US $1.75 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9166560820
|
9166560820
91665-60820
New Genuine Part
|
91665-60820 |
— | ||
| replacement | |||||
|
9166560820
|
9166560820
91661-60816 Bolt |
91661-60816 |
US $2.08 |
||
|
9356016016
|
9356016016
93560-16016 SCREW |
93560-16016 |
US $1.05 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
