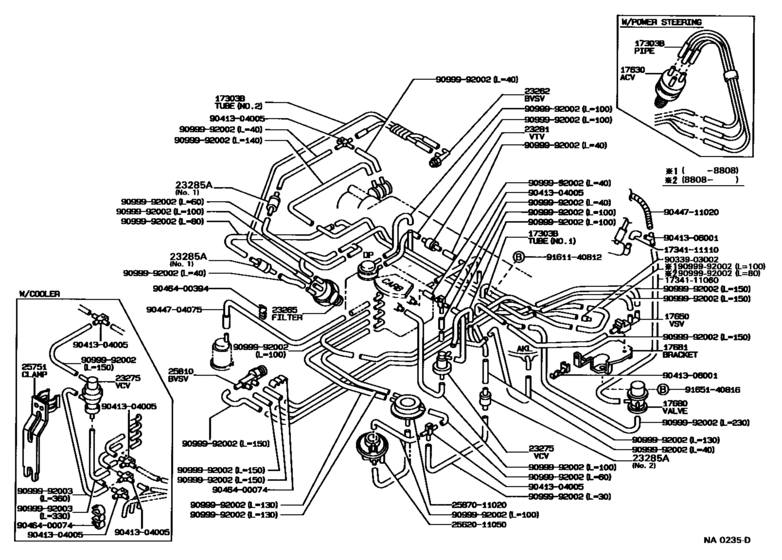

Vacuum Piping ([08.1987 - 08.1989] (8708-8908)2E..EE96) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE96
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1987
- To
- 09.1991
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11040 Pipe Sub-Assy, Air, No.1[08.1987 - 07.1988] 2E..EE96 LPG ﾊﾞﾝ,ＮＯ．１ |
17303-11040 |
US $60.72 |
||
|
17303B
|
17303B
17303-11210 Pipe Sub-Assy, Air, No.1[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ,ＮＯ．２ |
17303-11210 |
US $15.87 |
||
|
17303B
|
17303B
17303-11270 Pipe Sub-Assy, Air, No.1[08.1987 - 08.1988] 2E..EE96 |
17303-11270 |
US $69.89 |
||
|
17303B
|
17303B
17303-11310 Pipe Sub-Assy, Air, No.1[08.1988 - 08.1989] 2E,3E..EE96,98 |
17303-11310 |
US $14.71 |
||
|
17303B
|
17303B
17303-11340 Pipe Sub-Assy, Air, No.1[08.1987 - 08.1989] 2E..EE96 ＮＯ．２ |
17303-11340 |
US $14.56 |
||
|
17303B
|
17303B
17303-11350 Pipe Sub-Assy, Air, No.1[08.1989 - 09.1991] 2E,3E..EE96,98 NO.2 |
17303-11350 |
US $11.65 |
||
|
17303B
|
17303B
17303-11370 Pipe Sub-Assy, Air, No.1[08.1988 - 08.1989] 2E..EE96 ＮＯ．１ |
17303-11370 |
US $78.62 |
||
|
17303B
|
17303B
17303-11510 Pipe Sub-Assy, Air, No.1[08.1989 - 09.1991] 2E,3E..EE96,98 NO.1 |
17303-11510 |
US $39.02 |
||
|
17303B
|
17303B
17303-11540 Pipe Sub-Assy, Air, No.1[08.1989 - 08.1990] 2E..EE96..4F LPG ﾊﾞﾝ,ＮＯ．１ |
17303-11540 |
US $82.99 |
||
|
17303B
|
17303B
17303-11541 Pipe Sub-Assy, Air, No.1[08.1989 - 09.1991] 2E..EE96..4F ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) & LPG ﾊﾞﾝ |
17303-11541 |
US $16.31 |
||
|
17630
|
17630
17630-28020 Valve Assy, Air Control[08.1988 - 05.1989] 2E,3E..EE96,97,98;2E..EE90..FXD,FXL,TX,XE |
17630-28020 |
US $205.30 |
||
|
17650
|
17650
89470-12030 Valve Assy, Vacuum Switching[08.1987 - 08.1989] 2E..EE96 |
89470-12030 |
US $109.20 |
||
|
17650
|
17650
90910-12008 Valve Assy, Vacuum Switching[08.1989 - 09.1991] 2E,3E..EE96,98 ＮＯ．１ |
90910-12008 |
US $62.46 |
||
| replacement | |||||
|
17650
|
17650
90910-12009 Valve Assy, Vacuum Switching[08.1989 - 09.1991] 2E,3E..EE96,98 ＮＯ．１ |
90910-12009 |
US $62.46 |
||
|
17650
|
17650
90910-12009 Valve Assy, Vacuum Switching[08.1989 - 09.1991] 2E,3E..EE9# ＮＯ．２ |
90910-12009 |
US $62.46 |
||
|
17680
|
17680
17680-11010 Valve Assy, Mixture Control[08.1987 - 08.1989] 2E,3E..EE96,98 |
17680-11010 |
US $196.56 |
||
|
17681
|
17681
17681-11010 Bracket, Mixture Control Valve[08.1987 - 08.1989] 2E,3E..EE96,98 |
17681-11010 |
US $11.79 |
||
|
23262
|
23262
25820-11040 Valve, Bimetal Vacuum Switching, No.1[08.1989 - 09.1991] 2E..EE96; 2E..EE97; 2E,3E..EE90,98 |
25820-11040 |
from US $60.78 |
||
|
23262
|
23262
90925-05035 Valve, Bimetal Vacuum Switching, No.1[08.1987 - 08.1989] 2E..EE96 ＮＯ．２ |
90925-05035 |
from US $40.89 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
90917-11027 |
from US $23.71 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1987 - 05.1989] 2E,3E..EE96,98; 4AGE,5AF..AE91,92 |
90917-11027 |
from US $23.71 |
||
|
23275
|
23275
90925-03156
Valve, Vacuum Control, No.1
[05.1987 - 10.1987] 2E,3E..EE9# |
90925-03156 |
— | ||
|
23275
|
23275
90925-03164 Valve, Vacuum Control, No.1[05.1987 - 05.1989] 2E,3E..EE9#..MTM ｱﾘ(ｴｱｺﾝ) |
90925-03164 |
US $68.87 |
||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1987 - 08.1989] 2E..EE96 ＮＯ．１ |
90925-01014 |
— | ||
|
23281
|
23281
90925-01015
Valve, Vacuum Transmitting, No.1
[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
90925-01015 |
— | ||
| replacement | |||||
|
23281
|
23281
90925-01099
Valve, Vacuum Transmitting, No.1
[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
90925-01099 |
— | ||
|
23281
|
23281
90925-01021 Valve, Vacuum Transmitting, No.1[08.1989 - 09.1991] 3E..EE98;2E..EE96..4F ＮＯ．１ |
90925-01021 |
from US $19.92 |
||
|
23281
|
23281
90925-01099
Valve, Vacuum Transmitting, No.1
[08.1989 - 09.1991] 3E..EE98;2E..EE96..4F ＮＯ．２ |
90925-01099 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[08.1987 - 08.1989] 5AF..AE91;4AF..AE95..5F ｱﾘ(ｴｱｺﾝ); 2E,3E..EE96,98 NO.2 |
90917-10049 |
from US $6.59 |
||
|
25751
|
25751
25751-11020
Clamp, Vacuum Control Valve, No.1
[08.1987 - 10.1987] 2E,3E..EE96,98 |
25751-11020 |
— | ||
|
25810
|
25810
25810-15010 Valve, Bimetal Vacuum Switching, No.1[08.1987 - 08.1989] 2E..EE96 |
25810-15010 |
US $74.26 |
||
|
1734111060
|
1734111060
17341-11060 Hose, No.1(for Air Injection System) |
17341-11060 |
US $17.18 |
||
|
1734111110
|
1734111110
17341-11110 Hose, No.1(for Air Injection System) |
17341-11110 |
US $13.40 |
||
|
2562011050
|
2562011050
25620-11050 Valve Assy, Egr |
25620-11050 |
US $270.82 |
||
|
2587011020
|
2587011020
25870-11020 Modulator Assy, Egr Vacuum |
25870-11020 |
US $100.46 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9041306001
|
9041306001
90413-06001 Way, 3(For Fuel Sub-Tank) |
90413-06001 |
US $10.48 |
||
|
9044704075
|
9044704075
90447-04075 Hose, Fuel, No.1(For Charcoal Canister) |
90447-04075 |
US $32.47 |
||
|
9044711020
|
9044711020
90447-11020 New Genuine Part |
90447-11020 |
US $9.03 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400394
|
9046400394
90464-00394 New Genuine Part |
90464-00394 |
US $3.06 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
