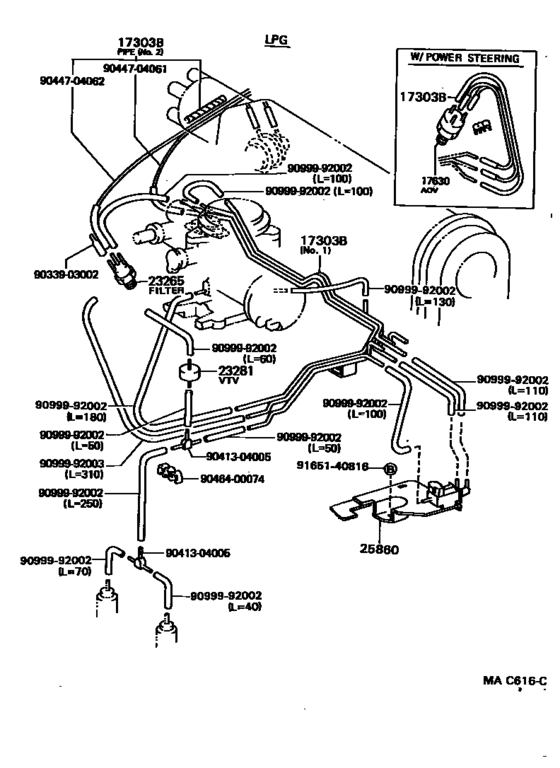

Vacuum Piping ([08.1989 - ] (8908- )2E..EE96) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE96
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1987
- To
- 09.1991
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-11040 Pipe Sub-Assy, Air, No.1[08.1987 - 07.1988] 2E..EE96 LPG ﾊﾞﾝ,ＮＯ．１ |
17303-11040 |
US $60.72 |
||
|
17303B
|
17303B
17303-11210 Pipe Sub-Assy, Air, No.1[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ,ＮＯ．２ |
17303-11210 |
US $15.87 |
||
|
17303B
|
17303B
17303-11270 Pipe Sub-Assy, Air, No.1[08.1987 - 08.1988] 2E..EE96 |
17303-11270 |
US $69.89 |
||
|
17303B
|
17303B
17303-11310 Pipe Sub-Assy, Air, No.1[08.1988 - 08.1989] 2E,3E..EE96,98 |
17303-11310 |
US $14.71 |
||
|
17303B
|
17303B
17303-11340 Pipe Sub-Assy, Air, No.1[08.1987 - 08.1989] 2E..EE96 ＮＯ．２ |
17303-11340 |
US $14.56 |
||
|
17303B
|
17303B
17303-11350 Pipe Sub-Assy, Air, No.1[08.1989 - 09.1991] 2E,3E..EE96,98 NO.2 |
17303-11350 |
US $11.65 |
||
|
17303B
|
17303B
17303-11370 Pipe Sub-Assy, Air, No.1[08.1988 - 08.1989] 2E..EE96 ＮＯ．１ |
17303-11370 |
US $78.62 |
||
|
17303B
|
17303B
17303-11510 Pipe Sub-Assy, Air, No.1[08.1989 - 09.1991] 2E,3E..EE96,98 NO.1 |
17303-11510 |
US $39.02 |
||
|
17303B
|
17303B
17303-11540 Pipe Sub-Assy, Air, No.1[08.1989 - 08.1990] 2E..EE96..4F LPG ﾊﾞﾝ,ＮＯ．１ |
17303-11540 |
US $82.99 |
||
|
17303B
|
17303B
17303-11541 Pipe Sub-Assy, Air, No.1[08.1989 - 09.1991] 2E..EE96..4F ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ) & LPG ﾊﾞﾝ |
17303-11541 |
US $16.31 |
||
|
17630
|
17630
17630-28020 Valve Assy, Air Control[08.1988 - 05.1989] 2E,3E..EE96,97,98;2E..EE90..FXD,FXL,TX,XE |
17630-28020 |
US $205.30 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
90917-11027 |
from US $23.71 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[05.1987 - 05.1989] 2E,3E..EE96,98; 4AGE,5AF..AE91,92 |
90917-11027 |
from US $23.71 |
||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1987 - 08.1989] 2E..EE96 ＮＯ．１ |
90925-01014 |
— | ||
|
23281
|
23281
90925-01015
Valve, Vacuum Transmitting, No.1
[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
90925-01015 |
— | ||
| replacement | |||||
|
23281
|
23281
90925-01099
Valve, Vacuum Transmitting, No.1
[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
90925-01099 |
— | ||
|
23281
|
23281
90925-01021 Valve, Vacuum Transmitting, No.1[08.1989 - 09.1991] 3E..EE98;2E..EE96..4F ＮＯ．１ |
90925-01021 |
from US $19.92 |
||
|
23281
|
23281
90925-01099
Valve, Vacuum Transmitting, No.1
[08.1989 - 09.1991] 3E..EE98;2E..EE96..4F ＮＯ．２ |
90925-01099 |
— | ||
|
25860
|
25860
89470-13010 Valve Assy, Vacuum Switching, No.1[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
89470-13010 |
US $80.08 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
US $2.88 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
US $3.04 |
||
|
9044704061
|
9044704061
90447-04061 Hose, Fuel, No.1(For Charcoal Canister) |
90447-04061 |
US $4.08 |
||
|
9044704062
|
9044704062
90447-04062 New Genuine Part |
90447-04062 |
US $4.37 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
