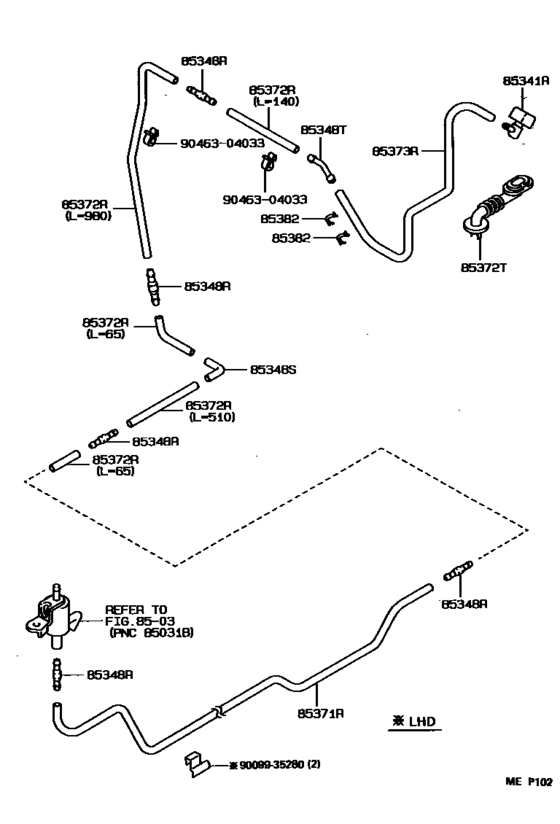

Rear Washer ([08.1987 - ] (8708- )EE97) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- General
- Frame
- EE97
- grade
- XL
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1987
- To
- 08.1991
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85341R
|
85341R
85341-13030
Nozzle Assy, Washer
[08.1987 - 07.1990] AE92,EE9#..WG |
85341-13030 |
— | ||
| replacement | |||||
|
85341R
|
85341R
85341-12230
Nozzle Assy, Washer
[08.1987 - 07.1990] AE92,EE9#..WG |
85341-12230 |
— | ||
|
85348R
|
85348R
85349-89122 Valve Sub-Assy, Washer[08.1987 - 04.1988] EE9#..WG..4F |
85349-89122 |
from US $1.25 |
||
|
85348S
|
85348S
85355-20200 Joint, Windshield Washer Hose, No.1[08.1987 - 08.1991] EE97 |
85355-20200 |
from US $1.03 |
||
|
85348T
|
85348T
85355-20080
Joint, Rear Washer Hose, No.1
[08.1987 - 08.1989] AE95,EE9#..WG |
85355-20080 |
— | ||
|
85371R
|
85371R
90099-33570
Hose, Rear Washer (From Motor To Joint)
[08.1987 - 08.1991] EE97 L=3705 |
90099-33570 |
— | ||
| replacement | |||||
|
85371R
|
85371R
90099-33595
Hose, Rear Washer (From Joint To Joint), No.1
[08.1987 - 08.1991] EE97 L=3705 |
90099-33595 |
— | ||
|
85372R
|
85372R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1987 - 07.1990] AE92,EE9#..WG L=1450 |
90099-33080 |
US $9.43 |
||
|
85372R
|
85372R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[08.1987 - 07.1990] AE92,EE9#..WG |
90446-07001 |
from US $2.10 |
||
|
85372T
|
85372T
85372-13010 Grommet, Washer[08.1987 - 08.1991] EE97 |
85372-13010 |
US $7.43 |
||
|
85373R
|
85373R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[08.1987 - 07.1990] AE92,EE9#..WG L=1450 |
90099-33080 |
US $9.43 |
||
|
85382
|
85382
85382-13010 Cover, Rear Washer Hose[08.1987 - 08.1991] EE97 |
85382-13010 |
US $5.24 |
||
|
9009935280
|
9009935280
90099-35280
New Genuine Part
|
90099-35280 |
— | ||
|
9046304033
|
9046304033
90463-04033 Clamp (For Rear Wiper) |
90463-04033 |
US $3.20 |
||
