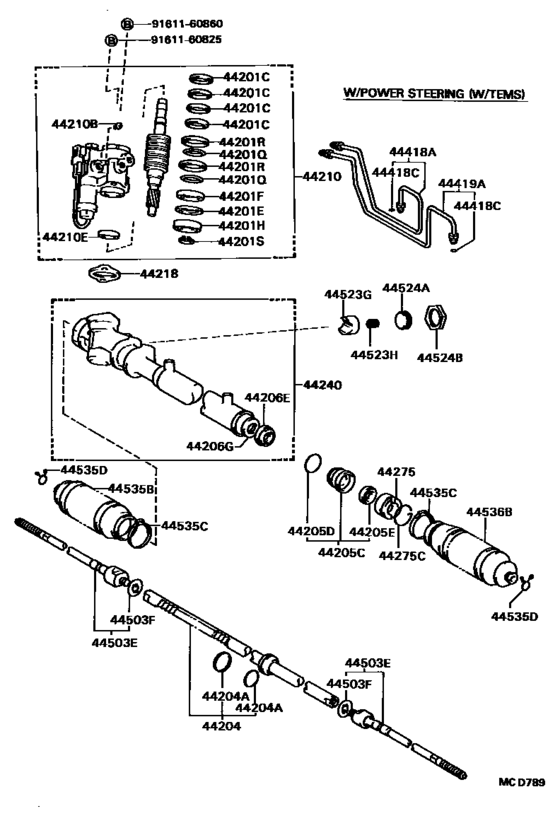

Front Steering Gear & Link ([09.1986 - ] (8609- )TBO) Diagram Toyota COROLLA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- EL31
- grade
- GP
- body
- SED
- ENGINE
- 3ETE
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 09.1986
- To
- 05.1988
- Gear Shift Type
- 5F
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201C
|
44201C
90562-33001 Ring(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO |
90562-33001 |
US $2.18 |
||
| replacement | |||||
|
44201C
|
44201C
90560-33003 Spacer(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO |
90560-33003 |
from US $1.40 |
||
|
44201E
|
44201E
90201-30004 Washer, Plate(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO |
90201-30004 |
US $3.35 |
||
|
44201F
|
44201F
90311-26003 Seal, Oil(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO |
90311-26003 |
from US $3.84 |
||
|
44201H
|
44201H
90363-20026
Bearing(For Power Steering Control Valve Upper)
[09.1986 - 05.1988] EL31..TBO |
90363-20026 |
— | ||
|
44201Q
|
44201Q
90301-32004 Ring, O(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO |
90301-32004 |
US $3.64 |
||
|
44201R
|
44201R
90560-35011 Spacer(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO |
90560-35011 |
US $1.89 |
||
|
44201S
|
44201S
96150-02000 Ring, Shaft Snap(For Tension Gear)[09.1986 - 05.1988] EL31..TBO |
96150-02000 |
US $2.72 |
||
|
44204
|
44204
44204-16030 Rack Sub-Assy, Power Steering[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
44204-16030 |
US $200.93 |
||
|
44204A
|
44204A
90301-29005 Ring(For Rack Steering Piston)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX INNER |
90301-29005 |
US $2.91 |
||
|
44204A
|
44204A
90562-34002 Ring(For Rack Steering Piston)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX OUTER |
90562-34002 |
US $13.83 |
||
|
44205C
|
44205C
44205-16020 Bush Sub-Assy, Power Steering Rack[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
44205-16020 |
US $39.02 |
||
|
44205D
|
44205D
90301-33004 Ring, O(For Cylinder End Stopper)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90301-33004 |
US $9.43 |
||
|
44205E
|
44205E
90311-22012 Seal, Oil(For Power Steering Rack Bush)[08.1986 - 03.1987] EL3#,NL30..GL,GP,LIM,SR,TX,ZX OD=35 |
90311-22012 |
US $2.77 |
||
| replacement | |||||
|
44205E
|
44205E
90311-22014 Seal, Oil(For Power Steering Rack Bush)[08.1986 - 03.1987] EL3#,NL30..GL,GP,LIM,SR,TX,ZX OD=35 |
90311-22014 |
from US $1.75 |
||
|
44205E
|
44205E
90311-22014 Seal, Oil(For Power Steering Rack Bush)[03.1987 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX OD=35 |
90311-22014 |
from US $1.75 |
||
|
44206E
|
44206E
90311-22011 Seal, Oil, No.1(For Power Steering Cylinder Tube)[05.1986 - 03.1987] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90311-22011 |
US $2.91 |
||
| replacement | |||||
|
44206E
|
44206E
90311-22015 Seal, Oil, No.1(For Power Steering Cylinder Tube)[05.1986 - 03.1987] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90311-22015 |
US $3.93 |
||
|
44206E
|
44206E
90311-22013 Seal, Oil, No.1(For Power Steering Cylinder Tube)[03.1987 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90311-22013 |
US $2.91 |
||
| replacement | |||||
|
44206E
|
44206E
90311-22015 Seal, Oil, No.1(For Power Steering Cylinder Tube)[03.1987 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90311-22015 |
US $3.93 |
||
|
44206G
|
44206G
90560-23011
Spacer, No.1(For Power Steering Cylinder Tube)
[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90560-23011 |
— | ||
| replacement | |||||
|
44206G
|
44206G
44263-16010
Spacer, No.1(For Power Steering Cylinder Tube)
[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
44263-16010 |
— | ||
|
44210
|
44210
44210-16050 Valve Assy, Power Steering Control[09.1986 - 05.1988] EL31..TBO |
44210-16050 |
US $564.93 |
||
|
44210B
|
44210B
90410-05006
Seat, Union(For Power Steering Control Valve)
[09.1986 - 05.1988] EL31..TBO OD=7.71-7.73 |
90410-05006 |
— | ||
|
44210B
|
44210B
90410-05007 Seat, Union(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO OD=7.69-7.71 |
90410-05007 |
US $2.33 |
||
| replacement | |||||
|
44210B
|
44210B
90410-05006
Seat, Union(For Power Steering Control Valve)
[09.1986 - 05.1988] EL31..TBO OD=7.69-7.71 |
90410-05006 |
— | ||
|
44210E
|
44210E
90311-19005
Seal, Oil(For Power Steering Control Valve)
[09.1986 - 05.1988] EL31..TBO |
90311-19005 |
— | ||
| replacement | |||||
|
44210E
|
44210E
90311-19010 Seal, Oil(For Power Steering Control Valve)[09.1986 - 05.1988] EL31..TBO |
90311-19010 |
from US $3.84 |
||
|
44218
|
44218
44218-16010 Gasket, Valve Housing[09.1986 - 05.1988] EL31..TBO |
44218-16010 |
US $6.12 |
||
|
44240
|
44240
44240-16030 Housing Assy, Power Steering Rack[05.1986 - 05.1988] EL3#..GL,GP,LIM,SR,TX,ZX |
44240-16030 |
US $292.66 |
||
| replacement | |||||
|
44240
|
44240
44240-16031 Housing Assy, Power Steering Rack[05.1986 - 05.1988] EL3#..GL,GP,LIM,SR,TX,ZX |
44240-16031 |
US $294.11 |
||
|
44240
|
44240
44240-16050 Housing Assy, Power Steering Rack[09.1986 - 05.1988] EL31..TBO W/TEMS |
44240-16050 |
US $244.61 |
||
| replacement | |||||
|
44240
|
44240
44240-16051 Housing Assy, Power Steering Rack[09.1986 - 05.1988] EL31..TBO W/TEMS |
44240-16051 |
US $246.06 |
||
|
44275
|
44275
44275-16020 Stopper, Cylinder End[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
44275-16020 |
US $20.24 |
||
|
44275C
|
44275C
90580-18001 Wire(For Cylinder End Stopper)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90580-18001 |
US $1.60 |
||
|
44418A
|
44418A
44418-16030 Tube, Steering Right Turn Pressure[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
44418-16030 |
US $18.78 |
||
|
44418A
|
44418A
44418-16050 Tube, Steering Right Turn Pressure[09.1986 - 05.1988] EL31..TBO W/TEMS |
44418-16050 |
US $18.78 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90301-03001 |
US $2.88 |
||
| replacement | |||||
|
44418C
|
44418C
90080-30023 Ring, O(For Steering Turn Pressure Tube)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90080-30023 |
US $6.41 |
||
|
44419A
|
44419A
44419-16030 Tube, Steering Left Turn Pressure[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
44419-16030 |
US $18.78 |
||
|
44419A
|
44419A
44419-16050 Tube, Steering Left Turn Pressure[09.1986 - 05.1988] EL31..TBO W/TEMS |
44419-16050 |
US $18.78 |
||
|
44503E
|
44503E
45503-19116 End Sub-Assy, Steering Rack(For Power Steering)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
45503-19116 |
US $85.90 |
||
|
44503F
|
44503F
90214-12002
Washer, Claw(For Power Steering Rack End)
[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90214-12002 |
— | ||
|
44523G
|
44523G
45523-10030
Guide, Rack(For Power Steering)
[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
45523-10030 |
— | ||
|
44523H
|
44523H
90501-23075
Spring(For Power Steering Rack Guide)
[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90501-23075 |
— | ||
|
44524A
|
44524A
45524-10030 Cap, Rack Guide Spring(For Power Steering)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
45524-10030 |
US $6.99 |
||
|
44524B
|
44524B
90179-30002 Nut(For Power Steering Rack Guide Cap)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90179-30002 |
US $2.62 |
||
|
44535B
|
44535B
45535-16020 Boot, Steering Rack No.1(For Power Steering)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
45535-16020 |
US $31.16 |
||
|
44535C
|
44535C
90460-48002
Clamp(For Power Steering Rack Boot)
[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX BOOT NO.2 |
90460-48002 |
— | ||
|
44535C
|
44535C
90460-56001 Clamp(For Power Steering Rack Boot)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX BOOT NO.1 |
90460-56001 |
US $6.40 |
||
|
44535D
|
44535D
90467-18003 Clip Or Clamp(For Ventilation Hose)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
90467-18003 |
from US $1.92 |
||
|
44536B
|
44536B
45536-10070 Boot, Steering Rack No.2(For Power Steering)[05.1986 - 05.1988] EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
45536-10070 |
US $26.38 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160860
|
9161160860
91611-60860 Bolt(For Rocker Support Set) |
91611-60860 |
US $1.60 |
||
