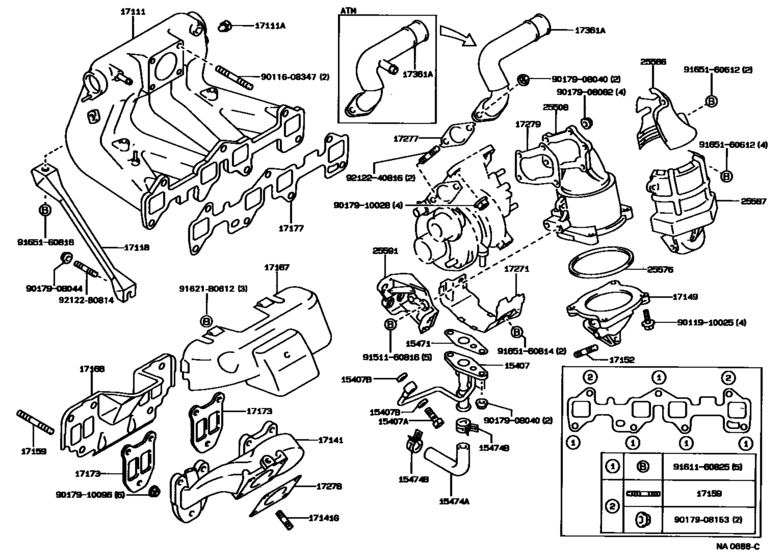

Manifold ([05.1988 - ] (8805- )3ETE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- GP
- body
- SED
- ENGINE
- 3ETE
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 5F
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- TBO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15407
|
15407
15407-11010
Pipe Sub-Assy, Turbo Oil Inlet
[05.1988 - 09.1990] 3ETE..EL31 |
15407-11010 |
— | ||
|
15407A
|
15407A
90401-14091 Bolt, Union(For Turbo Oil Inlet Pipe)[05.1988 - 09.1990] 3ETE..EL31 |
90401-14091 |
US $8.39 |
||
|
15407B
|
15407B
90430-14006 Gasket(For Turbo Oil Inlet Pipe)[05.1988 - 09.1990] 3ETE..EL31 OIL FILTER SIDE |
90430-14006 |
US $1.28 |
||
|
15407B
|
15407B
90430-14235 Gasket, W/head Taper Screw Plug[05.1988 - 09.1990] 3ETE..EL31 BOLT SIDE |
90430-14235 |
US $3.68 |
||
|
15471
|
15471
15471-35010 Gasket, Turbo Oil Inlet[05.1988 - 09.1990] 3ETE..EL31 |
15471-35010 |
US $9.90 |
||
| replacement | |||||
|
15471
|
15471
15471-58010 Gasket, Turbo Oil Inlet[05.1988 - 09.1990] 3ETE..EL31 |
15471-58010 |
from US $2.59 |
||
|
15474A
|
15474A
90910-05188 Hose, Turbo Oil Outlet[05.1988 - 09.1990] 3ETE..EL31 |
90910-05188 |
US $5.53 |
||
|
15474B
|
15474B
90467-26003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[05.1988 - 09.1990] 3ETE..EL31 |
90467-26003 |
— | ||
| replacement | |||||
|
15474B
|
15474B
90467-26007 Clip(For Ventilation Hose No.2)[05.1988 - 09.1990] 3ETE..EL31 |
90467-26007 |
US $4.32 |
||
|
17111
|
17111
17101-11160 Manifold, Intake[05.1988 - 09.1990] 3ETE..EL31 |
17101-11160 |
US $393.12 |
||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90345-51025 |
US $3.36 |
||
|
17118
|
17118
17118-11080 Stay, Manifold[05.1988 - 09.1990] 3EE,3ETE..EL31 |
17118-11080 |
US $34.36 |
||
|
17141
|
17141
17141-11060 Manifold, Exhaust[05.1988 - 09.1990] 3ETE..EL31 |
17141-11060 |
US $340.70 |
||
|
17141G
|
17141G
90116-10121 Bolt, Stud(For Turbocharger)[05.1988 - 09.1990] 3ETE..EL31 |
90116-10121 |
US $2.77 |
||
| replacement | |||||
|
17141G
|
17141G
90116-10219
Bolt, Stud(For Turbocharger)
[05.1988 - 09.1990] 3ETE..EL31 |
90116-10219 |
— | ||
|
17149
|
17149
17149-11010 Extension, Exhaust Manifold[05.1988 - 09.1990] 3ETE..EL31 |
17149-11010 |
US $243.15 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[05.1988 - 09.1990] 3ETE..EL31 |
90116-10017 |
from US $2.92 |
||
|
17159
|
17159
90116-10131
Bolt, Stud(For Manifold To Cylinder Head)
[05.1988 - 09.1990] 3ETE..EL31 EXHAUST MANIFOLD |
90116-10131 |
— | ||
|
17159
|
17159
92132-60825 Bolt, Stud(For Manifold To Cylinder Head)[05.1988 - 09.1990] 2E,3E#..EL3# INTAKE MANIFOLD |
92132-60825 |
US $3.20 |
||
|
17167
|
17167
17167-11070 Insulator, Exhaust Manifold Heat, No.1[05.1988 - 09.1990] 3ETE..EL31 |
17167-11070 |
US $56.35 |
||
|
17168
|
17168
17168-11020 Insulator, Exhaust Manifold Heat, No.2[05.1988 - 09.1990] 3ETE..EL31 |
17168-11020 |
US $44.99 |
||
|
17173
|
17173
17173-11020 Gasket, Exhaust Manifold To Head[05.1988 - 09.1990] 3E#..EL31 |
17173-11020 |
US $9.17 |
||
| replacement | |||||
|
17173
|
17173
17173-11021 Gasket, Exhaust Manifold To Head[05.1988 - 09.1990] 3E#..EL31 |
17173-11021 |
from US $8.95 |
||
|
17177
|
17177
17177-11010 Gasket, Intake Manifold To Head, No.1[05.1988 - 07.1990] 3E#..EL31 |
17177-11010 |
US $11.36 |
||
| replacement | |||||
|
17177
|
17177
17177-11040 Gasket, Intake Manifold To Head, No.1[05.1988 - 07.1990] 3E#..EL31 |
17177-11040 |
US $11.07 |
||
|
17177
|
17177
17177-11011 Gasket, Intake Manifold To Head, No.1[07.1990 - 09.1990] 3E#..EL31 |
17177-11011 |
US $11.36 |
||
| replacement | |||||
|
17177
|
17177
17177-11040 Gasket, Intake Manifold To Head, No.1[07.1990 - 09.1990] 3E#..EL31 |
17177-11040 |
US $11.07 |
||
|
17271
|
17271
17271-11010
Insulator, Turbo, No.1
[05.1988 - 09.1990] 3ETE..EL31 |
17271-11010 |
— | ||
|
17277
|
17277
17277-11010
Gasket, Compressor Outlet
[05.1988 - 09.1990] 3ETE..EL31 |
17277-11010 |
— | ||
| replacement | |||||
|
17277
|
17277
17277-11020 Gasket, Compressor Outlet[05.1988 - 09.1990] 3ETE..EL31 |
17277-11020 |
US $9.28 |
||
|
17278
|
17278
17278-11020 Gasket, Turbo To Exhaust Manifold[05.1988 - 09.1990] 3ETE..EL31 |
17278-11020 |
US $32.32 |
||
|
17279
|
17279
17279-11010 Gasket, Turbine Outlet Elbow[05.1988 - 09.1990] 3ETE..EL31 |
17279-11010 |
US $27.66 |
||
|
17361A
|
17361A
17361-11040 Tube, Air(For Efi)[05.1988 - 09.1990] 3ETE..EL31..5F |
17361-11040 |
US $38.44 |
||
|
25508
|
25508
25508-11060 Converter Sub-Assy, Manifold[05.1988 - 09.1990] 3ETE..EL31 |
25508-11060 |
US $594.05 |
||
|
25576
|
25576
25576-11020 Gasket, Manifold Converter[10.1989 - 09.1990] 2E,3E#..EL3# |
25576-11020 |
US $17.18 |
||
| replacement | |||||
|
25576
|
25576
25576-15020 Gasket, Manifold Converter[10.1989 - 09.1990] 2E,3E#..EL3# |
25576-15020 |
US $14.50 |
||
|
25576
|
25576
25576-15010 Gasket, Manifold Converter[05.1988 - 10.1989] 2E,3E#..EL3# |
25576-15010 |
US $16.16 |
||
| replacement | |||||
|
25576
|
25576
25576-15020 Gasket, Manifold Converter[05.1988 - 10.1989] 2E,3E#..EL3# |
25576-15020 |
US $14.50 |
||
|
25586
|
25586
25586-11040 Insulator Sub-Assy, Manifold Convertor[05.1988 - 09.1990] 3ETE..EL31 |
25586-11040 |
US $17.91 |
||
|
25587
|
25587
25587-11030 Insulator Sub-Assy, Manifold Convertor[05.1988 - 09.1990] 3ETE..EL31 |
25587-11030 |
US $40.62 |
||
|
25591
|
25591
25591-11020 Bracket, Manifold Support[05.1988 - 09.1990] 3ETE..EL31 |
25591-11020 |
US $80.08 |
||
|
91621B0612
|
91621B0612
91621-B0612
New Genuine Part
|
91621-B0612 |
— | ||
| replacement | |||||
|
91621B0612
|
91621B0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
92122B0814
|
92122B0814
92122-B0814 New Genuine Part |
92122-B0814 |
US $2.04 |
||
|
9011608347
|
9011608347
90116-08347 New Genuine Part |
90116-08347 |
US $1.31 |
||
|
9011910025
|
9011910025
90119-10025 Bolt (For Transmission Control Cable Bracket) |
90119-10025 |
US $1.89 |
||
| replacement | |||||
|
9011910025
|
9011910025
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.13 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017908082
|
9017908082
90179-08082 New Genuine Part |
90179-08082 |
US $2.56 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.92 |
||
|
9017910028
|
9017910028
90179-10028 Nut, Exhaust Pipe Set Stud Bolt |
90179-10028 |
from US $2.91 |
||
|
9017910096
|
9017910096
90179-10096 New Genuine Part |
90179-10096 |
US $2.56 |
||
|
9151160816
|
9151160816
91511-60816
BOLT
|
91511-60816 |
— | ||
| replacement | |||||
|
9151160816
|
9151160816
91511-B0816 BOLT |
91511-B0816 |
US $0.98 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9212240816
|
9212240816
92122-40816 Bolt, Stud(For Oil Strainer) |
92122-40816 |
US $2.62 |
||
