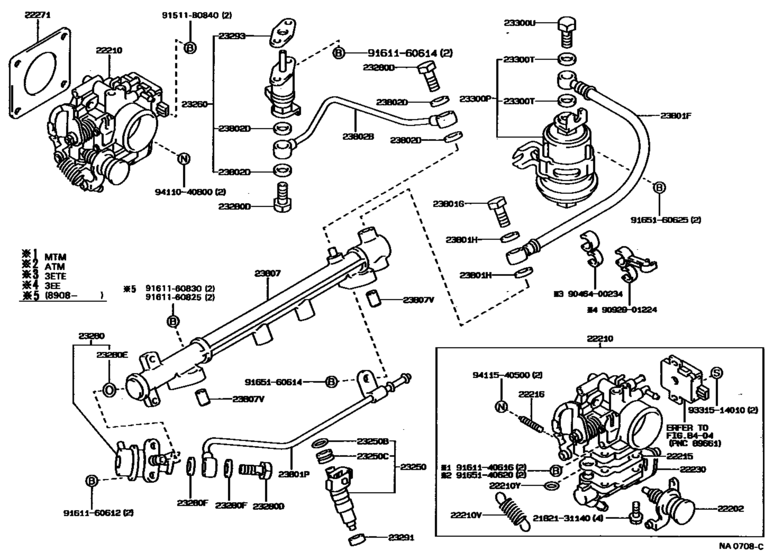

Fuel Injection System ([05.1988 - ] (8805- )3EE,3ETE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SRI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22202
|
22202
22202-11021 Dash Pot Sub-Assy[05.1988 - 09.1990] 3EE,3ETE..EL31..4FC |
22202-11021 |
US $100.46 |
||
|
22210
|
22210
22210-11020 Body Assy, Throttle[05.1988 - 09.1990] 3EE,3ETE..EL31..4FC |
22210-11020 |
US $917.28 |
||
|
22210V
|
22210V
90507-12021
Spring, Tension, W/damper (For Throttle Return)
[05.1988 - 09.1990] 3EE,3ETE..EL31..4FC |
90507-12021 |
— | ||
|
22210Y
|
22210Y
96711-19009 Ring, O(For Oil Level Gage Guide)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
96711-19009 |
from US $1.85 |
||
|
22215
|
22215
22215-11010 Gasket, Throttle Body Cover[05.1988 - 12.1989] 3EE,3ETE..EL31 |
22215-11010 |
US $6.12 |
||
| replacement | |||||
|
22215
|
22215
22215-11110 Gasket, Throttle Body Cover[05.1988 - 12.1989] 3EE,3ETE..EL31 |
22215-11110 |
US $5.42 |
||
|
22215
|
22215
22215-11110 Gasket, Throttle Body Cover[12.1989 - 09.1990] 3EE,3ETE..EL31 |
22215-11110 |
US $5.42 |
||
|
22216
|
22216
22216-74010
Screw, Dash Pot Adjusting
[05.1988 - 09.1990] 3EE,3ETE..EL31 |
22216-74010 |
— | ||
|
22230
|
22230
22230-11020
Valve Assy, Auxiliary Air
[05.1988 - 09.1990] 3EE,3ETE..EL31..4FC |
22230-11020 |
— | ||
|
22271
|
22271
22271-11010 Gasket, Throttle Body[05.1988 - 12.1989] 3EE,3ETE..EL31 |
22271-11010 |
US $4.95 |
||
| replacement | |||||
|
22271
|
22271
22271-11011 Gasket, Throttle Body[05.1988 - 12.1989] 3EE,3ETE..EL31 |
22271-11011 |
US $4.66 |
||
|
22271
|
22271
22271-11011 Gasket, Throttle Body[12.1989 - 09.1990] 3EE,3ETE..EL31 |
22271-11011 |
US $4.66 |
||
|
23250
|
23250
23209-11040 Injector Assy, Fuel[05.1988 - 09.1990] 3EE..EL31 |
23209-11040 |
US $275.18 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-19065 Injector Assy, Cold Start Fuel[05.1988 - 12.1989] 3EE,3ETE..EL31 |
23260-19065 |
US $141.23 |
||
| replacement | |||||
|
23260
|
23260
23260-19066 Injector Assy, Cold Start Fuel[05.1988 - 12.1989] 3EE,3ETE..EL31 |
23260-19066 |
US $136.86 |
||
|
23260
|
23260
23260-19066 Injector Assy, Cold Start Fuel[12.1989 - 09.1990] 3EE,3ETE..EL31 |
23260-19066 |
US $136.86 |
||
|
23280
|
23280
23280-11020 Regulator Assy, Fuel Pressure[05.1988 - 07.1989] 3EE..EL31 |
23280-11020 |
US $133.95 |
||
|
23280
|
23280
23280-11021 Regulator Assy, Fuel Pressure[07.1989 - 09.1990] 3EE..EL31 |
23280-11021 |
US $133.95 |
||
|
23280D
|
23280D
90401-08003 Bolt, Union[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90401-08003 |
US $2.24 |
||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90301-07001 |
from US $2.93 |
||
|
23280F
|
23280F
90430-08005 Gasket[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90430-08005 |
US $2.24 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[05.1988 - 09.1990] 3EE,3ETE..EL31 |
23291-41010 |
from US $2.87 |
||
|
23293
|
23293
23293-62020
Gasket(For Surge Tank Cover)
[12.1989 - 09.1990] 3EE,3ETE..EL31 |
23293-62020 |
— | ||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[05.1988 - 12.1989] 3EE,3ETE..EL31 |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[05.1988 - 12.1989] 3EE,3ETE..EL31 |
23293-42010 |
US $5.60 |
||
|
23300P
|
23300P
23300-19075 Filter, Fuel(For Efi)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
23300-19075 |
US $103.38 |
||
| replacement | |||||
|
23300P
|
23300P
23300-19395 Filter, Fuel(For Efi)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
23300-19395 |
US $80.72 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90430-12005 |
from US $0.70 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90401-12097 |
from US $3.08 |
||
|
23801F
|
23801F
90923-01358 Hose, Fuel, No.1[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90923-01358 |
US $31.60 |
||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90401-12097 |
from US $3.08 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90430-12005 |
from US $0.70 |
||
|
23801P
|
23801P
23801-11030 Pipe Sub-Assy, Fuel, No.1[05.1988 - 07.1989] 3EE,3ETE..EL31 |
23801-11030 |
US $36.25 |
||
|
23801P
|
23801P
23801-11040 Pipe Sub-Assy, Fuel, No.1[07.1989 - 09.1990] 3EE,3ETE..EL31 |
23801-11040 |
US $28.25 |
||
|
23802B
|
23802B
23802-11030 Pipe Sub-Assy, Fuel, No.2[05.1988 - 08.1989] 3EE,3ETE..EL31 |
23802-11030 |
US $26.94 |
||
| replacement | |||||
|
23802B
|
23802B
23802-11031 Pipe Sub-Assy, Fuel, No.2[05.1988 - 08.1989] 3EE,3ETE..EL31 |
23802-11031 |
US $26.35 |
||
|
23802B
|
23802B
23802-11031 Pipe Sub-Assy, Fuel, No.2[08.1989 - 09.1990] 3EE,3ETE..EL31 |
23802-11031 |
US $26.35 |
||
|
23802D
|
23802D
90430-08005 Gasket[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90430-08005 |
US $2.24 |
||
|
23807
|
23807
23807-11010 Pipe Sub-Assy, Fuel Delivery[05.1988 - 04.1989] 3EE,3ETE..EL31 |
23807-11010 |
US $10.19 |
||
| replacements | |||||
|
23807
|
23807
23807-11030 Pipe Sub-Assy, Fuel Delivery[05.1988 - 04.1989] 3EE,3ETE..EL31 |
23807-11030 |
US $199.47 |
||
|
23807
|
23807
90561-08036 Spacer, No.1(For Delivery Pipe)[05.1988 - 04.1989] 3EE,3ETE..EL31 |
90561-08036 |
from US $1.25 |
||
|
23807
|
23807
91611-60830 Bolt(For Clutch Release Cylinder Setting)[05.1988 - 04.1989] 3EE,3ETE..EL31 |
91611-60830 |
from US $1.50 |
||
|
23807
|
23807
23807-11030 Pipe Sub-Assy, Fuel Delivery[06.1990 - 09.1990] 3EE,3ETE..EL31 |
23807-11030 |
US $199.47 |
||
|
23807V
|
23807V
90253-11021 Pin, Ring[05.1988 - 08.1989] 3EE,3ETE..EL31 |
90253-11021 |
from US $1.50 |
||
|
23807V
|
23807V
90561-08036 Spacer, No.1(For Delivery Pipe)[04.1989 - 09.1990] 3EE,3ETE..EL31 |
90561-08036 |
from US $1.25 |
||
|
91511B0840
|
91511B0840
91511-B0840
Bolt(For Alternator)
|
91511-B0840 |
— | ||
| replacement | |||||
|
91511B0840
|
91511B0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.34 |
||
|
9046400234
|
9046400234
90464-00234
New Genuine Part
|
90464-00234 |
— | ||
|
9092901224
|
9092901224
90929-01224 New Genuine Part |
90929-01224 |
US $3.20 |
||
|
9161140616
|
9161140616
91611-40616
Bolt, Hexagon(For Steering Column Bracket)
|
91611-40616 |
— | ||
| replacement | |||||
|
9161140616
|
9161140616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.88 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160830
|
9161160830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165160625
|
9165160625
91651-60625 New Genuine Part |
91651-60625 |
US $2.56 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
