Fuel Injection System ([05.1988 - ] (8805- )3EE,3ETE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SRI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|

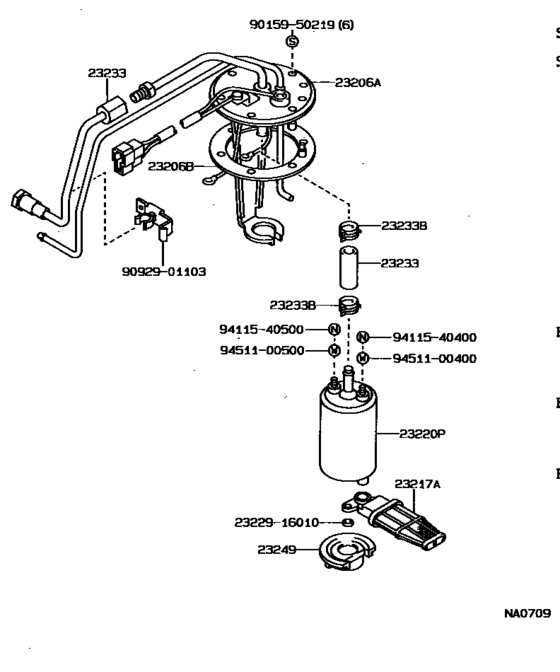

23206A
|
23206A
23206-11030
Bracket, Fuel Pump
[05.1988 - 08.1989] 3EE,3ETE..EL31 |
23206-11030 |
— | ||
| replacement | |||||
|
23206A
|
23206A
23206-11050
Bracket, Fuel Pump
[05.1988 - 08.1989] 3EE,3ETE..EL31 |
23206-11050 |
— | ||
|
23206A
|
23206A
23206-11050
Bracket, Fuel Pump
[08.1989 - 09.1990] 3EE,3ETE..EL31 |
23206-11050 |
— | ||
|
23206B
|
23206B
77169-16020
Gasket, Fuel Pump Bracket
[05.1988 - 09.1990] 3EE,3ETE..EL31 |
77169-16020 |
— | ||
|
23217A
|
23217A
23217-16030 Filter, Fuel Pump[05.1988 - 09.1990] 3EE,3ETE..EL31 ＮＩＰＰＯＮＤＥＮＳＯ |
23217-16030 |
US $9.44 |
||
|
23217A
|
23217A
23217-16043 Filter, Fuel Pump[05.1988 - 09.1990] 3EE,3ETE..EL31 ＡＩＳＡＮ |
23217-16043 |
US $8 |
||
|
23220P
|
23220P
23220-16084
Pump Assy, Fuel
[05.1988 - 09.1990] 3EE,3ETE..EL31 ＡＩＳＡＮ |
23220-16084 |
— | ||
| replacement | |||||
|
23220P
|
23220P
23220-16430 Pump Assy, FuelFUEL [05.1988 - 09.1990] 3EE,3ETE..EL31 ＡＩＳＡＮ |
23220-16430 |
US $501.45 |
||
|
23220P
|
23220P
23220-43070 Pump Assy, Fuel[05.1988 - 09.1990] 3EE,3ETE..EL31 ＮＩＰＰＯＮＤＥＮＳＯ |
23220-43070 |
US $534.80 |
||
|
23233
|
23233
23091-11020 Hose, Fuel Pump[05.1988 - 09.1990] 3EE,3ETE..EL31 BRACKET TO FUEL PIPE |
23091-11020 |
US $94.64 |
||
|
23233
|
23233
23239-16010 Hose, Fuel Pump[05.1988 - 09.1990] 3EE,3ETE..EL31 PUMP TO BRACKET |
23239-16010 |
from US $1.72 |
||
|
23233B
|
23233B
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[05.1988 - 10.1989] 3EE,3ETE..EL31 |
90467-13001 |
— | ||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[05.1988 - 10.1989] 3EE,3ETE..EL31 |
96135-51300 |
from US $1.92 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[10.1989 - 09.1990] 3EE,3ETE..EL31 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[10.1989 - 09.1990] 3EE,3ETE..EL31 |
96135-51300 |
from US $1.92 |
||
|
23249
|
23249
23249-74150 Rubber, Cushion(For Fuel Pump)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
23249-74150 |
US $17.63 |
||
|
2322916010
|
2322916010
23229-16010 Clip(For Fuel Pump Filter) |
23229-16010 |
from US $0.88 |
||
| replacement | |||||
|
2322916010
|
2322916010
23219-03010 Clip(For Fuel Pump Filter) |
23219-03010 |
US $2.55 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9092901103
|
9092901103
90929-01103 New Genuine Part |
90929-01103 |
US $4.22 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
