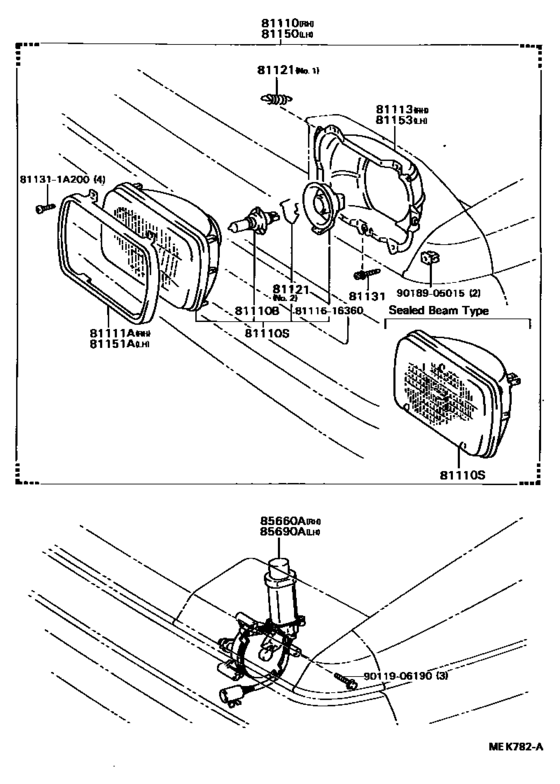

Headlamp ([05.1988 - ] (8805- )AR,GP,SRI) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SRI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-16360 Headlamp Assy, Rh[05.1988 - 09.1990] EL31..EFI,TBO |
81110-16360 |
US $256.26 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[05.1988 - 09.1990] EL31,NL30..GP,SRI,ZX １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [05.1988 - 09.1990] EL31,NL30..GP,SRI,ZX １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $30.40 |
||
|
81110S
|
81110S
90981-04037 Sealed Beam Unit, No.1[05.1988 - 09.1990] EL31..EFI,TBO １２Ｖ ６０／５５Ｗ，＊ＷＳＢ |
90981-04037 |
US $180.54 |
||
|
81111A
|
81111A
81111-14710 Ring, Sealed Beam Retaining, No.1 Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
81111-14710 |
US $23 |
||
|
81113
|
81113
81113-16360 Ring, Sealed Beam Mounting, No.1 Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
81113-16360 |
US $15.87 |
||
|
81121
|
81121
81121-16360 Spring, Headlamp Tension[05.1988 - 09.1990] EL31..EFI,TBO ＮＯ．２ |
81121-16360 |
US $3.93 |
||
|
81121
|
81121
81121-16400 Spring, Headlamp Tension[05.1988 - 09.1990] EL31..EFI,TBO ＮＯ．１; EL31..AR NO.1 |
81121-16400 |
US $3.93 |
||
|
81131
|
81131
81131-14710 Screw, Headlamp Adjusting[05.1988 - 09.1990] EL31..AR,GP,SRI |
81131-14710 |
US $2.33 |
||
|
81150
|
81150
81150-16360 Headlamp Assy, Lh[05.1988 - 09.1990] EL31..EFI,TBO |
81150-16360 |
US $256.26 |
||
|
81151A
|
81151A
81111-14710 Ring, Sealed Beam Retaining, No.1 Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
81111-14710 |
US $23 |
||
|
81153
|
81153
81153-16360 Ring, Sealed Beam Mounting, No.1 Lh[05.1988 - 08.1988] EL31..EFI,TBO |
81153-16360 |
US $14.71 |
||
|
85660A
|
85660A
85660-16020 Motor Assy, Light Retractor, Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
85660-16020 |
US $394.58 |
||
|
85690A
|
85690A
85690-16020 Motor Assy, Light Retractor, Lh[05.1988 - 09.1990] EL31..AR,GP,SRI |
85690-16020 |
US $394.58 |
||
|
811311A200
|
811311A200
81131-1A200 Screw, Headlamp Adjusting |
81131-1A200 |
US $3.79 |
||
|
8111616360
|
8111616360
81116-16360 Cover, Sealed Beam Unit |
81116-16360 |
US $2.77 |
||
|
9011906190
|
9011906190
90119-06190
New Genuine Part
|
90119-06190 |
— | ||
|
9018905015
|
9018905015
90189-05015 Nut, Headlamp Self Locking |
90189-05015 |
US $2.56 |
||
