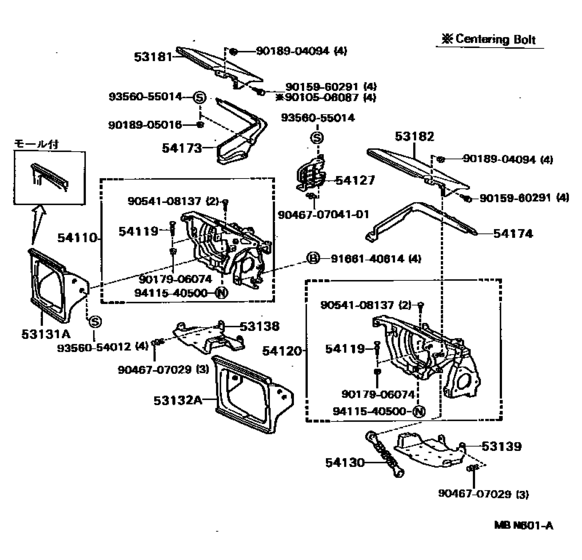

Radiator Grille ([05.1988 - ] (8805- )AR,GP,SRI) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SRI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53131A
|
53131A
53031-16090 Door, Headlamp, Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
53031-16090 |
US $61.59 |
||
|
53132A
|
53132A
53032-16090 Door, Headlamp, Lh[05.1988 - 09.1990] EL31..AR,GP,SRI |
53032-16090 |
US $61.59 |
||
|
53138
|
53138
53138-16020 Protector, Headlamp Door, Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
53138-16020 |
US $17.04 |
||
|
53139
|
53139
53139-16020 Protector, Headlamp Door, Lh[05.1988 - 09.1990] EL31..AR,GP,SRI |
53139-16020 |
US $17.04 |
||
|
53181
|
53181
53181-16010 Cover, Headlamp, Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
53181-16010 |
US $46.30 |
||
|
53182
|
53182
53182-16010 Cover, Headlamp, Lh[05.1988 - 09.1990] EL31..AR,GP,SRI |
53182-16010 |
US $46.30 |
||
|
54110
|
54110
54110-16011 Bracket Assy, Retractable Headlamp, Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
54110-16011 |
US $238.78 |
||
|
54119
|
54119
54119-14010
Stop, Retractable Headlamp Link
[05.1988 - 09.1990] EL31..AR,GP,SRI |
54119-14010 |
— | ||
|
54120
|
54120
54120-16010 Bracket Sub-Assy, Retractable Headlamp, Lh[05.1988 - 09.1990] EL31..AR,GP,SRI |
54120-16010 |
US $238.78 |
||
|
54127
|
54127
54127-16010 Protector, Retractable Headlamp, No.2 Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
54127-16010 |
US $19.66 |
||
|
54130
|
54130
54130-16010 Rod Assy, Retractable Headlamp[05.1988 - 09.1990] EL31..AR,GP,SRI |
54130-16010 |
US $22.42 |
||
|
54173
|
54173
54173-16010 Shield, Retractable Headlamp, Rh[05.1988 - 09.1990] EL31..AR,GP,SRI |
54173-16010 |
US $27.96 |
||
|
54174
|
54174
54174-16010 Shield, Retractable Headlamp, Lh[05.1988 - 09.1990] EL31..AR,GP,SRI |
54174-16010 |
US $27.96 |
||
|
9010506087
|
9010506087
90105-06087 New Genuine Part |
90105-06087 |
US $1.75 |
||
| replacement | |||||
|
9010506087
|
9010506087
90159-60291 New Genuine Part |
90159-60291 |
US $1.75 |
||
|
9015960291
|
9015960291
90159-60291 New Genuine Part |
90159-60291 |
US $1.75 |
||
|
9017906074
|
9017906074
90179-06074 Nut(For Suspension Control Oil Cooler) |
90179-06074 |
US $1.44 |
||
|
9018904094
|
9018904094
90189-04094 New Genuine Part |
90189-04094 |
US $1.60 |
||
|
9018905016
|
9018905016
90189-05016 Grommet, Screw |
90189-05016 |
from US $3.36 |
||
|
9046707029
|
9046707029
90467-07029
Clip, Luggage Trim, Rear
|
90467-07029 |
— | ||
| replacement | |||||
|
9046707029
|
9046707029
90467-07029-01
Clip, Rear Wiper Protector
|
90467-07029-01 |
— | ||
|
9054108137
|
9054108137
90541-08137
Plug, Front Bumper
|
90541-08137 |
— | ||
|
9166140614
|
9166140614
91661-40614
New Genuine Part
|
91661-40614 |
— | ||
| replacement | |||||
|
9166140614
|
9166140614
91661-A0614 New Genuine Part |
91661-A0614 |
US $1.76 |
||
|
9356054012
|
9356054012
93560-54012 Screw |
93560-54012 |
from US $0.70 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.70 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
904670704101
|
904670704101
90467-07041-01
Clip(For Radiator Lower Air Deflector)
|
90467-07041-01 |
— | ||
| replacement | |||||
|
904670704101
|
904670704101
90467-07041-C0 Clip(For Steering Column Cover) |
90467-07041-C0 |
from US $0.96 |
||
