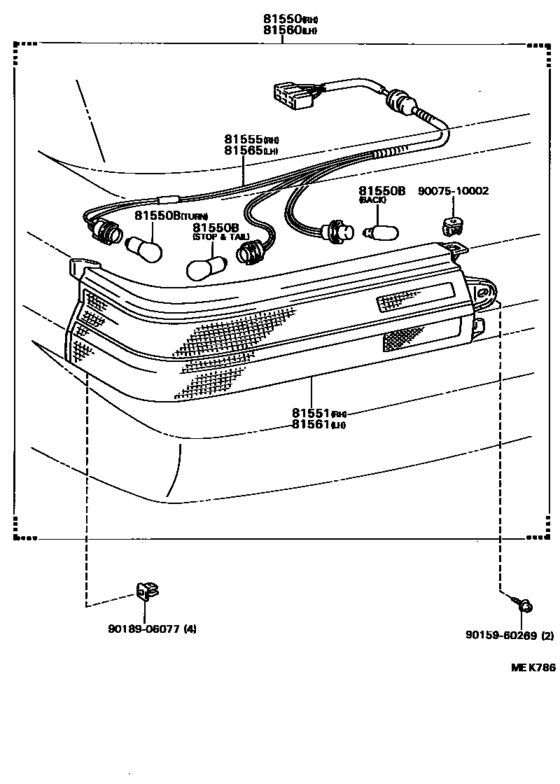

Rear Combination Lamp ([05.1988 - ] (8805- )3DS) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SRI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-16400 Lamp Assy, Rear Combination, Rh[05.1988 - 09.1990] EL3#,NL30..3DS |
81550-16400 |
US $297.02 |
||
|
81550B
|
81550B
90981-11039
Bulb (For License Plate Lamp)
[05.1988 - 09.1990] EL3#,NL30..3DS １２Ｖ １６Ｗ,BACK; EL3#,NL30..5DS １２Ｖ １６Ｗ,BACK |
90981-11039 |
— | ||
| replacement | |||||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[05.1988 - 09.1990] EL3#,NL30..3DS １２Ｖ １６Ｗ,BACK; EL3#,NL30..5DS １２Ｖ １６Ｗ,BACK |
90981-11059 |
from US $3.20 |
||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[05.1988 - 09.1990] EL3#,NL30 １２Ｖ ２１Ｗ,TURN |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1988 - 09.1990] EL3#,NL30 １２Ｖ ２１／５Ｗ,STOP & TAIL |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-16400 Lens, Rear Combination Lamp, Rh[05.1988 - 09.1990] EL3#,NL30..3DS |
81551-16400 |
US $241.70 |
||
|
81555
|
81555
81555-16400 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1988 - 09.1990] EL3#,NL30..3DS |
81555-16400 |
US $51.54 |
||
|
81560
|
81560
81560-16430 Lamp Assy, Rear Combination, Lh[05.1988 - 09.1990] EL3#,NL30..3DS |
81560-16430 |
US $297.02 |
||
|
81561
|
81561
81561-16430 Lens, Rear Combination Lamp, Lh[05.1988 - 09.1990] EL3#,NL30..3DS |
81561-16430 |
US $241.70 |
||
|
81565
|
81565
81555-16400 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.1988 - 09.1990] EL3#,NL30..3DS |
81555-16400 |
US $51.54 |
||
|
9007510002
|
9007510002
90075-10002 New Genuine Part |
90075-10002 |
US $2.48 |
||
|
9015960269
|
9015960269
90159-60269 New Genuine Part |
90159-60269 |
US $1.60 |
||
| replacement | |||||
|
9015960269
|
9015960269
90159-60359 New Genuine Part |
90159-60359 |
US $2.08 |
||
|
9018906077
|
9018906077
90189-06077 GROMMET |
90189-06077 |
US $0.67 |
||
