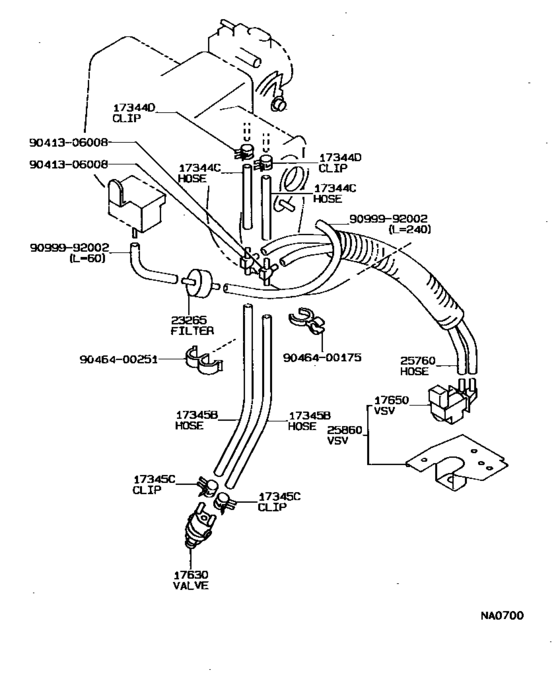

Vacuum Piping ([05.1988 - ] (8805- )3EE) Diagram Toyota COROLLA
- Year
- 1988 - 1990
- Sales region
- Japan
- Frame
- EL31
- grade
- SRI
- body
- SED
- ENGINE
- 3EE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 05.1988
- To
- 09.1990
- Gear Shift Type
- 4FC
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17344C
|
17344C
17344-11010 Hose, No.4(For Idle-Up)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
17344-11010 |
US $9.03 |
||
|
17344D
|
17344D
96132-30400
Clip Or Clamp(For Ventilation Hose)
[05.1988 - 09.1990] 3EE,3ETE..EL31 |
96132-30400 |
— | ||
| replacement | |||||
|
17344D
|
17344D
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1988 - 09.1990] 3EE,3ETE..EL31 |
96132-51000 |
from US $1.62 |
||
|
17345B
|
17345B
17345-11030 Hose, No.5(For Idle-Up)[05.1988 - 09.1990] 3EE..EL31; 3ETE..EL31 |
17345-11030 |
US $8.88 |
||
|
17345C
|
17345C
96132-30400
Clip Or Clamp(For Ventilation Hose)
[05.1988 - 09.1990] 3EE..EL31; 3ETE..EL31 |
96132-30400 |
— | ||
| replacement | |||||
|
17345C
|
17345C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.1988 - 09.1990] 3EE..EL31; 3ETE..EL31 |
96132-51000 |
from US $1.62 |
||
|
17630
|
17630
17630-15050 Valve Assy, Air Control[05.1988 - 09.1990] 3EE..EL31..4FC |
17630-15050 |
US $101.92 |
||
|
17650
|
17650
90910-12031 Valve Assy, Vacuum Switching[05.1988 - 09.1990] 3EE..EL31; 3ETE..EL31 ＮＯ．３ |
90910-12031 |
US $62.46 |
||
|
23265
|
23265
90917-11030 Filter, Gas, No.1[05.1988 - 09.1990] 3EE,3ETE..EL31 |
90917-11030 |
US $8.56 |
||
|
25760
|
25760
25760-11021 Hose Assy, Vacuum Transmitting[05.1988 - 01.1989] 3EE,3ETE..EL31 |
25760-11021 |
US $40.77 |
||
|
25760
|
25760
25760-11030 Hose Assy, Vacuum Transmitting[01.1989 - 09.1990] 3EE,3ETE..EL31 |
25760-11030 |
US $41.06 |
||
|
25860
|
25860
25860-11090 Valve Assy, Vacuum Switching, No.1[05.1988 - 09.1990] 3EE..EL31 |
25860-11090 |
US $75.71 |
||
|
9041306008
|
9041306008
90413-06008 New Genuine Part |
90413-06008 |
US $5.53 |
||
|
9046400175
|
9046400175
90464-00175 New Genuine Part |
90464-00175 |
US $5.59 |
||
|
9046400251
|
9046400251
90464-00251 Clamp, Vacuum Tube |
90464-00251 |
US $4.02 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
