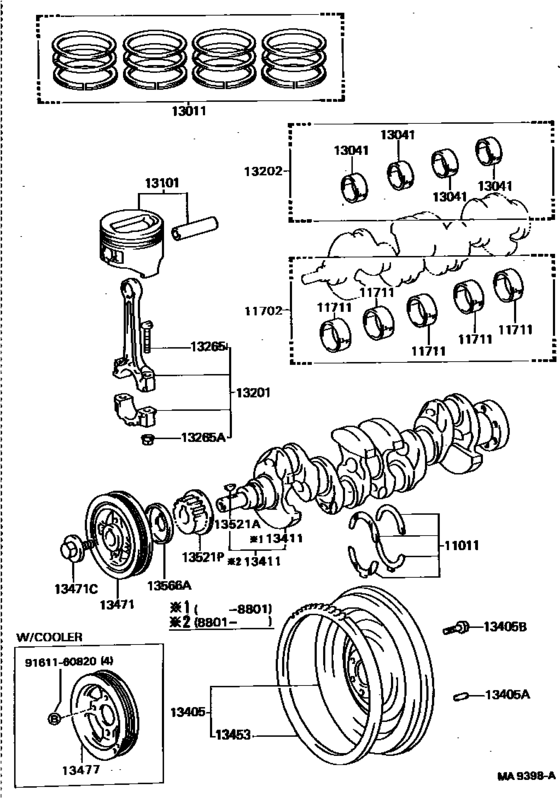

Crankshaft & Piston ([05.1986 - ] (8605- )2E,3E#) Diagram Toyota COROLLA
- Year
- 1986 - 1988
- Sales region
- Japan
- Frame
- EL31
- grade
- ZX
- body
- SED
- ENGINE
- 3E
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 05.1986
- To
- 05.1988
- Gear Shift Type
- 5F
- No.of Doors
- 5DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-11020 Washer Set, Crankshaft Thrust[05.1986 - 05.1988] 3E#..EL31 ＳＴＤ,STD |
11011-11020 |
US $26.35 |
||
| replacement | |||||
|
11011
|
11011
11011-11010 Washer Set, Crankshaft Thrust[05.1986 - 05.1988] 3E#..EL31 ＳＴＤ,STD |
11011-11010 |
from US $25.51 |
||
|
11011
|
11011
11012-11020 Washer Set, Crankshaft Thrust[05.1986 - 05.1988] 3E#..EL31 Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-11020 |
US $33.78 |
||
| replacement | |||||
|
11011
|
11011
11012-11010 Washer Set, Crankshaft Thrust[05.1986 - 05.1988] 3E#..EL31 Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-11010 |
US $33.63 |
||
|
11711
|
11711
11701-11010-01 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"1",MARK 1 |
11701-11010-01 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-01 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"1",MARK 1 |
11701-11012-01 |
from US $18.39 |
||
|
11711
|
11711
11701-11010-02 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"2",MARK 2 |
11701-11010-02 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-02 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"2",MARK 2 |
11701-11012-02 |
from US $18.39 |
||
|
11711
|
11711
11701-11010-03 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"3",MARK 3 |
11701-11010-03 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-03 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"3",MARK 3 |
11701-11012-03 |
US $37.84 |
||
|
11711
|
11711
11701-11010-04 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"4",MARK 4 |
11701-11010-04 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-04 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"4",MARK 4 |
11701-11012-04 |
US $37.84 |
||
|
11711
|
11711
11701-11010-05 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"5",MARK 5 |
11701-11010-05 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-05 Bearing, Crankshaft[05.1986 - 05.1988] 3E#..EL31 MARK"5",MARK 5 |
11701-11012-05 |
US $37.84 |
||
|
13011
|
13011
13011-11080 Ring Set, Piston[05.1986 - 09.1986] 3E..EL31 ＳＴＤ,STD |
13011-11080 |
US $215.49 |
||
| replacement | |||||
|
13011
|
13011
13011-11090 Ring Set, Piston[05.1986 - 09.1986] 3E..EL31 ＳＴＤ,STD |
13011-11090 |
US $214.03 |
||
|
13011
|
13011
13011-11090 Ring Set, Piston[09.1986 - 05.1988] 3E..EL31 ＳＴＤ,STD |
13011-11090 |
US $214.03 |
||
|
13011
|
13011
13013-11080 Ring Set, Piston[05.1986 - 09.1986] 3E..EL31 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-11080 |
US $215.49 |
||
| replacement | |||||
|
13011
|
13011
13013-11090 Ring Set, Piston[05.1986 - 09.1986] 3E..EL31 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-11090 |
US $214.03 |
||
|
13011
|
13011
13013-11090 Ring Set, Piston[09.1986 - 05.1988] 3E..EL31 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-11090 |
US $214.03 |
||
|
13041
|
13041
13041-11020-01 Bearing, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 MARK"1",MARK 1 |
13041-11020-01 |
US $33.78 |
||
| replacement | |||||
|
13041
|
13041
13041-11010-01 Bearing, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 MARK"1",MARK 1 |
13041-11010-01 |
US $33.63 |
||
|
13041
|
13041
13041-11020-02 Bearing, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 MARK"2",MARK 2 |
13041-11020-02 |
US $33.78 |
||
| replacement | |||||
|
13041
|
13041
13041-11010-02 Bearing, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 MARK"2",MARK 2 |
13041-11010-02 |
from US $14.63 |
||
|
13041
|
13041
13041-11020-03 Bearing, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 MARK"3",MARK 3 |
13041-11020-03 |
US $33.78 |
||
| replacement | |||||
|
13041
|
13041
13041-11010-03 Bearing, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 MARK"3",MARK 3 |
13041-11010-03 |
from US $14.04 |
||
|
13101
|
13101
13101-11080 Piston Sub-Assy, W/pin[05.1986 - 01.1988] 3E..EL31 ＳＴＤ,STD |
13101-11080 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11081-02 Piston Sub-Assy, W/pin[05.1986 - 01.1988] 3E..EL31 ＳＴＤ,STD |
13101-11081-02 |
US $78.62 |
||
|
13101
|
13101
13101-11080-01 Piston Sub-Assy, W/pin[01.1988 - 05.1988] 3E..EL31 ＳＴＤ,STD,MARK 1,MARK 1 |
13101-11080-01 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11081-01 Piston Sub-Assy, W/pin[01.1988 - 05.1988] 3E..EL31 ＳＴＤ,STD,MARK 1,MARK 1 |
13101-11081-01 |
US $78.62 |
||
|
13101
|
13101
13101-11080-02 Piston Sub-Assy, W/pin[01.1988 - 05.1988] 3E..EL31 ＳＴＤ,STD,MARK 2,MARK 2 |
13101-11080-02 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11081-02 Piston Sub-Assy, W/pin[01.1988 - 05.1988] 3E..EL31 ＳＴＤ,STD,MARK 2,MARK 2 |
13101-11081-02 |
US $78.62 |
||
|
13101
|
13101
13101-11080-03 Piston Sub-Assy, W/pin[01.1988 - 05.1988] 3E..EL31 ＳＴＤ,STD,MARK 3,MARK 3 |
13101-11080-03 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11081-03 Piston Sub-Assy, W/pin[01.1988 - 05.1988] 3E..EL31 ＳＴＤ,STD,MARK 3,MARK 3 |
13101-11081-03 |
US $78.62 |
||
|
13101
|
13101
13103-11080 Piston Sub-Assy, W/pin[05.1986 - 05.1988] 3E..EL31 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-11080 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13103-11081 Piston Sub-Assy, W/pin[05.1986 - 05.1988] 3E..EL31 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-11081 |
US $78.62 |
||
|
13201
|
13201
13201-19085 Rod Sub-Assy, Connecting[05.1986 - 05.1988] 3E#..EL31 |
13201-19085 |
US $164.53 |
||
| replacement | |||||
|
13201
|
13201
13201-19088 Rod Sub-Assy, Connecting[05.1986 - 05.1988] 3E#..EL31 |
13201-19088 |
US $96.10 |
||
|
13202
|
13202
13204-11020 Bearing Set, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-11020 |
US $168.90 |
||
| replacement | |||||
|
13202
|
13202
13204-11010 Bearing Set, Connecting Rod[05.1986 - 05.1988] 3E#..EL31 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-11010 |
US $165.98 |
||
|
13265
|
13265
13265-10020
Bolt, Connecting Rod
[05.1986 - 05.1988] 2E,3E#..EL3# |
13265-10020 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[05.1986 - 05.1988] 2E,3E#..EL3# |
13265-10022 |
from US $2.66 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[05.1986 - 12.1986] 2E,3E#..EL3#; 1NT..NL30 |
90179-08014 |
from US $1.03 |
||
|
13405
|
13405
13405-11040 Flywheel Sub-Assy[05.1986 - 05.1988] 3E..EL31..5F |
13405-11040 |
US $270.82 |
||
| replacement | |||||
|
13405
|
13405
13405-11041 Flywheel Sub-Assy[05.1986 - 05.1988] 3E..EL31..5F |
13405-11041 |
US $270.82 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1986 - 05.1988] 2E,3E#..EL3#..MTM 長さ＝１８，外径＝８; 1NT..NL30..5F 長さ＝１８，外径＝８ |
90250-08120 |
from US $0.93 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[05.1986 - 05.1988] 2E,3E#..EL3#..MTM |
90105-10138 |
from US $1.35 |
||
|
13411
|
13411
13401-11040
Crankshaft
[05.1986 - 05.1988] 3E#..EL31 |
13401-11040 |
— | ||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[05.1986 - 05.1988] 2E,3E#..EL3#..MTM |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13408-11011 Pulley, Crankshaft[01.1987 - 06.1987] 2E,3E#..EL3# TOYODA KOUKI |
13408-11011 |
US $179.09 |
||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[01.1987 - 06.1987] 2E,3E#..EL3# TOYODA KOUKI |
13470-11030 |
US $150.96 |
||
|
13471
|
13471
13408-11012
Pulley, Crankshaft
[06.1987 - 05.1988] 2E,3E#..EL3# |
13408-11012 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[06.1987 - 05.1988] 2E,3E#..EL3# |
13470-11030 |
US $150.96 |
||
|
13471
|
13471
13408-11020 Pulley, Crankshaft[05.1986 - 06.1987] 2E,3E#..EL3# MARUYASU |
13408-11020 |
US $179.09 |
||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[05.1986 - 06.1987] 2E,3E#..EL3# MARUYASU |
13470-11030 |
US $150.96 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[05.1986 - 05.1988] 2E,3E#..EL3# |
90105-12051 |
from US $2.43 |
||
|
13477
|
13477
44319-16020 Pulley, Crankshaft, No.2[05.1986 - 05.1988] 3E#..EL31 W/COOLER; 2E..EL30..CD,GL,TX W/COOLER |
44319-16020 |
US $88.82 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[05.1986 - 05.1988] 2E,3E#..EL3#; 1NT..NL30 |
95161-10519 |
from US $1.54 |
||
|
13521P
|
13521P
13521-11010 Pulley, Crankshaft Timing[05.1986 - 05.1988] 2E,3E#..EL3# |
13521-11010 |
US $36.69 |
||
|
13566A
|
13566A
13566-10011 Guide, Timing Belt[05.1986 - 05.1988] 2E,3E#..EL3# |
13566-10011 |
US $4.37 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.12 |
||
