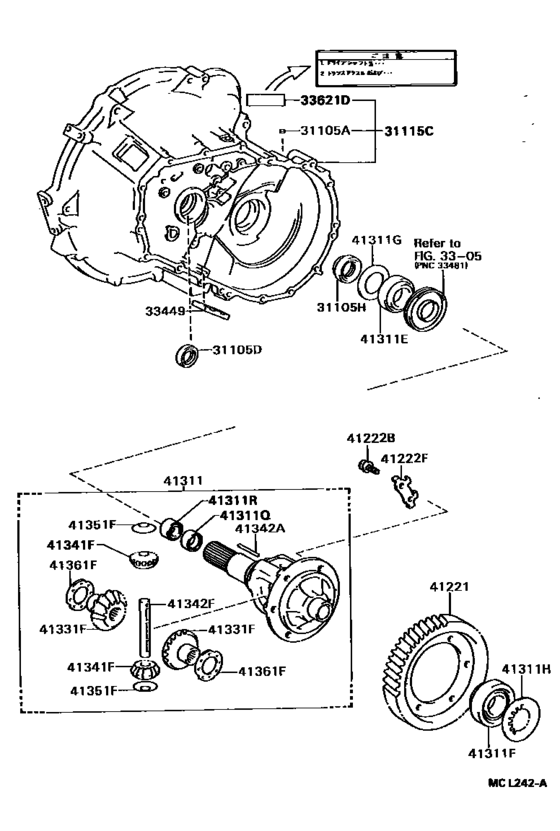

Front Axle Housing & Differential ([09.1990 - ] C50F (9009- )EL45..5F) Diagram Toyota COROLLA
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL45
- grade
- SR
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105A
|
31105A
90331-08002 Plug, Tight(For Front Transaxle Case)[09.1990 - 09.1994] EL4#,NL40..MTM |
90331-08002 |
US $1.46 |
||
|
31105D
|
31105D
90311-25016 Seal, Oil, No.1(For Front Transaxle Case)[09.1990 - 07.1991] EL4#..MTM |
90311-25016 |
from US $3.20 |
||
|
31105H
|
31105H
90311-54004 Seal, Oil, No.2(For Transaxle Case)[09.1990 - 09.1994] EL45..5F |
90311-54004 |
US $3.32 |
||
|
31115C
|
31115C
31105-16050 Case, Front Transaxle(Mtm)[09.1990 - 05.1994] EL45..5F |
31105-16050 |
US $432.43 |
||
| replacements | |||||
|
31115C
|
31115C
31105-16080 Case, Front Transaxle(Mtm)[09.1990 - 05.1994] EL45..5F |
31105-16080 |
US $435.34 |
||
|
31115C
|
31115C
33125-12011 Receiver, Manual Transaxle Case[09.1990 - 05.1994] EL45..5F |
33125-12011 |
US $2.18 |
||
|
31115C
|
31115C
31105-16080 Case, Front Transaxle(Mtm)[05.1994 - 09.1994] EL45..5F |
31105-16080 |
US $435.34 |
||
|
33449
|
33449
33449-12020 Magnet, Transmission[09.1990 - 09.1994] EL4#,NL40..MTM |
33449-12020 |
US $8.91 |
||
|
33621D
|
33621D
33621-16060 Label, Transaxle Oil Information[09.1990 - 09.1994] EL45 |
33621-16060 |
US $1.02 |
||
|
41221
|
41221
41221-12180 Gear, Front Differential Ring[09.1990 - 01.1991] EL45..5F |
41221-12180 |
US $171.81 |
||
| replacements | |||||
|
41221
|
41221
90105-11040 Bolt (For Rear Differential Ring Gear Set)[09.1990 - 01.1991] EL45..5F |
90105-11040 |
US $2.08 |
||
|
41221
|
41221
41221-52261 Gear, Front Differential Ring[09.1990 - 01.1991] EL45..5F |
41221-52261 |
US $116.48 |
||
|
41221
|
41221
41221-12330 Gear, Front Differential Ring[01.1991 - 09.1994] EL45..5F |
41221-12330 |
US $160.16 |
||
| replacements | |||||
|
41221
|
41221
41221-52261 Gear, Front Differential Ring[01.1991 - 09.1994] EL45..5F |
41221-52261 |
US $116.48 |
||
|
41221
|
41221
90105-11040 Bolt (For Rear Differential Ring Gear Set)[01.1991 - 09.1994] EL45..5F |
90105-11040 |
US $2.08 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[09.1990 - 09.1994] EL45;EL41,43,NL40..ATM |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-12040 Plate, Rear Differential Ring Gear Set Bolt Lock[09.1990 - 09.1994] EL45..5F |
41222-12040 |
US $2.48 |
||
|
41311
|
41311
41301-16040 Case, Front Differential[09.1990 - 09.1994] EL45..5F |
41301-16040 |
US $576.58 |
||
| replacements | |||||
|
41311
|
41311
41301-16041 Case, Front Differential[09.1990 - 09.1994] EL45..5F |
41301-16041 |
US $578.03 |
||
|
41311
|
41311
90105-11040 Bolt (For Rear Differential Ring Gear Set)[09.1990 - 09.1994] EL45..5F |
90105-11040 |
US $2.08 |
||
|
41311E
|
41311E
90366-55045 Bearing(For Ring Gear Mounting Case)[09.1990 - 09.1994] EL45 |
90366-55045 |
US $18.70 |
||
|
41311F
|
41311F
90368-38010 Bearing(For Rear Differential Case)[09.1990 - 09.1994] EL4#,NL40..4F,4FC,5F |
90368-38010 |
from US $25.38 |
||
|
41311G
|
41311G
90201-58001 Washer, Plate (For Front Differential Case Front)[09.1990 - 09.1994] EL45 厚さ＝１．９０ |
90201-58001 |
US $3.64 |
||
|
41311H
|
41311H
90201-41046 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．１０，マーク Ａ |
90201-41046 |
US $5.39 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41014 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．１０，マーク Ａ |
90564-41014 |
US $3.67 |
||
|
41311H
|
41311H
90201-41047 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．１５，マーク Ｂ |
90201-41047 |
US $5.39 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41015 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．１５，マーク Ｂ |
90564-41015 |
US $3.67 |
||
|
41311H
|
41311H
90201-41048 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．２０，マーク Ｃ |
90201-41048 |
US $5.39 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41016 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．２０，マーク Ｃ |
90564-41016 |
US $3.67 |
||
|
41311H
|
41311H
90201-41049
Washer, Plate (For Front Differential Case Rear)
[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．２５，マーク Ｄ |
90201-41049 |
— | ||
| replacement | |||||
|
41311H
|
41311H
90564-41017 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．２５，マーク Ｄ |
90564-41017 |
US $3.67 |
||
|
41311H
|
41311H
90201-41050
Washer, Plate (For Front Differential Case Rear)
[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．３０，マーク Ｅ |
90201-41050 |
— | ||
| replacement | |||||
|
41311H
|
41311H
90564-41018 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．３０，マーク Ｅ |
90564-41018 |
US $4.89 |
||
|
41311H
|
41311H
90201-41051
Washer, Plate (For Front Differential Case Rear)
[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．３５，マーク Ｆ |
90201-41051 |
— | ||
| replacement | |||||
|
41311H
|
41311H
90564-41019 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．３５，マーク Ｆ |
90564-41019 |
US $5.12 |
||
|
41311H
|
41311H
90201-41052 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．４０，マーク Ｇ |
90201-41052 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41020 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．４０，マーク Ｇ |
90564-41020 |
US $4.89 |
||
|
41311H
|
41311H
90201-41053 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．４５，マーク Ｈ |
90201-41053 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41021 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．４５，マーク Ｈ |
90564-41021 |
US $4.89 |
||
|
41311H
|
41311H
90201-41054 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．５０，マーク Ｊ |
90201-41054 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41022 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．５０，マーク Ｊ |
90564-41022 |
US $4.89 |
||
|
41311H
|
41311H
90201-41055 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．５５，マーク Ｋ |
90201-41055 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41023 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．５５，マーク Ｋ |
90564-41023 |
US $4.89 |
||
|
41311H
|
41311H
90201-41056 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．６０，マーク Ｌ |
90201-41056 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41024 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．６０，マーク Ｌ |
90564-41024 |
US $4.89 |
||
|
41311H
|
41311H
90201-41057 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．６５，マーク Ｍ |
90201-41057 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41025 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．６５，マーク Ｍ |
90564-41025 |
US $4.89 |
||
|
41311H
|
41311H
90201-41058 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．７０，マーク Ｎ |
90201-41058 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41026 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．７０，マーク Ｎ |
90564-41026 |
US $4.89 |
||
|
41311H
|
41311H
90201-41059 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．７５，マーク Ｐ |
90201-41059 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41027 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．７５，マーク Ｐ |
90564-41027 |
US $4.89 |
||
|
41311H
|
41311H
90201-41060 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．８０，マーク Ｑ |
90201-41060 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41028 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．８０，マーク Ｑ |
90564-41028 |
US $4.89 |
||
|
41311H
|
41311H
90201-41061 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．８５，マーク Ｒ |
90201-41061 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41029 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．８５，マーク Ｒ |
90564-41029 |
US $5.59 |
||
|
41311H
|
41311H
90201-41062 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．９０，マーク Ｓ |
90201-41062 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41030 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．９０，マーク Ｓ |
90564-41030 |
US $5.59 |
||
|
41311H
|
41311H
90201-41063 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．９５，マーク Ｔ |
90201-41063 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41031 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝２．９５，マーク Ｔ |
90564-41031 |
US $5.59 |
||
|
41311H
|
41311H
90201-41064 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝３．００，マーク Ｕ |
90201-41064 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41032 Washer, Plate (For Front Differential Case Rear)[09.1990 - 09.1994] EL4#,NL40..MTM 厚さ＝３．００，マーク Ｕ |
90564-41032 |
US $5.59 |
||
|
41311Q
|
41311Q
90364-33010 Bearing, Needle Roller (For Transfer Output Shaft Front)[09.1990 - 09.1994] EL45 |
90364-33010 |
US $18 |
||
|
41311R
|
41311R
90316-33001 Seal, Oil (For Front Differential Case)[09.1990 - 09.1994] EL45 |
90316-33001 |
US $8.88 |
||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[09.1990 - 09.1994] EL45;EL41,43,NL40..ATM |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[09.1990 - 09.1994] EL45;EL41,43,NL40..ATM |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[09.1990 - 09.1994] EL45;EL41,43,NL40..ATM |
90250-06058 |
from US $2.09 |
||
|
41342F
|
41342F
41342-12020 Shaft, Rear Differential Pinion[09.1990 - 09.1991] EL45;EL41,43,NL40..ATM |
41342-12020 |
US $24.61 |
||
| replacement | |||||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[09.1990 - 09.1991] EL45;EL41,43,NL40..ATM |
41342-12140 |
US $15.24 |
||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[09.1991 - 09.1994] EL45;EL41,43,NL40..ATM |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[09.1990 - 09.1994] EL45;EL41,43,NL40..ATM |
41351-12020 |
from US $1.69 |
||
|
41361F
|
41361F
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[09.1990 - 09.1994] EL41,45..3FC,5F 厚さ＝１．００，マーク ０２ |
41361-22020 |
US $2.80 |
||
|
41361F
|
41361F
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[09.1990 - 09.1994] EL41,45..3FC,5F 厚さ＝１．１０，マーク ０３ |
41361-22030 |
US $3.14 |
||
|
41361F
|
41361F
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[09.1990 - 09.1994] EL41,45..3FC,5F 厚さ＝１．２０，マーク ０４ |
41361-22040 |
US $3.52 |
||
|
41361F
|
41361F
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[09.1990 - 09.1994] EL41,45..3FC,5F 厚さ＝０．９５，マーク １４ |
41361-22140 |
US $2.53 |
||
|
41361F
|
41361F
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[09.1990 - 09.1994] EL41,45..3FC,5F 厚さ＝１．０５，マーク １５ |
41361-22150 |
US $2.62 |
||
|
41361F
|
41361F
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[09.1990 - 09.1994] EL41,45..3FC,5F 厚さ＝１．１５，マーク １６ |
41361-22160 |
US $2.62 |
||
