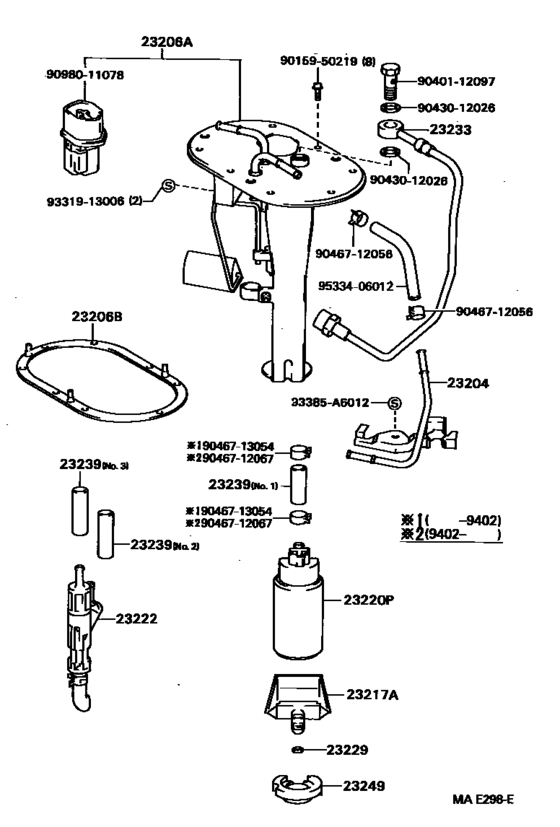

Fuel Injection System ([09.1990 - ] (9009- )5EFE..EL45) Diagram Toyota COROLLA
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL45
- grade
- SR
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23204
|
23204
23204-11180 Tube Sub-Assy, Fuel Pump Return[09.1990 - 09.1994] 5EFE..EL45 |
23204-11180 |
US $36.11 |
||
|
23206A
|
23206A
23206-11180 Bracket, Fuel Pump[09.1990 - 09.1994] 5EFE..EL45 |
23206-11180 |
US $107.74 |
||
|
23206B
|
23206B
77169-60010 Gasket, Fuel Pump Bracket[09.1990 - 09.1994] 5EFE..EL45 |
77169-60010 |
from US $11.21 |
||
|
23217A
|
23217A
23217-11020
Filter, Fuel Pump
[09.1990 - 08.1992] 4EFE,5EF#..EL4# |
23217-11020 |
— | ||
|
23217A
|
23217A
23217-74030
Filter, Fuel Pump
[08.1992 - 09.1994] 4EFE,5EF#..EL4#..LIM,SR,WIN,ZS |
23217-74030 |
— | ||
|
23220P
|
23220P
23221-46010 Pump Assy, Fuel[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
23221-46010 |
from US $302.58 |
||
|
23222
|
23222
23222-11010
Tube, Fuel Return Jet
[09.1990 - 09.1994] 5EFE..EL45 |
23222-11010 |
— | ||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
23229-16010 |
from US $0.88 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23091-11080 Hose, Fuel Pump[09.1990 - 09.1994] 5EFE..EL45 |
23091-11080 |
US $113.57 |
||
| replacement | |||||
|
23233
|
23233
23091-11100 Hose, Fuel Pump[09.1990 - 09.1994] 5EFE..EL45 |
23091-11100 |
US $115.02 |
||
|
23239
|
23239
23239-11010 Hose, Fuel Pump[02.1994 - 09.1994] 5EFE..EL45 ＮＯ．１; 4EFE,5EF#..EL41,43 |
23239-11010 |
from US $8.17 |
||
|
23239
|
23239
23239-63010 Hose, Fuel Pump[09.1990 - 02.1994] 5EFE..EL45 ＮＯ．１; 4EFE,5EF#..EL41,43 |
23239-63010 |
US $14.56 |
||
|
23239
|
23239
23239-74630 Hose, Fuel Pump[09.1990 - 09.1994] 5EFE..EL45 ＮＯ．２ |
23239-74630 |
US $19.66 |
||
|
23239
|
23239
23239-74640 Hose, Fuel Pump[09.1990 - 09.1994] 5EFE..EL45 ＮＯ．３ |
23239-74640 |
US $19.66 |
||
|
23249
|
23249
23249-74610 Rubber, Cushion(For Fuel Pump)[09.1990 - 09.1994] 4EFE,5EF#..EL4# |
23249-74610 |
from US $8.56 |
||
|
93385A6012
|
93385A6012
93385-A6012 New Genuine Part |
93385-A6012 |
US $1.46 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9040112097
|
9040112097
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-12097 |
from US $3.08 |
||
|
9043012026
|
9043012026
90430-12026 Gasket |
90430-12026 |
from US $0.88 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9046712067
|
9046712067
90467-12067 Clip(For Fuel Pump Hose) |
90467-12067 |
from US $1.27 |
||
|
9046713054
|
9046713054
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
9046713054
|
9046713054
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9098011078
|
9098011078
90980-11078 HOUSING CONNECTOR |
90980-11078 |
US $4.80 |
||
|
9331913006
|
9331913006
93319-13006 New Genuine Part |
93319-13006 |
US $0.44 |
||
|
9533406012
|
9533406012
95334-06012 Hose, Fuel(For Fuel Pipe To Pressure Regulator) |
95334-06012 |
US $4.48 |
||
