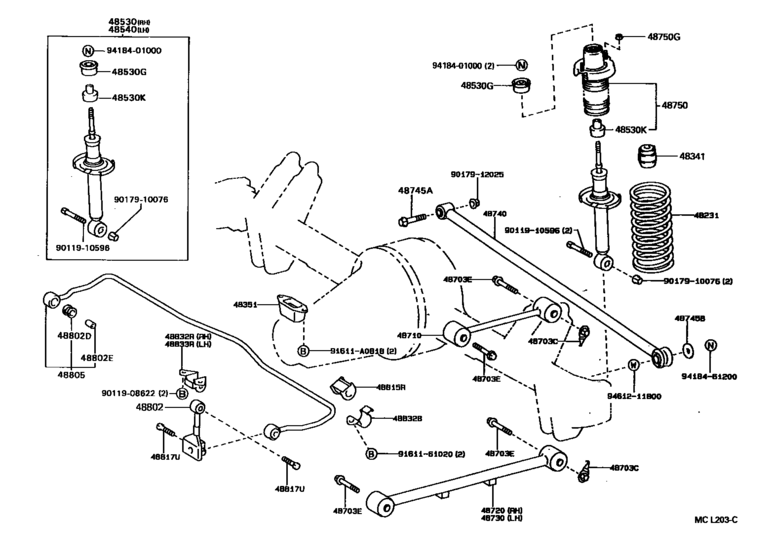

Rear Spring & Shock Absorber ([09.1990 - ] (9009- )EL45) Diagram Toyota COROLLA
- Year
- 1990 - 1994
- Sales region
- Japan
- Frame
- EL45
- grade
- SR
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 09.1990
- To
- 09.1994
- Gear Shift Type
- 5F
- No.of Doors
- 3DS
- Vehicle Model
- Corolla 2
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48231
|
48231
48231-16430 Spring, Coil, Rear[09.1990 - 08.1992] EL45..SR |
48231-16430 |
US $90.27 |
||
|
48231
|
48231
48231-16690 Spring, Coil, Rear[08.1992 - 09.1994] EL45..SR |
48231-16690 |
US $97.55 |
||
|
48341
|
48341
48341-10111
Bumper, Rear Spring
[09.1990 - 09.1994] EL45 |
48341-10111 |
— | ||
|
48351
|
48351
48351-12020 Bumper, Differential Carrier[09.1990 - 09.1994] EL45 |
48351-12020 |
US $9.46 |
||
|
48530
|
48530
48530-19325 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL45..SR |
48530-19325 |
US $107.74 |
||
| replacement | |||||
|
48530
|
48530
48530-19326 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL45..SR |
48530-19326 |
US $116.48 |
||
|
48530
|
48530
48530-19465 Absorber Assy, Shock, Rear Rh[08.1992 - 09.1994] EL45..SR |
48530-19465 |
US $116.48 |
||
| replacement | |||||
|
48530
|
48530
48530-19326 Absorber Assy, Shock, Rear Rh[08.1992 - 09.1994] EL45..SR |
48530-19326 |
US $116.48 |
||
|
48530G
|
48530G
90948-01051
Cushion, Rear Shock Absorber, No.1
[09.1990 - 09.1994] EL45 |
90948-01051 |
— | ||
|
48530K
|
48530K
90948-01052
Cushion, Rear Shock Absorber, No.2
[09.1990 - 09.1994] EL45 |
90948-01052 |
— | ||
|
48540
|
48540
48530-19325 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL45..SR |
48530-19325 |
US $107.74 |
||
| replacement | |||||
|
48540
|
48540
48530-19326 Absorber Assy, Shock, Rear Rh[09.1990 - 08.1992] EL45..SR |
48530-19326 |
US $116.48 |
||
|
48540
|
48540
48530-19465 Absorber Assy, Shock, Rear Rh[08.1992 - 09.1994] EL45..SR |
48530-19465 |
US $116.48 |
||
| replacement | |||||
|
48540
|
48540
48530-19326 Absorber Assy, Shock, Rear Rh[08.1992 - 09.1994] EL45..SR |
48530-19326 |
US $116.48 |
||
|
48703C
|
48703C
90179-12092 Nut(For Rear Suspension Arm)[09.1990 - 09.1994] EL45 |
90179-12092 |
US $3.49 |
||
|
48703E
|
48703E
90119-12213 Bolt(For Rear Suspension Arm)[09.1990 - 09.1994] EL45 ＊１２−１．２５ＰＸ７５−３０ |
90119-12213 |
US $5.24 |
||
| replacement | |||||
|
48703E
|
48703E
90119-12099 Bolt(For Front Suspension Lower Arm)[09.1990 - 09.1994] EL45 ＊１２−１．２５ＰＸ７５−３０ |
90119-12099 |
US $6.56 |
||
|
48710
|
48710
48710-16060 Arm Assy, Upper Control[11.1991 - 08.1992] EL45 |
48710-16060 |
US $81.54 |
||
|
48710
|
48710
48710-16070 Arm Assy, Upper Control[09.1990 - 11.1991] EL45..SR |
48710-16070 |
US $69.60 |
||
|
48710
|
48710
48710-16100 Arm Assy, Upper Control[08.1992 - 09.1994] EL45..SR |
48710-16100 |
US $81.54 |
||
|
48720
|
48720
48720-16050
Arm Assy, Lower Control, Rh
[11.1991 - 08.1992] EL45 |
48720-16050 |
— | ||
|
48720
|
48720
48720-16060 Arm Assy, Lower Control, Rh[09.1990 - 11.1991] EL45..SR |
48720-16060 |
US $125.22 |
||
|
48730
|
48730
48720-16050
Arm Assy, Lower Control, Rh
[11.1991 - 08.1992] EL45 |
48720-16050 |
— | ||
|
48730
|
48730
48720-16060 Arm Assy, Lower Control, Rh[09.1990 - 11.1991] EL45..SR |
48720-16060 |
US $125.22 |
||
|
48740
|
48740
48740-16041 Rod Assy, Rear Lateral Control[09.1990 - 08.1992] EL45 |
48740-16041 |
US $116.48 |
||
|
48740
|
48740
48740-16070 Rod Assy, Rear Lateral Control[08.1992 - 09.1994] EL45 |
48740-16070 |
US $116.48 |
||
|
48745A
|
48745A
90105-12070 Bolt(For Rear Suspension Arm)[09.1990 - 09.1994] EL4#,NL40 |
90105-12070 |
US $5.76 |
||
|
48745B
|
48745B
90201-12037 Washer, Plate, No.1(For Rear Lateral Control Rod)[09.1990 - 09.1994] EL4#,NL40 |
90201-12037 |
US $4.96 |
||
|
48750
|
48750
48750-16051 Support Assy, Rear Suspension[09.1990 - 09.1994] EL45 |
48750-16051 |
US $80.08 |
||
|
48750G
|
48750G
90179-08206 Nut(For Front Suspension Support)[09.1990 - 09.1994] EL4#,NL40 |
90179-08206 |
from US $0.86 |
||
|
48802
|
48802
48802-16010 Link Sub-Assy, Stabilizer[09.1990 - 09.1994] EL45 右側 |
48802-16010 |
US $25.63 |
||
| replacement | |||||
|
48802
|
48802
48802-52040 Link Sub-Assy, Stabilizer[09.1990 - 09.1994] EL45 右側 |
48802-52040 |
US $28.88 |
||
|
48802
|
48802
48803-16010 Link Sub-Assy, Stabilizer[09.1990 - 09.1994] EL45 左側 |
48803-16010 |
US $25.63 |
||
| replacement | |||||
|
48802
|
48802
48803-52010 Link Sub-Assy, Stabilizer[09.1990 - 09.1994] EL45 左側 |
48803-52010 |
US $28.88 |
||
|
48802D
|
48802D
90385-11014 Bush, Stabilizer Link[09.1990 - 09.1994] EL45 |
90385-11014 |
US $4.80 |
||
|
48802E
|
48802E
90560-10275 Spacer(For Rear Stabilizer Bar)[09.1990 - 09.1994] EL45 |
90560-10275 |
from US $2.24 |
||
|
48805
|
48805
48805-10010 Bar Sub-Assy, Rear Stabilizer[09.1990 - 08.1992] EL45..SR |
48805-10010 |
US $158.70 |
||
| replacement | |||||
|
48805
|
48805
48805-52011 Bar Sub-Assy, Rear Stabilizer[09.1990 - 08.1992] EL45..SR |
48805-52011 |
US $158.70 |
||
|
48805
|
48805
48805-16160 Bar Sub-Assy, Rear Stabilizer[08.1992 - 09.1994] EL45..SR |
48805-16160 |
US $152.88 |
||
|
48815R
|
48815R
48815-20020
Bush, Front Stabilizer Bar, No.1
[09.1990 - 08.1992] EL45..SR |
48815-20020 |
— | ||
| replacement | |||||
|
48815R
|
48815R
48815-20021 Bush, Stabilizer(For Rear)[09.1990 - 08.1992] EL45..SR |
48815-20021 |
from US $9.01 |
||
|
48815R
|
48815R
48815-30070 Bush, Front Stabilizer Bar, No.1[08.1992 - 09.1994] EL45..SR |
48815-30070 |
US $5.59 |
||
|
48817U
|
48817U
91111-41040
Bolt(For Rear Stabilizer)
[08.1992 - 09.1994] EL45 |
91111-41040 |
— | ||
| replacement | |||||
|
48817U
|
48817U
91111-51040 Shaft, Control Select Lever (For Column Shift)[08.1992 - 09.1994] EL45 |
91111-51040 |
US $3.36 |
||
|
48817U
|
48817U
91112-41040
Bolt(For Rear Stabilizer)
[09.1990 - 08.1992] EL45 |
91112-41040 |
— | ||
| replacement | |||||
|
48817U
|
48817U
91111-51040 Shaft, Control Select Lever (For Column Shift)[09.1990 - 08.1992] EL45 |
91111-51040 |
US $3.36 |
||
|
48832B
|
48832B
48832-22020 Cover, Stabilizer Link(For Rear)[09.1990 - 09.1994] EL45 |
48832-22020 |
US $4.19 |
||
|
48832R
|
48832R
48832-16030 Bracket, Rear Stabilizer Bar, No.1 Rh[09.1990 - 09.1994] EL45 |
48832-16030 |
US $11.50 |
||
| replacements | |||||
|
48832R
|
48832R
91641-80818 BOLT WWASHER[09.1990 - 09.1994] EL45 |
91641-80818 |
from US $0.82 |
||
|
48832R
|
48832R
48832-52020 Bracket, Rear Stabilizer Bar, No.1 Rh[09.1990 - 09.1994] EL45 |
48832-52020 |
US $13.60 |
||
|
48833R
|
48833R
48833-16010 Bracket, Rear Stabilizer Bar, No.1 Lh[09.1990 - 09.1994] EL45 |
48833-16010 |
US $11.50 |
||
| replacements | |||||
|
48833R
|
48833R
91641-80818 BOLT WWASHER[09.1990 - 09.1994] EL45 |
91641-80818 |
from US $0.82 |
||
|
48833R
|
48833R
48833-52010 Bracket, Rear Stabilizer Bar, No.1 Lh[09.1990 - 09.1994] EL45 |
48833-52010 |
US $13.60 |
||
|
91611A0818
|
91611A0818
91611-A0818 New Genuine Part |
91611-A0818 |
US $2.04 |
||
|
9011908622
|
9011908622
90119-08622 Bolt (For Control Shift Lever Retainer) |
90119-08622 |
US $2.04 |
||
|
9011910596
|
9011910596
90119-10596 New Genuine Part |
90119-10596 |
US $10.72 |
||
|
9017910076
|
9017910076
90179-10076 NUT |
90179-10076 |
US $2.62 |
||
|
9017912025
|
9017912025
90179-12025 Nut (For Rear Axle Carrier) |
90179-12025 |
from US $1.21 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.19 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.13 |
||
|
9461211800
|
9461211800
94612-11800 Washer (For Shift & Select Lever Shaft) |
94612-11800 |
US $3.20 |
||
