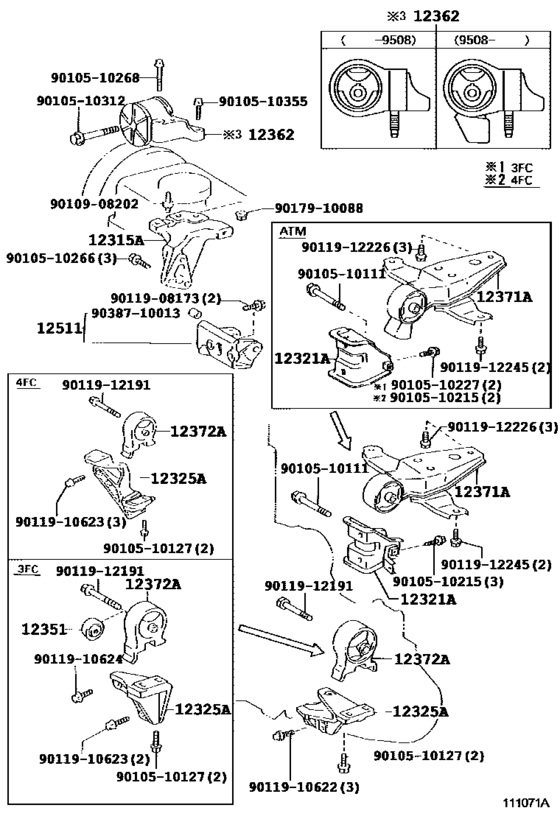

Mounting ([09.1994 - ] (9409- )4EFE,5EFE..EL51,53) Diagram Toyota COROLLA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL53
- grade
- TIA
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- Model
- COROLLA 2
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12315A
|
12315A
12315-11040 Bracket, Engine Mounting, Rh(For Transverse Engine)[09.1994 -] 4EFE,5EFE..EL5# |
12315-11040 |
US $80.08 |
||
|
12321A
|
12321A
12303-11050
Bracket, Engine Mounting, Rear(For Transverse Engine)
[09.1994 - 04.1996] 4EFE,5EFE..EL51,53..MTM |
12303-11050 |
— | ||
|
12321A
|
12321A
12303-11051
Bracket, Engine Mounting, Rear(For Transverse Engine)
[04.1996 - 08.1997] 4EFE,5EFE..EL51,53..MTM |
12303-11051 |
— | ||
| replacements | |||||
|
12321A
|
12321A
12303-11052
Bracket, Engine Mounting, Rear(For Transverse Engine)
[04.1996 - 08.1997] 4EFE,5EFE..EL51,53..MTM |
12303-11052 |
— | ||
|
12321A
|
12321A
12303-11100
Bracket, Engine Mounting, Rear(For Transverse Engine)
[04.1996 - 08.1997] 4EFE,5EFE..EL51,53..MTM |
12303-11100 |
— | ||
|
12321A
|
12321A
12303-11052
Bracket, Engine Mounting, Rear(For Transverse Engine)
[08.1997 -] 4EFE,5EFE..EL51,53..MTM |
12303-11052 |
— | ||
|
12325A
|
12325A
12325-11070 Bracket, Engine Mounting, Lh(For Transverse Engine)[09.1994 -] 4EFE,5EFE..EL51,53..MTM |
12325-11070 |
US $56.35 |
||
|
12362
|
12362
12362-11140
Insulator, Engine Mounting, Rh(For Transverse Engine)
[09.1994 - 08.1995] 5EFE..EL53;5EFE..EL55..4FC |
12362-11140 |
— | ||
| replacement | |||||
|
12362
|
12362
12362-11300 Insulator, Engine Mounting, Rh(For Transverse Engine)[09.1994 - 08.1995] 5EFE..EL53;5EFE..EL55..4FC |
12362-11300 |
from US $95.08 |
||
|
12362
|
12362
12362-11300 Insulator, Engine Mounting, Rh(For Transverse Engine)[12.1997 -] 5EFE..EL55..4FC;4EFE,5EFE..EL51,53 |
12362-11300 |
from US $95.08 |
||
|
12371A
|
12371A
12371-11490 Insulator, Engine Mounting, Rear[09.1994 - 11.1995] 4EFE,5EFE..EL51,53..MTM |
12371-11490 |
US $132.50 |
||
| replacement | |||||
|
12371A
|
12371A
12371-11491 Insulator, Engine Mounting, Rear[09.1994 - 11.1995] 4EFE,5EFE..EL51,53..MTM |
12371-11491 |
US $131.04 |
||
|
12371A
|
12371A
12371-11491 Insulator, Engine Mounting, Rear[11.1995 -] 4EFE,5EFE..EL51,53..MTM |
12371-11491 |
US $131.04 |
||
|
12372A
|
12372A
12372-11290 Insulator, Engine Mounting, Lh(For Transverse Engine)[09.1994 -] 4EFE,5EFE..EL51,53..MTM |
12372-11290 |
US $88.82 |
||
|
12511
|
12511
12511-11020 Bracket, Alternator, No.1[09.1994 -] 4EFE,5EFE..EL5# |
12511-11020 |
US $56.35 |
||
|
9010510111
|
9010510111
90105-10111 Bolt(For Alternator) |
90105-10111 |
US $4.02 |
||
|
9010510127
|
9010510127
90105-10127 New Genuine Part |
90105-10127 |
US $1.49 |
||
|
9010510215
|
9010510215
90105-10215 New Genuine Part |
90105-10215 |
US $2.62 |
||
|
9010510227
|
9010510227
90105-10227 New Genuine Part |
90105-10227 |
US $3.20 |
||
| replacement | |||||
|
9010510227
|
9010510227
91552-G1040 BOLT FLANGE |
91552-G1040 |
US $1.92 |
||
|
9010510266
|
9010510266
90105-10266
Bolt
|
90105-10266 |
— | ||
|
9010510268
|
9010510268
90105-10268
New Genuine Part
|
90105-10268 |
— | ||
|
9010510312
|
9010510312
90105-10312 New Genuine Part |
90105-10312 |
US $4.22 |
||
|
9010510355
|
9010510355
90105-10355 BOLT WASHER BASED |
90105-10355 |
US $2.62 |
||
|
9010908202
|
9010908202
90109-08202 New Genuine Part |
90109-08202 |
US $2.77 |
||
|
9011908173
|
9011908173
90119-08173 New Genuine Part |
90119-08173 |
US $3.06 |
||
|
9011910622
|
9011910622
90119-10622 BOLT WWASHER |
90119-10622 |
US $2.97 |
||
|
9011910623
|
9011910623
90119-10623 New Genuine Part |
90119-10623 |
US $3.20 |
||
|
9011910624
|
9011910624
90119-10624 New Genuine Part |
90119-10624 |
US $3.49 |
||
|
9011912191
|
9011912191
90119-12191 New Genuine Part |
90119-12191 |
US $6.64 |
||
|
9011912226
|
9011912226
90119-12226 New Genuine Part |
90119-12226 |
US $4.16 |
||
|
9011912245
|
9011912245
90119-12245
New Genuine Part
|
90119-12245 |
— | ||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9038710013
|
9038710013
90387-10013 Bush, Alternator Bracket |
90387-10013 |
US $4.22 |
||
