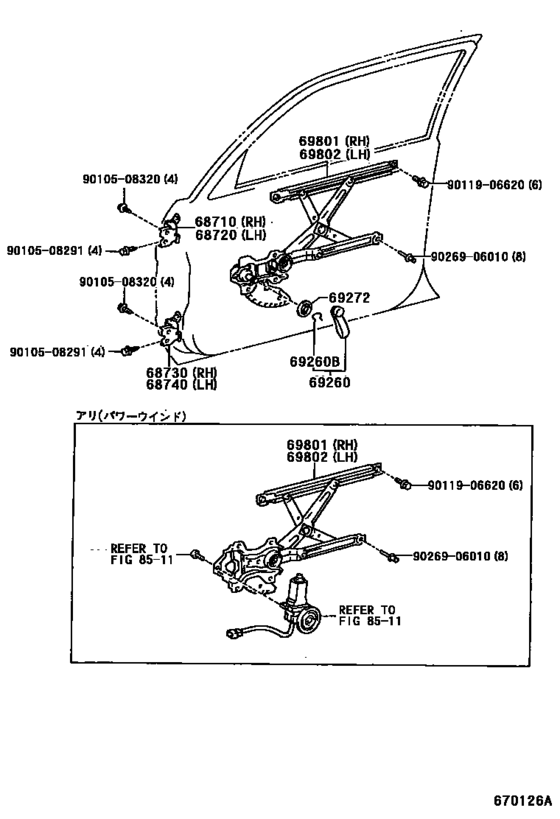

Front Door Window Regulator & Hinge ([09.1994 - ] (9409- )) Diagram Toyota COROLLA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL55
- grade
- WIN
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-16060
Hinge Assy, Front Door, Upper Rh
[09.1994 -] EL5#,NL50 |
68710-16060 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-60050 Hinge Assy, Front Door, Upper Rh[09.1994 -] EL5#,NL50 |
68710-60050 |
from US $43.82 |
||
|
68720
|
68720
68720-16060 Hinge Assy, Front Door, Upper Lh[09.1994 -] EL5#,NL50 |
68720-16060 |
US $47.70 |
||
|
68730
|
68730
68720-16060 Hinge Assy, Front Door, Upper Lh[09.1994 -] EL5#,NL50 |
68720-16060 |
US $47.70 |
||
|
68740
|
68740
68710-16060
Hinge Assy, Front Door, Upper Rh
[09.1994 -] EL5#,NL50 |
68710-16060 |
— | ||
| replacement | |||||
|
68740
|
68740
68710-60050 Hinge Assy, Front Door, Upper Rh[09.1994 -] EL5#,NL50 |
68710-60050 |
from US $43.82 |
||
|
69260
|
69260
69260-20090-B0 Handle Assy, Front Door Window Regulator[09.1994 - 08.1996] EL51,55,NL50..WIN BLUEISH GRAY,TRIM1# |
69260-20090-B0 |
US $21.55 |
||
| replacement | |||||
|
69260
|
69260
69260-20090-C0 Handle Assy, Front Door Window Regulator[09.1994 - 08.1996] EL51,55,NL50..WIN BLUEISH GRAY,TRIM1# |
69260-20090-C0 |
US $21.32 |
||
|
69260
|
69260
69260-20090-B1
Handle Assy, Front Door Window Regulator
[08.1996 -] EL51,55,NL50..WIN SHADOW GRAY,TRIM1# |
69260-20090-B1 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-20090-B4 Handle Assy, Front Door Window Regulator (DK.CHARCOAL)[08.1996 -] EL51,55,NL50..WIN SHADOW GRAY,TRIM1# |
69260-20090-B4 |
US $21.84 |
||
|
69260
|
69260
69260-20090-E2 Handle Assy, Front Door Window Regulator[12.1997 - 05.1998] EL51,55,NL50..WIN OAK,TRIM4# |
69260-20090-E2 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-20090-C0 Handle Assy, Front Door Window Regulator[12.1997 - 05.1998] EL51,55,NL50..WIN OAK,TRIM4# |
69260-20090-C0 |
US $21.32 |
||
|
69260
|
69260
69260-20090-E3 Handle Assy, Front Door Window Regulator[05.1998 -] EL51,55,NL50..WIN SANDAL WOOD,TRIM4# |
69260-20090-E3 |
US $21.69 |
||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[09.1994 - 02.1995] EL51,55,NL50..WIN |
90520-01274 |
from US $1.11 |
||
|
69272
|
69272
69268-20020
Plate, Window Regulator Handle
[09.1994 - 02.1995] EL51,55,NL50..WIN |
69268-20020 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[09.1994 - 02.1995] EL51,55,NL50..WIN |
69285-22010-08 |
from US $3.20 |
||
|
69801
|
69801
69801-16050
Regulator Sub-Assy, Front Door Window, Rh
[09.1994 -] EL5#,NL50 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69801-16050 |
— | ||
|
69801
|
69801
69810-16150 Regulator Sub-Assy, Front Door Window, Rh[09.1994 - 08.1996] EL51,55,NL50..WIN |
69810-16150 |
US $84.45 |
||
|
69801
|
69801
69810-16240 Regulator Sub-Assy, Front Door Window, Rh[08.1996 -] EL51,55,NL50..WIN |
69810-16240 |
US $84.45 |
||
|
69802
|
69802
69802-16050 Regulator Sub-Assy, Front Door Window, Lh[09.1994 -] EL5#,NL50 ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) |
69802-16050 |
US $82.12 |
||
|
69802
|
69802
69820-16150
Regulator Sub-Assy, Front Door Window, Lh
[09.1994 - 08.1996] EL51,55,NL50..WIN |
69820-16150 |
— | ||
|
69802
|
69802
69820-16240
Regulator Sub-Assy, Front Door Window, Lh
[08.1996 -] EL51,55,NL50..WIN |
69820-16240 |
— | ||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
US $1.44 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.44 |
||
|
9011906620
|
9011906620
90119-06620 BOLT WWASHER |
90119-06620 |
US $1.92 |
||
|
9026906010
|
9026906010
90269-06010 New Genuine Part |
90269-06010 |
US $3.32 |
||
