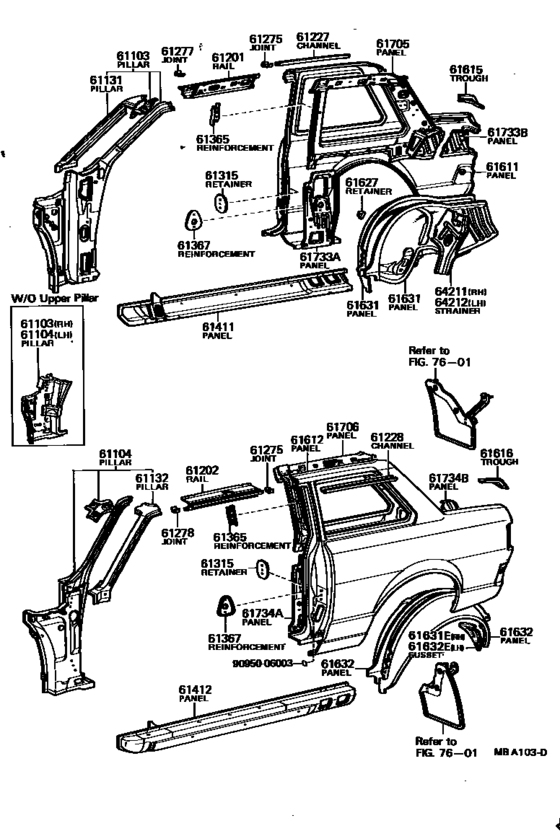

Side Member ([03.1979 - 04.1983] (7903-8304)SED..2D) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- KE70
- grade
- DX
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 03.1979
- To
- 08.1981
- Gear Shift Type
- 2FC
- No.of Doors
- 2D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61103
|
61103
61021-12180
Pillar Sub-Assy, Front Body, Rh
[03.1979 - 08.1981] AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) W/UPR PILLAR |
61021-12180 |
— | ||
| replacements | |||||
|
61103
|
61103
61021-12181 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [03.1979 - 08.1981] AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) W/UPR PILLAR |
61021-12181 |
US $557.65 |
||
|
61103
|
61103
84230-12100 Switch Assy, Courtesy Lamp (for Engine Room)[03.1979 - 08.1981] AE70,KE7#,TE7#..(SED,V)..(CTD,DX,GL,GT,SE) W/UPR PILLAR |
84230-12100 |
US $18.05 |
||
|
61103
|
61103
61021-12181 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [08.1981 - 08.1983] CE71,KE72,TE74..DX,GL W/UPR PILLAR; AE70,CE70,KE70,73..(SED,WG)..(CTD,DX) W/UPR PILLAR |
61021-12181 |
US $557.65 |
||
|
61103
|
61103
61021-12902 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [03.1979 - 08.1981] AE70,KE7#,TE7#..SED,V W/O UPR PILLAR |
61021-12902 |
US $403.31 |
||
| replacements | |||||
|
61103
|
61103
61021-12905 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [03.1979 - 08.1981] AE70,KE7#,TE7#..SED,V W/O UPR PILLAR |
61021-12905 |
US $406.22 |
||
|
61103
|
61103
84230-12100 Switch Assy, Courtesy Lamp (for Engine Room)[03.1979 - 08.1981] AE70,KE7#,TE7#..SED,V W/O UPR PILLAR |
84230-12100 |
US $18.05 |
||
|
61103
|
61103
61021-12905 Pillar Sub-Assy, Front Body, RhFRONT BODY, RH [08.1981 - 08.1983] CE71,KE72,TE74 W/O UPR PILLAR; AE70,CE70,KE70,73..(SED,WG)..(CTD,DX,STD) W/O UPR PILLAR |
61021-12905 |
US $406.22 |
||
|
61104
|
61104
61022-12210 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [03.1979 - 08.1981] AE70,KE70..SED..(CTD,DX) W/UPR PILLAR |
61022-12210 |
US $546 |
||
| replacements | |||||
|
61104
|
61104
61022-12211 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [03.1979 - 08.1981] AE70,KE70..SED..(CTD,DX) W/UPR PILLAR |
61022-12211 |
US $557.65 |
||
|
61104
|
61104
84230-12100 Switch Assy, Courtesy Lamp (for Engine Room)[03.1979 - 08.1981] AE70,KE70..SED..(CTD,DX) W/UPR PILLAR |
84230-12100 |
US $18.05 |
||
|
61104
|
61104
61022-12211 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [08.1981 - 08.1983] CE71,KE72,TE74..DX,GL W/UPR PILLAR; AE70,CE70,KE70,73..(SED,WG)..(CTD,DX) W/UPR PILLAR |
61022-12211 |
US $557.65 |
||
|
61104
|
61104
61022-12902 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [03.1979 - 08.1981] AE70,KE7#,TE7#..SED,V W/O UPR PILLAR |
61022-12902 |
US $403.31 |
||
| replacements | |||||
|
61104
|
61104
61022-12905 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [03.1979 - 08.1981] AE70,KE7#,TE7#..SED,V W/O UPR PILLAR |
61022-12905 |
US $406.22 |
||
|
61104
|
61104
84230-12100 Switch Assy, Courtesy Lamp (for Engine Room)[03.1979 - 08.1981] AE70,KE7#,TE7#..SED,V W/O UPR PILLAR |
84230-12100 |
US $18.05 |
||
|
61104
|
61104
61022-12905 Pillar Sub-Assy, Front Body, LhFRONT BODY, LH [08.1981 - 08.1983] CE71,KE72,TE74 W/O UPR PILLAR; AE70,CE70,KE70,73..(SED,WG)..(CTD,DX,STD) W/O UPR PILLAR |
61022-12905 |
US $406.22 |
||
|
61131
|
61131
61131-12140 Pillar, Front Body, Upper Outer RhFRONT BODY, UPPER OUTER RH [03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..SED,V,WG |
61131-12140 |
US $125.22 |
||
|
61132
|
61132
61132-12140 Pillar, Front Body, Upper Outer LhFRONT BODY, UPPER OUTER LH [03.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..SED,V,WG |
61132-12140 |
US $125.22 |
||
|
61201
|
61201
61201-12030 Rail Sub-Assy, Roof Side, RhROOF SIDE, RH [03.1979 - 07.1987] KE70,71,72,TE73,74..(SED,V)..2D |
61201-12030 |
US $88.82 |
||
|
61202
|
61202
61202-12040 Rail Sub-Assy, Roof Side, LhROOF SIDE, LH [03.1979 - 07.1987] KE70,71,72,TE73,74..(SED,V)..2D |
61202-12040 |
US $88.82 |
||
|
61227
|
61227
61267-12010
Channel, Roof Drip Side, Rear Rh
[03.1979 - 04.1983] KE70..SED..2D |
61267-12010 |
— | ||
|
61228
|
61228
61268-12010
Channel, Roof Drip Side, Rear Lh
[03.1979 - 04.1983] KE70..SED..2D |
61268-12010 |
— | ||
|
61315
|
61315
61309-20010 Retainer, Door Lock Striker PlateDOOR LOCK STRIKER PLATE [03.1979 - 07.1987] KE70,71,72,TE73,74..(SED,V)..2D |
61309-20010 |
US $13.40 |
||
|
61365
|
61365
61365-12020 Reinforcement, Belt Anchor To Center PillarBELT ANCHOR TO CENTER PILLAR [03.1979 - 07.1987] KE70,71,72,TE73,74..(SED,V)..2D RH |
61365-12020 |
US $9.17 |
||
|
61365
|
61365
61366-12010 Reinforcement, Belt Anchor To Center PillarBELT ANCHOR TO CENTER PILLAR [03.1979 - 07.1987] KE70,71,72,TE73,74..(SED,V)..2D LH |
61366-12010 |
US $9.17 |
||
|
61367
|
61367
61367-14010 Reinforcement, Belt Anchor To Center Pillar, Lower[03.1979 - 07.1987] CE71,KE70,71,72,TE73,74..(SED,V)..2D |
61367-14010 |
US $9.17 |
||
|
61411
|
61411
61401-12010 Panel, Rocker, Outer RhROCKER, OUTER RH [03.1979 - 07.1987] CE71,KE70,71,72,TE73,74..(SED,V)..2D |
61401-12010 |
US $246.06 |
||
|
61412
|
61412
61402-12010 Panel, Rocker, Outer LhROCKER, OUTER LH [03.1979 - 07.1987] CE71,KE70,71,72,TE73,74..(SED,V)..2D |
61402-12010 |
US $246.06 |
||
|
61611
|
61611
61611-12907
Panel, Quarter, Rh
[03.1979 - 04.1983] KE70..SED..2D |
61611-12907 |
— | ||
|
61611
|
61611
61611-12908
Panel, Quarter, Rh
[08.1981 - 04.1983] KE70..SED..DX..2D W/TRUNK OPENER |
61611-12908 |
— | ||
|
61612
|
61612
61612-12410
Panel, Quarter, Lh
[03.1979 - 04.1983] KE70..SED..2D |
61612-12410 |
— | ||
| replacement | |||||
|
61612
|
61612
61612-1A060
Panel, Quarter, Lh
[03.1979 - 04.1983] KE70..SED..2D |
61612-1A060 |
— | ||
|
61615
|
61615
61621-12150
Trough, Luggage Compartment Opening, Rh
[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..SED |
61621-12150 |
— | ||
|
61616
|
61616
61622-12150
Trough, Luggage Compartment Opening, Lh
[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..SED |
61622-12150 |
— | ||
|
61627
|
61627
61647-14010 Retainer, Quarter Trim, LowerQUARTER TRIM, LOWER [03.1979 - 07.1987] KE70,71,72,TE73,74..(SED,V)..2D |
61647-14010 |
US $2.33 |
||
|
61631
|
61631
61603-12904
Panel, Quarter Wheel House, Rh
[03.1979 - 08.1981] AE70,KE70,TE70,71..HT,SED INNER |
61603-12904 |
— | ||
|
61631
|
61631
61631-12901 Panel, Quarter Wheel House, Rh[03.1979 - 07.1979] AE70,KE70,TE71..SED OUTER |
61631-12901 |
US $126.67 |
||
| replacement | |||||
|
61631
|
61631
61631-12903
Panel, Quarter Wheel House, Rh
[03.1979 - 07.1979] AE70,KE70,TE71..SED OUTER |
61631-12903 |
— | ||
|
61631
|
61631
61631-12903
Panel, Quarter Wheel House, Rh
[11.1979 - 04.1983] AE70,CE70,KE70,TE70,71..SED OUTER |
61631-12903 |
— | ||
|
61631
|
61631
61631-12905 Panel, Quarter Wheel House, RhQUARTER WHEEL HOUSE, RH [07.1979 - 11.1979] AE70,KE70,TE70,71..SED OUTER |
61631-12905 |
US $126.67 |
||
| replacement | |||||
|
61631
|
61631
61631-12903
Panel, Quarter Wheel House, Rh
[07.1979 - 11.1979] AE70,KE70,TE70,71..SED OUTER |
61631-12903 |
— | ||
|
61631E
|
61631E
61645-12050
Gusset, Quarter Wheel House, Rear Rh
[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..HT,SED |
61645-12050 |
— | ||
| replacement | |||||
|
61631E
|
61631E
61645-12080 Gusset, Quarter Wheel House, Rear Rh[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..HT,SED |
61645-12080 |
US $4.37 |
||
|
61632
|
61632
61604-12904
Panel, Quarter Wheel House, Lh
[03.1979 - 08.1981] AE70,KE70,TE70,71..HT,SED INNER |
61604-12904 |
— | ||
|
61632
|
61632
61632-12080
Panel, Quarter Wheel House, Lh
[03.1979 - 11.1979] AE70,KE7#,TE7#..SED,V OUTER |
61632-12080 |
— | ||
|
61632
|
61632
61632-12120
Panel, Quarter Wheel House, Lh
[11.1979 - 07.1987] AE70,CE7#,KE7#,TE7#..SED,V,WG OUTER |
61632-12120 |
— | ||
|
61632E
|
61632E
61646-12050 Gusset, Quarter Wheel House, Rear LhQUARTER WHEEL HOUSE, REAR LH [03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..HT,SED |
61646-12050 |
US $9.32 |
||
|
61705
|
61705
61705-12932
Panel Sub-Assy, Roof Side, Inner Rh
[03.1979 - 08.1981] KE70..SED..(DX,STD)..2D |
61705-12932 |
— | ||
|
61705
|
61705
61705-12933
Panel Sub-Assy, Roof Side, Inner Rh
[03.1979 - 08.1981] KE70..SED..2D W/*ELR |
61705-12933 |
— | ||
|
61706
|
61706
61706-12932
Panel Sub-Assy, Roof Side, Inner Lh
[03.1979 - 08.1981] KE70..SED..(DX,STD)..2D |
61706-12932 |
— | ||
|
61706
|
61706
61706-12933
Panel Sub-Assy, Roof Side, Inner Lh
[03.1979 - 08.1981] KE70..SED..2D W/*ELR |
61706-12933 |
— | ||
|
61733A
|
61733A
61733-12070 Panel, Roof Side, Inner Front RhROOF SIDE, INNER FRONT RH [03.1979 - 07.1987] CE71,KE70,71,72,TE73,74..(SED,V)..2D |
61733-12070 |
US $31.30 |
||
|
61733B
|
61733B
61735-12090
Panel, Roof Side, Inner Rear Rh
[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..SED |
61735-12090 |
— | ||
|
61734A
|
61734A
61734-12070 Panel, Roof Side, Inner Front LhROOF SIDE, INNER FRONT LH [03.1979 - 07.1987] CE71,KE70,71,72,TE73,74..(SED,V)..2D |
61734-12070 |
US $31.30 |
||
|
61734B
|
61734B
61736-12090
Panel, Roof Side, Inner Rear Lh
[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..SED |
61736-12090 |
— | ||
|
64211
|
64211
64211-12020
Strainer, Package Tray To Floor, Rh
[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..SED |
64211-12020 |
— | ||
|
64212
|
64212
64212-12020
Strainer, Package Tray To Floor, Lh
[03.1979 - 04.1983] AE70,CE70,KE70,TE70,71..SED |
64212-12020 |
— | ||
|
9095006003
|
9095006003
90950-06003
Protector, Front Side Panel, No.3
|
90950-06003 |
— | ||
| replacement | |||||
|
9095006003
|
9095006003
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
