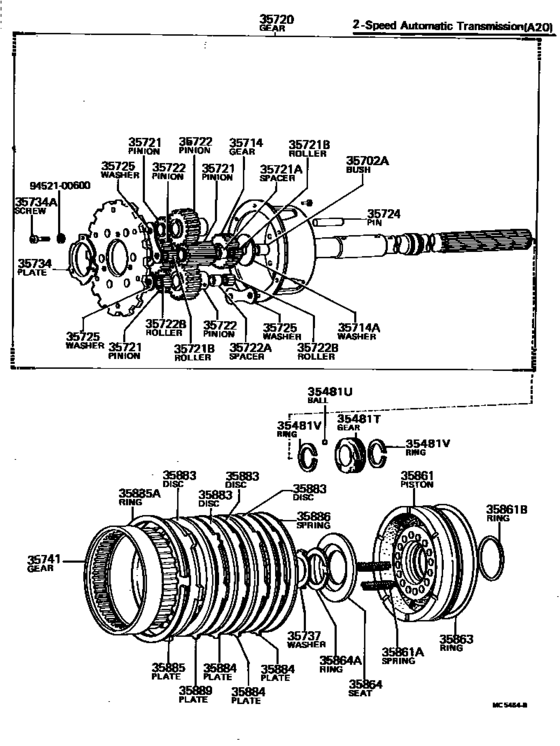

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([03.1979 - 08.1981] (7903-8108)2FC) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- KE70
- grade
- DX
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 03.1979
- To
- 08.1981
- Gear Shift Type
- 2FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35481T
|
35481T
33481-14010
Gear, Speedometer Drive (Mtm)
[03.1979 - 08.1981] KE70..2FC N=6 |
33481-14010 |
— | ||
|
35481T
|
35481T
33481-25030 Gear, Speedometer Drive (Mtm)[08.1981 - 08.1986] KE70,74,TE74..3FC N=6 |
33481-25030 |
US $30.87 |
||
|
35481U
|
35481U
90360-05006 Key Or Ball, 1St Gear Bearing Inner Race LockSPEEDMETER DRIVE GEAR (ATM) [03.1979 - 08.1981] KE70..2FC |
90360-05006 |
US $2.04 |
||
| replacement | |||||
|
35481U
|
35481U
90360-05012 Ball, Reverse Shift Restrict[03.1979 - 08.1981] KE70..2FC |
90360-05012 |
from US $0.92 |
||
|
35481U
|
35481U
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1981 - 07.1987] AE70,CE70,71,KE70,74,TE74..ATM |
90360-06004 |
from US $0.90 |
||
| replacement | |||||
|
35481U
|
35481U
90080-36191
Ball, Check Valve
[08.1981 - 07.1987] AE70,CE70,71,KE70,74,TE74..ATM |
90080-36191 |
— | ||
|
35481V
|
35481V
90520-21066
Ring Or Spacer (For Mtm Speedometer Drive Gear)
[03.1979 - 08.1981] KE70..2FC |
90520-21066 |
— | ||
|
35481V
|
35481V
90520-28009 Ring Or Spacer (For Mtm Speedometer Drive Gear)[08.1981 - 07.1987] AE70,CE70,71,KE70,74,TE74..ATM 厚さ＝１．５０，外径＝３３．８ |
90520-28009 |
from US $1.56 |
||
|
35702A
|
35702A
90999-73040 Bush, Bimetal Formed (For Planetary Output Shaft)BIMETAL FORMED (FOR PLANETARY OUTPUT SHAFT) [03.1979 - 08.1981] KE70..2FC |
90999-73040 |
US $5.24 |
||
|
35714
|
35714
35714-12010
Gear, Input Sun
[03.1979 - 08.1981] KE70..2FC |
35714-12010 |
— | ||
|
35714A
|
35714A
90209-10053 Washer (For Input Sun Gear Thrust)[03.1979 - 08.1981] KE70..2FC |
90209-10053 |
US $7.28 |
||
|
35720
|
35720
35720-14010
Gear Assy, Front Planetary
[08.1981 - 08.1986] AE70,KE70,74..3FC |
35720-14010 |
— | ||
|
35720
|
35720
35720-20031
Carrier Sub-Assy, Planetary W/lock Gear
[03.1979 - 08.1981] KE70..2FC |
35720-20031 |
— | ||
|
35721
|
35721
35721-12010
Pinion, Planetary Long
[03.1979 - 08.1981] KE70..2FC |
35721-12010 |
— | ||
|
35721A
|
35721A
90560-08220 Spacer (For Planetary Long Pinion)[03.1979 - 08.1981] KE70..2FC |
90560-08220 |
US $3.06 |
||
|
35721B
|
35721B
90361-02046 Roller (For Planetary Long Pinion)[03.1979 - 08.1981] KE70..2FC |
90361-02046 |
US $1.75 |
||
| replacement | |||||
|
35721B
|
35721B
90361-02006 Roller (For Planetary Long Pinion)[03.1979 - 08.1981] KE70..2FC |
90361-02006 |
US $1.60 |
||
|
35722
|
35722
35722-12010
Pinion, Planetary Short
[03.1979 - 08.1981] KE70..2FC |
35722-12010 |
— | ||
|
35722A
|
35722A
90560-08220 Spacer (For Planetary Long Pinion)[03.1979 - 08.1981] KE70..2FC |
90560-08220 |
US $3.06 |
||
|
35722B
|
35722B
90361-02046 Roller (For Planetary Long Pinion)[03.1979 - 08.1981] KE70..2FC |
90361-02046 |
US $1.75 |
||
| replacement | |||||
|
35722B
|
35722B
90361-02006 Roller (For Planetary Long Pinion)[03.1979 - 08.1981] KE70..2FC |
90361-02006 |
US $1.60 |
||
|
35724
|
35724
35724-12010
Pin, Planetary Short Pinion
[03.1979 - 08.1981] KE70..2FC |
35724-12010 |
— | ||
|
35725
|
35725
35725-12010
Washer, Planetary Pinion Thrust, No.1
[03.1979 - 08.1981] KE70..2FC |
35725-12010 |
— | ||
|
35734
|
35734
35734-12010 Plate, Planetary Pinion Pin LockPLANETARY PINION PIN LOCK [03.1979 - 08.1981] KE70..2FC |
35734-12010 |
US $3.93 |
||
|
35734A
|
35734A
90154-60006 Screw (For Planetary Pinion Pin Lock Plate)[03.1979 - 08.1981] KE70..2FC |
90154-60006 |
US $2.04 |
||
|
35737
|
35737
35737-12010
Washer, Planetary Carrier Thrust
[03.1979 - 08.1981] KE70..2FC |
35737-12010 |
— | ||
|
35737
|
35737
35737-22010 Washer, Planetary Carrier Thrust[08.1981 - 07.1987] AE70,CE70,71,KE70,74,TE74..ATM |
35737-22010 |
US $7.57 |
||
|
35741
|
35741
35741-12010 Gear, Reverse RingREVERSE RING [03.1979 - 08.1981] KE70..2FC |
35741-12010 |
US $144.14 |
||
|
35861
|
35861
35861-20011
Piston, Reverse
[03.1979 - 08.1981] KE70..2FC |
35861-20011 |
— | ||
|
35861A
|
35861A
90501-10320 Spring, Compression (For Reverse Piston Back)COMPRESSION (FOR REVERSE PISTON BACK) [03.1979 - 08.1981] KE70..2FC |
90501-10320 |
US $2.33 |
||
|
35861B
|
35861B
90301-44104 Ring, O (For Reverse Piston Inner Seal)O (FOR REVERSE PISTON INNER SEAL) [03.1979 - 08.1981] KE70..2FC |
90301-44104 |
US $4.95 |
||
|
35863
|
35863
35863-12010 Ring, Reverse Piston Oil Seal, OuterREVERSE PISTON OIL SEAL, OUTER [03.1979 - 08.1981] KE70..2FC |
35863-12010 |
US $15.87 |
||
|
35864
|
35864
35864-12010 Seat, Reverse Piston Return SpringREVERSE PISTON RETURN SPRING [03.1979 - 08.1981] KE70..2FC |
35864-12010 |
US $4.37 |
||
|
35864A
|
35864A
90520-40078 Ring, Shaft Snap (For Output)SHAFT SNAP (FOR OUTPUT) [03.1979 - 08.1981] KE70..2FC |
90520-40078 |
US $2.33 |
||
|
35883
|
35883
35883-12011 Disc, Reverse ClutchREVERSE CLUTCH [03.1979 - 08.1981] KE70..2FC |
35883-12011 |
US $35.24 |
||
| replacement | |||||
|
35883
|
35883
35883-12012 Disc, Reverse Clutch[03.1979 - 08.1981] KE70..2FC |
35883-12012 |
US $35.24 |
||
|
35884
|
35884
35884-12010 Plate, Reverse Clutch, No.2REVERSE CLUTCH, NO.2 [03.1979 - 08.1981] KE70..2FC |
35884-12010 |
US $8.88 |
||
|
35885
|
35885
35885-12010 Plate, Reverse Clutch PressureREVERSE CLUTCH PRESSURE [03.1979 - 08.1981] KE70..2FC |
35885-12010 |
US $19.22 |
||
|
35885A
|
35885A
90521-99094
Ring, Hole Snap (For Clutch Plate)
[03.1979 - 08.1981] KE70..2FC |
90521-99094 |
— | ||
|
35886
|
35886
35886-12010
Spring, Reverse Clutch Cushion
[03.1979 - 08.1981] KE70..2FC |
35886-12010 |
— | ||
|
35889
|
35889
35889-12010 Plate, Reverse Clutch, No.2REVERSE CLUTCH, NO.2 [03.1979 - 08.1981] KE70..2FC |
35889-12010 |
US $8.88 |
||
|
9452100600
|
9452100600
94521-00600
New Genuine Part
|
94521-00600 |
— | ||
