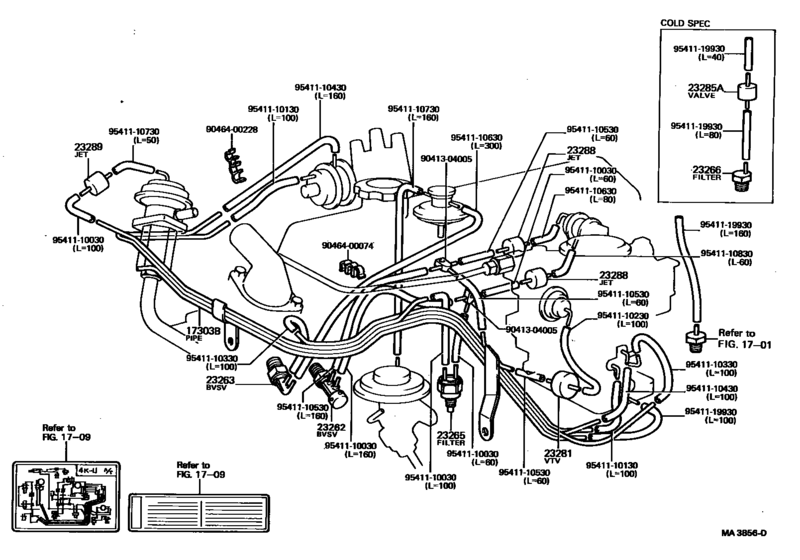

Vacuum Piping ([03.1979 - 08.1981] (7903-8108)4KU..2FC) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- KE70
- grade
- DX
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 03.1979
- To
- 08.1981
- Gear Shift Type
- 2FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-13020
Pipe Sub-Assy, Air, No.1
[03.1979 - 08.1981] 4KU..KE70..2FC |
17303-13020 |
— | ||
|
17303B
|
17303B
17303-13060 Pipe Sub-Assy, Air, No.1AIR, NO.1 [08.1981 - 07.1987] 4KU..KE70,73 |
17303-13060 |
US $115.02 |
||
|
23262
|
23262
25810-24010
Valve, Bimetal Vacuum Switching, No.1
[08.1981 - 07.1987] 4K#..KE70,72,73 |
25810-24010 |
— | ||
|
23262
|
23262
25820-13010
Valve, Bimetal Vacuum Switching, No.1
[03.1979 - 08.1981] 4KU..KE70 |
25820-13010 |
— | ||
|
23263
|
23263
90925-05048 Valve, Bimetal Vacuum Switching, No.2[03.1979 - 08.1981] 4KU..KE70..2FC |
90925-05048 |
US $31.45 |
||
| replacement | |||||
|
23263
|
23263
90925-05058
Valve, Bimetal Vacuum Switching, No.1
[03.1979 - 08.1981] 4KU..KE70..2FC |
90925-05058 |
— | ||
|
23265
|
23265
90917-11023 Filter, Gas, No.1[03.1979 - 08.1981] 4KU..KE70 |
90917-11023 |
from US $23.41 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1981 - 07.1987] 4K#,5KJ..KE7# DENSO |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1981 - 07.1987] 4K#,5KJ..KE7# DENSO |
90917-11027 |
from US $23.71 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1981 - 07.1987] 4K#,5KJ..KE7# AISIN |
90917-11027 |
from US $23.71 |
||
|
23266
|
23266
90917-11022 Filter, Gas, No.1[03.1979 - 08.1981] 4KU..KE70 COLD SPEC |
90917-11022 |
from US $15.50 |
||
|
23281
|
23281
90925-01014
Valve, Vacuum Transmitting, No.1
[08.1981 - 07.1987] 4K#,5KJ..KE7# |
90925-01014 |
— | ||
|
23281
|
23281
90925-01041
Valve, Bimetal Vacuum Switching, No.1
[03.1979 - 08.1981] 4KU..KE70..2FC |
90925-01041 |
— | ||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[03.1979 - 08.1981] 4KU..KE70 COLD SPEC |
90917-10049 |
from US $6.59 |
||
|
23288
|
23288
90925-04005 Jet(For Carburetor)[08.1981 - 07.1987] 4K#,5KJ..KE7# BLUE |
90925-04005 |
US $11.01 |
||
|
23288
|
23288
90925-04006 Jet(For Opener)[08.1981 - 07.1987] 4K#..KE70,72,73 YELLOW |
90925-04006 |
US $15.90 |
||
|
23289
|
23289
90925-04018 Jet, No.2NO.2 [03.1979 - 08.1981] 4KU..KE70..2FC |
90925-04018 |
US $16.16 |
||
|
23289
|
23289
90925-04023 Jet, No.1[08.1981 - 12.1981] 4KU..KE70 RED |
90925-04023 |
US $4.37 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400228
|
9046400228
90464-00228 New Genuine Part |
90464-00228 |
US $2.33 |
||
|
9541110030
|
9541110030
95411-10030
Hose (For Idle Up Device)
|
95411-10030 |
— | ||
| replacement | |||||
|
9541110030
|
9541110030
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110130
|
9541110130
95411-10130
Pipe Or Hose
|
95411-10130 |
— | ||
| replacement | |||||
|
9541110130
|
9541110130
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110230
|
9541110230
95411-10230 Hose, Vacuum, No.2 (For Front Drive Shift) |
95411-10230 |
US $6.70 |
||
| replacement | |||||
|
9541110230
|
9541110230
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110630
|
9541110630
95411-10630 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10630 |
US $6.70 |
||
| replacement | |||||
|
9541110630
|
9541110630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110730
|
9541110730
95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10730 |
US $6.70 |
||
| replacement | |||||
|
9541110730
|
9541110730
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110830
|
9541110830
95411-10830 Hose, Cruise Control Vacuum |
95411-10830 |
US $6.70 |
||
| replacement | |||||
|
9541110830
|
9541110830
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
