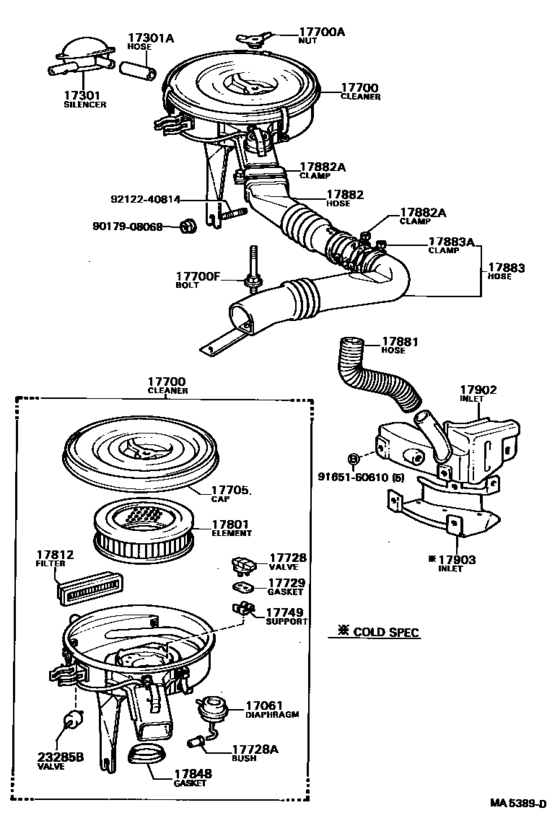

Air Cleaner ([08.1981 - ] (8108- )4KU) Diagram Toyota COROLLA
- Year
- 1979 - 1983
- Sales region
- Japan
- Frame
- KE70
- grade
- DX
- body
- SED
- ENGINE
- 4KU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 03.1979
- To
- 04.1983
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-13010
Diaphragm Sub-Assy
[04.1980 - 08.1981] 4KU..KE70 |
17061-13010 |
— | ||
|
17061
|
17061
17061-13020 Diaphragm Sub-Assy[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17061-13020 |
US $50.96 |
||
|
17301
|
17301
17301-13020
Silencer Sub-Assy, Air Suction
[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17301-13020 |
— | ||
|
17301A
|
17301A
90445-31014
Hose(For Air Cleaner To Silencer)
[08.1981 - 08.1982] 4K#..KE7# |
90445-31014 |
— | ||
|
17301A
|
17301A
90910-05154 Hose(For Air Cleaner To Silencer)[08.1982 - 07.1987] 4K#,5KJ..KE7# |
90910-05154 |
US $17.47 |
||
|
17700
|
17700
17700-13070 Cleaner Assy, Air[03.1979 - 06.1980] 4KU..KE70..MTM |
17700-13070 |
US $476.11 |
||
| replacement | |||||
|
17700
|
17700
17700-13072
Cleaner Assy, Air
[03.1979 - 06.1980] 4KU..KE70..MTM |
17700-13072 |
— | ||
|
17700
|
17700
17700-13071 Cleaner Assy, Air[06.1980 - 08.1980] 4KU..KE70..MTM |
17700-13071 |
US $476.11 |
||
| replacement | |||||
|
17700
|
17700
17700-13072
Cleaner Assy, Air
[06.1980 - 08.1980] 4KU..KE70..MTM |
17700-13072 |
— | ||
|
17700
|
17700
17700-13072
Cleaner Assy, Air
[08.1980 - 08.1981] 4KU..KE70..MTM |
17700-13072 |
— | ||
|
17700
|
17700
17700-13210 Cleaner Assy, Air[08.1981 - 08.1982] 4KU..KE70,73 |
17700-13210 |
US $559.10 |
||
| replacement | |||||
|
17700
|
17700
17700-13211
Cleaner Assy, Air
[08.1981 - 08.1982] 4KU..KE70,73 |
17700-13211 |
— | ||
|
17700
|
17700
17700-13211
Cleaner Assy, Air
[08.1982 - 07.1987] 4KU..KE70,73 |
17700-13211 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[03.1979 - 08.1981] 3AU..AE70; 12TJ,13TU..TE70,73; 4KU..KE70 |
90175-06003 |
from US $1.27 |
||
|
17700F
|
17700F
90116-06106
Bolt, Stud(For Air Cleaner Setting)
[03.1979 - 08.1981] 4K#..KE7# L=87,S=13&30 |
90116-06106 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[08.1981 - 07.1987] 4K#,5KJ..KE7# |
90116-06142 |
US $2.53 |
||
|
17705
|
17705
17705-13031
Cap Sub-Assy, Air Cleaner
[03.1979 - 08.1981] 4KU..KE70 |
17705-13031 |
— | ||
|
17705
|
17705
17705-13060
Cap Sub-Assy, Air Cleaner
[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17705-13060 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-13011
Cap Sub-Assy, Air Cleaner
[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17705-13011 |
— | ||
|
17728
|
17728
17728-24011
Valve, Thermostatic
[03.1979 - 07.1987] 4KU..KE70,73 |
17728-24011 |
— | ||
|
17728A
|
17728A
90386-03001
Bush(For Air Cleaner)
[04.1980 - 08.1981] 4KU..KE70 |
90386-03001 |
— | ||
|
17729
|
17729
17729-34010
Gasket, Thermostat Valve
[08.1981 - 07.1987] 4KU..KE70,73 |
17729-34010 |
— | ||
|
17749
|
17749
17749-34010
Support, Thermostat Valve
[08.1981 - 07.1987] 4KU..KE70,73 |
17749-34010 |
— | ||
|
17801
|
17801
17801-13010 Element Sub-Assy, Air Cleaner Filter[03.1979 - 07.1987] 4K#,5KJ..KE7# |
17801-13010 |
US $17.63 |
||
|
17812
|
17812
17812-13010 Filter, Air Cleaner, No.2AIR CLEANER, NO.2 [08.1980 - 08.1981] 4KU..KE70 |
17812-13010 |
US $31.89 |
||
|
17812
|
17812
17812-31010
Filter, Air Cleaner, No.2
[03.1979 - 08.1980] 3AU..AE70; 4KU..KE70 |
17812-31010 |
— | ||
|
17848
|
17848
17848-13010
Gasket, Air Cleaner To Carburetor
[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17848-13010 |
— | ||
| replacement | |||||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17848-10021 |
US $5.24 |
||
|
17848
|
17848
17848-24010 Gasket, Air Cleaner To CarburetorAIR CLEANER TO CARBURETOR [03.1979 - 08.1981] 4K#..KE7# |
17848-24010 |
US $5.24 |
||
|
17881
|
17881
17881-13050
Hose, Air Cleaner, No.1
[03.1979 - 08.1981] 4K#..KE7# |
17881-13050 |
— | ||
| replacement | |||||
|
17881
|
17881
17881-13051
Hose, Air Cleaner, No.1
[03.1979 - 08.1981] 4K#..KE7# |
17881-13051 |
— | ||
|
17881
|
17881
17881-34040
Hose, Air Cleaner, No.1
[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17881-34040 |
— | ||
|
17882
|
17882
17881-12030
Hose, Air Cleaner, No.2
[08.1981 - 07.1987] 4K#,5KJ..KE7# |
17881-12030 |
— | ||
|
17882
|
17882
17881-13030
Hose, Air Cleaner, No.2
[03.1979 - 08.1981] 4KU..KE70 |
17881-13030 |
— | ||
|
17882A
|
17882A
90460-01022 Clamp, Hose(For Air Cleaner Duct)[08.1981 - 07.1987] 4K#,5KJ..KE7# AIR CLEANER SIDE |
90460-01022 |
US $6.99 |
||
|
17882A
|
17882A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[03.1979 - 08.1981] 4KU..KE70 AIR CLEANER SIDE |
90460-47036 |
US $3.52 |
||
|
17882A
|
17882A
96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)[03.1979 - 08.1981] 4KU..KE70 BODY SIDE |
96111-10560 |
US $3.68 |
||
|
17883
|
17883
17882-12010 Hose, Air Cleaner, No.3AIR CLEANER, NO.3 [08.1981 - 07.1987] 4K#,5KJ..KE7# |
17882-12010 |
US $32.91 |
||
|
17883
|
17883
17882-13030 Hose, Air Cleaner, No.3[03.1979 - 10.1980] 4KU..KE70 |
17882-13030 |
US $31.89 |
||
| replacement | |||||
|
17883
|
17883
17882-13031 Hose, Air Cleaner, No.3[03.1979 - 10.1980] 4KU..KE70 |
17882-13031 |
US $31.89 |
||
|
17883
|
17883
17882-13031 Hose, Air Cleaner, No.3[10.1980 - 08.1981] 4KU..KE70; 13TU..TE70..GL,SE,SL W/POWER STEERING |
17882-13031 |
US $31.89 |
||
|
17883A
|
17883A
90460-60001 Clamp(For Air Cleaner Hose, No.3)[03.1979 - 08.1981] 4KU..KE70 HOSE X APRON |
90460-60001 |
US $3.06 |
||
|
17902
|
17902
17167-13010 Inlet Sub-Assy, Hot Air Intake, No.1[03.1979 - 08.1981] 4K#..KE7# COLD SPEC |
17167-13010 |
US $91.73 |
||
|
17902
|
17902
17167-13020 Inlet Sub-Assy, Hot Air Intake, No.1HOT AIR INTAKE, NO.1 [08.1981 - 07.1987] 4KU..KE70,73 |
17167-13020 |
US $96.10 |
||
|
17903
|
17903
17168-13010 Inlet Sub-Assy, Hot Air Intake, No.2[03.1979 - 08.1981] 4K#..KE7# COLD SPEC |
17168-13010 |
US $66.10 |
||
|
17903
|
17903
17168-13020 Inlet Sub-Assy, Hot Air Intake, No.2[08.1981 - 07.1987] 4KU..KE70,73 COLD SPEC |
17168-13020 |
US $77.17 |
||
|
23285B
|
23285B
90917-10049 Valve, Check, No.1[08.1981 - 07.1987] 4KU..KE70,73 |
90917-10049 |
from US $5.97 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.74 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
|
9212240814
|
9212240814
92122-40814 Bolt, Stud(For Oil Pan) |
92122-40814 |
US $2.04 |
||
