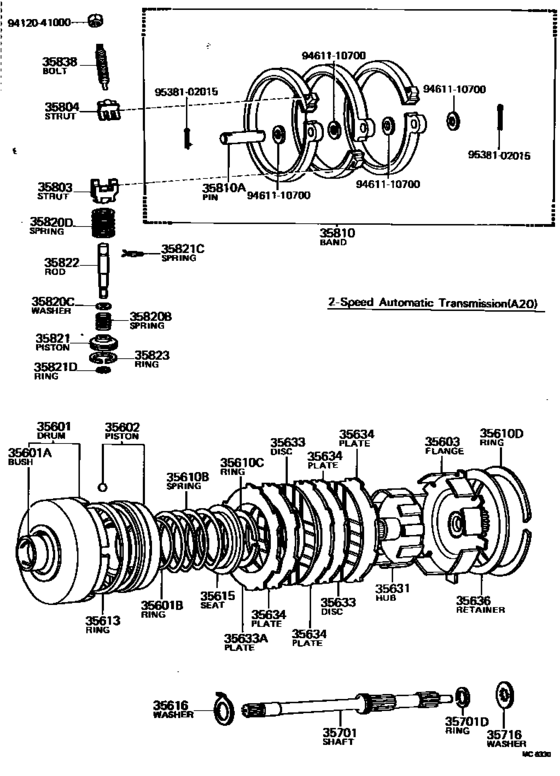

Brake Band & Multiple Disc Clutch (Atm) ([08.1979 - 08.1981] (7908-8108)2FC) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Europe
- Frame
- KE70
- grade
- DX
- body
- SED
- ENGINE
- 4K
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 2FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35601
|
35601
35601-12010 Drum Sub-Assy, ClutchCLUTCH [08.1979 - 08.1981] KE70..2FC |
35601-12010 |
US $158.70 |
||
|
35601A
|
35601A
90999-73038 Bush, Bimetal Formed (For Clutch Drum)BIMETAL FORMED (FOR CLUTCH DRUM) [08.1979 - 08.1981] KE70..2FC |
90999-73038 |
US $10.05 |
||
|
35601B
|
35601B
90301-47100 Ring, O (For Front Clutch Drum)O (FOR FRONT CLUTCH DRUM) [08.1979 - 08.1981] KE70..2FC |
90301-47100 |
US $4.95 |
||
|
35601B
|
35601B
90301-57188 Ring, O (For Underdrive Clutch Piston)[08.1981 - 06.1984] KE70,TE7#..ATM..(EUR,GEN,SA) |
90301-57188 |
US $10.08 |
||
| replacement | |||||
|
35601B
|
35601B
90301-56007 Ring, O (For Underdrive Clutch Piston)[08.1981 - 06.1984] KE70,TE7#..ATM..(EUR,GEN,SA) |
90301-56007 |
US $2.72 |
||
|
35602
|
35602
35602-12020 Piston Sub-Assy, Front ClutchFRONT CLUTCH [08.1979 - 08.1981] KE70..2FC |
35602-12020 |
US $44.84 |
||
|
35602
|
35602
35602-12040 Piston Sub-Assy, Front Clutch[08.1981 - 07.1982] KE70..3FC..(EUR,GEN) |
35602-12040 |
US $69.16 |
||
| replacements | |||||
|
35602
|
35602
35677-30160 Disc, Clutch (For Overdrive)[08.1981 - 07.1982] KE70..3FC..(EUR,GEN) |
35677-30160 |
from US $39.14 |
||
|
35602
|
35602
35602-12031 Piston Sub-Assy, Front Clutch[08.1981 - 07.1982] KE70..3FC..(EUR,GEN) |
35602-12031 |
US $72.80 |
||
|
35603
|
35603
35603-12010
Flange Sub-Assy, Clutch, W/low Sun Gear
[08.1979 - 08.1981] KE70..2FC |
35603-12010 |
— | ||
|
35610B
|
35610B
90501-10671 Spring, Compression (For Overdrive Direct Clutch)[08.1981 - 04.1982] KE70,TE71..3FC..(EUR,GEN) |
90501-10671 |
US $2.48 |
||
|
35610B
|
35610B
90501-55620 Spring, Compression (For Front Clutch Piston Return)COMPRESSION (FOR FRONT CLUTCH PISTON RETURN) [08.1979 - 08.1981] KE70..2FC |
90501-55620 |
US $7.72 |
||
|
35610C
|
35610C
90520-39261
Ring, Shaft Snap (For Front Clutch Piston Return Spring)
[08.1981 - 06.1984] KE70,TE7#..ATM..(EUR,GEN,SA) |
90520-39261 |
— | ||
|
35610C
|
35610C
90520-52077 Ring, Shaft Snap (For Front Clutch Piston Return Spring)SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING) [08.1979 - 08.1981] KE70..2FC |
90520-52077 |
US $2.33 |
||
|
35610D
|
35610D
90521-99093 Ring, Hole Snap (For Front Multiple Disc Clutch)HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) [08.1979 - 08.1981] KE70..2FC |
90521-99093 |
US $3.06 |
||
|
35610D
|
35610D
90521-99139
Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
[08.1981 - 06.1984] KE70,TE7#..ATM..(EUR,GEN,SA) |
90521-99139 |
— | ||
|
35613
|
35613
35653-30010 Ring, Clutch Piston Oil Seal, OuterCLUTCH PISTON OIL SEAL, OUTER [08.1979 - 08.1981] KE70..2FC |
35653-30010 |
US $10.05 |
||
|
35613
|
35613
90301-99016 Ring, O (For Overdrive Direct Clutch Piston)[08.1981 - 04.1982] KE70,TE71..3FC..(EUR,GEN) |
90301-99016 |
US $12.80 |
||
|
35615
|
35615
35615-12010
Seat, Clutch Piston Return Spring
[08.1979 - 08.1981] KE70..2FC |
35615-12010 |
— | ||
|
35615
|
35615
35615-30020 Seat, Clutch Piston Return Spring[08.1981 - 04.1982] KE70,TE71..3FC..(EUR,GEN) |
35615-30020 |
US $5.97 |
||
|
35616
|
35616
35616-12011
Washer, Clutch Drum Thrust
[08.1979 - 08.1981] KE70..2FC |
35616-12011 |
— | ||
|
35631
|
35631
35631-12011
Hub, Clutch(For Multiple Disc Clutch)
[08.1979 - 08.1981] KE70..2FC |
35631-12011 |
— | ||
|
35631
|
35631
35631-22010 Hub, Clutch(For Multiple Disc Clutch)[08.1981 - 07.1983] KE70,TE7#..ATM..(EUR,GEN,SA) |
35631-22010 |
US $103.38 |
||
| replacement | |||||
|
35631
|
35631
35631-30050 Hub, Clutch(For Multiple Disc Clutch)[08.1981 - 07.1983] KE70,TE7#..ATM..(EUR,GEN,SA) |
35631-30050 |
US $87.36 |
||
|
35633
|
35633
35633-12011 Disc, Clutch (For Front Clutch)CLUTCH (FOR FRONT CLUTCH) [08.1979 - 08.1981] KE70..2FC |
35633-12011 |
US $35.09 |
||
| replacement | |||||
|
35633
|
35633
35633-12012 Disc, Clutch (For Front Clutch)[08.1979 - 08.1981] KE70..2FC |
35633-12012 |
US $35.24 |
||
|
35633
|
35633
35677-22020 Disc, Clutch (For Overdrive)[08.1981 - 07.1983] KE70,TE7#..ATM..(EUR,GEN,SA) NSK-WARNER |
35677-22020 |
US $47.17 |
||
| replacement | |||||
|
35633
|
35633
35677-30160 Disc, Clutch (For Overdrive)[08.1981 - 07.1983] KE70,TE7#..ATM..(EUR,GEN,SA) NSK-WARNER |
35677-30160 |
from US $39.14 |
||
|
35633A
|
35633A
35672-12010 Plate, Front Clutch CushionFRONT CLUTCH CUSHION [08.1979 - 08.1981] KE70..2FC |
35672-12010 |
US $23.44 |
||
|
35634
|
35634
35634-12010 Plate, Front ClutchFRONT CLUTCH [08.1979 - 08.1981] KE70..2FC |
35634-12010 |
US $8.59 |
||
|
35634
|
35634
35634-22040 Plate, Clutch (For Overdrive)[08.1981 - 07.1983] KE70,TE7#..ATM..(EUR,GEN,SA) T=1.8,NSK-WARNER |
35634-22040 |
US $20.81 |
||
|
35636
|
35636
35636-12010
Retainer, Clutch Flange
[08.1979 - 08.1981] KE70..2FC |
35636-12010 |
— | ||
|
35701
|
35701
35701-12011 Shaft Sub-Assy, Input[08.1981 - 06.1984] KE70..3FC..(EUR,GEN) |
35701-12011 |
US $390.21 |
||
| replacements | |||||
|
35701
|
35701
35701-12012 Shaft Sub-assy, Input[08.1981 - 06.1984] KE70..3FC..(EUR,GEN) |
35701-12012 |
US $422.24 |
||
|
35701
|
35701
90520-99012
Ring, Hole Snap (For Front Multiple Disc Clutch)
[08.1981 - 06.1984] KE70..3FC..(EUR,GEN) |
90520-99012 |
— | ||
|
35701
|
35701
35711-12010
Shaft Sub-Assy, Input
[08.1979 - 08.1981] KE70..2FC |
35711-12010 |
— | ||
|
35701D
|
35701D
35712-12010 Ring (For Input Shaft)[08.1979 - 08.1981] KE70..2FC |
35712-12010 |
US $10.05 |
||
|
35716
|
35716
35716-12010 Washer, Low Sun Gear Thrust, No.1LOW SUN GEAR THRUST, NO.1 [08.1979 - 08.1981] KE70..2FC T=2.0 |
35716-12010 |
US $7.57 |
||
|
35716
|
35716
35717-12010 Washer, Low Sun Gear Thrust, No.1LOW SUN GEAR THRUST, NO.1 [08.1979 - 08.1981] KE70..2FC T=2.6 |
35717-12010 |
US $7.57 |
||
|
35803
|
35803
35803-12010 Strut Sub-Assy, Low Brake Band ApplyLOW BRAKE BAND APPLY [08.1979 - 08.1981] KE70..2FC |
35803-12010 |
US $4.08 |
||
|
35804
|
35804
35804-12011 Strut Sub-Assy, Low Brake Band AnchorLOW BRAKE BAND ANCHOR [08.1979 - 08.1981] KE70..2FC |
35804-12011 |
US $8.74 |
||
|
35810
|
35810
35810-12013 Band Assy, Transmission Brake (For Front)TRANSMISSION BRAKE (FOR FRONT) [08.1979 - 08.1981] KE70..2FC |
35810-12013 |
US $200.93 |
||
| replacement | |||||
|
35810
|
35810
35810-12014 Band Assy, Transmission Brake (For Front)[08.1979 - 08.1981] KE70..2FC |
35810-12014 |
US $200.93 |
||
|
35810A
|
35810A
90255-07008
Pin, W/hole Straight (For Brake Band)
[08.1979 - 08.1981] KE70..2FC |
90255-07008 |
— | ||
|
35820B
|
35820B
90501-26317 Spring, Compression (For Low Servo Piston Inner)COMPRESSION (FOR LOW SERVO PISTON INNER) [08.1979 - 08.1981] KE70..2FC |
90501-26317 |
US $2.77 |
||
|
35820C
|
35820C
90201-08255 Washer, Plate (For Low Servo Piston Return Spring)[08.1979 - 08.1981] KE70..2FC |
90201-08255 |
US $2.18 |
||
|
35820D
|
35820D
90501-26318 Spring, Compression (For Low Servo Piston Return)COMPRESSION (FOR LOW SERVO PISTON RETURN) [08.1979 - 08.1981] KE70..2FC |
90501-26318 |
US $2.91 |
||
|
35821
|
35821
35821-20010 Piston, Low ServoLOW SERVO [08.1979 - 08.1981] KE70..2FC |
35821-20010 |
US $19.36 |
||
|
35821C
|
35821C
90524-08010
Spring, Low Servo Piston Spring Lock Retainer
[08.1979 - 08.1981] KE70..2FC |
90524-08010 |
— | ||
|
35821D
|
35821D
96160-00400 Ring, E(For Release Arm)[08.1979 - 08.1981] KE70..2FC |
96160-00400 |
US $1.05 |
||
|
35822
|
35822
35822-12010 Rod, Low Servo PistonLOW SERVO PISTON [08.1979 - 08.1981] KE70..2FC |
35822-12010 |
US $8.74 |
||
|
35823
|
35823
35823-20010 Ring, Servo PistonSERVO PISTON [08.1979 - 08.1981] KE70..2FC |
35823-20010 |
US $8.88 |
||
|
35838
|
35838
35838-12010
Bolt, Brake Band Anchor
[08.1979 - 08.1981] KE70..2FC |
35838-12010 |
— | ||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9461110700
|
9461110700
94611-10700 New Genuine Part |
94611-10700 |
US $1.75 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
