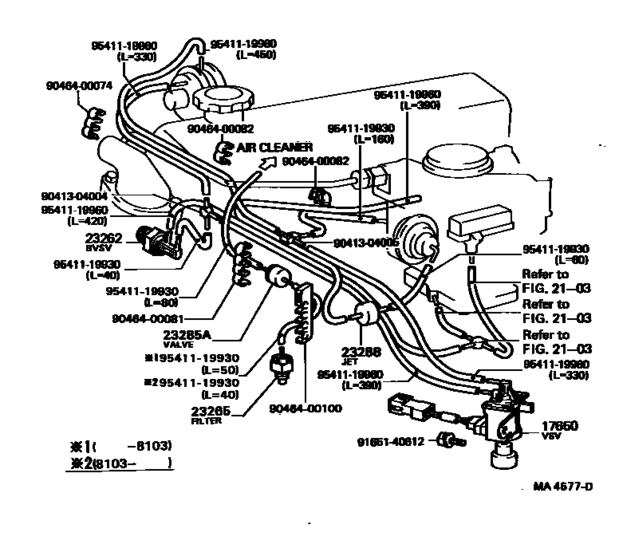

Vacuum Piping ([08.1979 - 08.1981] (7908-8108)4KC) Diagram Toyota COROLLA
- Year
- 1979 - 1982
- Sales region
- General
- Frame
- KE70
- grade
- DX
- body
- SED
- ENGINE
- 4KC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1982
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- SDN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
89570-12130 Valve Assy, Vacuum SwitchingVACUUM SWITCHING [08.1979 - 08.1981] 3TC..TE72 TCS; 4KC..KE70 TCS |
89570-12130 |
US $132.50 |
||
|
23262
|
23262
90925-05016
Valve, Bimetal Vacuum Switching, No.1
[08.1979 - 08.1981] 4KC..KE70 |
90925-05016 |
— | ||
|
23262
|
23262
90925-05052
Valve, Bimetal Vacuum Switching, No.1
[08.1981 - 12.1982] 4KC..KE70 |
90925-05052 |
— | ||
|
23265
|
23265
90917-11022 Filter, Gas, No.1[10.1980 - 02.1981] 4KC..KE70 |
90917-11022 |
from US $15.50 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1981 - 08.1982] 4K#..KE70..MTM..EUR DENSO |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1981 - 08.1982] 4K#..KE70..MTM..EUR DENSO |
90917-11027 |
from US $23.71 |
||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1981 - 08.1982] 4K#..KE70..MTM..EUR AISIN |
90917-11027 |
from US $23.71 |
||
|
23285A
|
23285A
90917-10049 Valve, Check, No.1[10.1980 - 02.1981] 4KC..KE70 |
90917-10049 |
from US $6.59 |
||
|
23288
|
23288
90925-04006 Jet(For Opener)[08.1981 - 07.1987] 4K#..KE70..EUR |
90925-04006 |
US $15.90 |
||
|
9041304004
|
9041304004
90413-04004 Way, 3(For Canister) |
90413-04004 |
US $2.62 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.04 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400081
|
9046400081
90464-00081
Clamp (For Idle Up Divice), No.1
|
90464-00081 |
— | ||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
from US $1.60 |
||
|
9046400100
|
9046400100
90464-00100
New Genuine Part
|
90464-00100 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119960
|
9541119960
95411-19960
Hose, Vacuum, No.2 (For Front Drive Shift)
|
95411-19960 |
— | ||
| replacement | |||||
|
9541119960
|
9541119960
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
