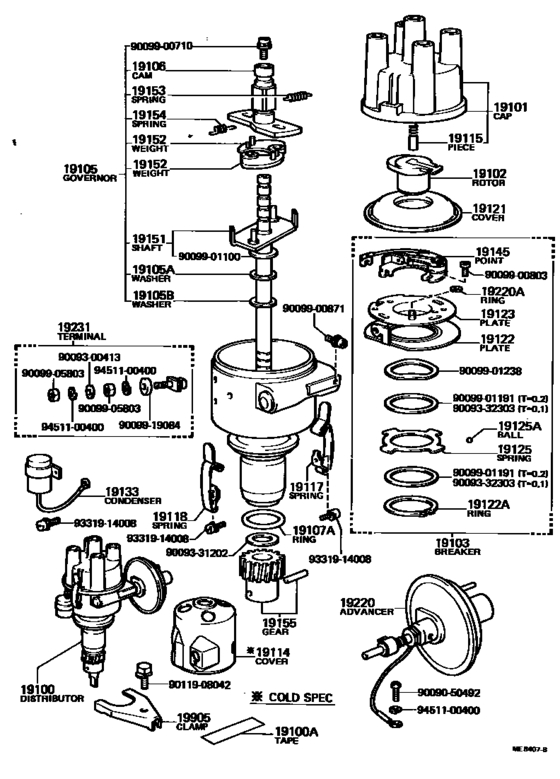

Distributor ([08.1979 - 08.1981] (7908-8108)4KJ) Diagram Toyota COROLLA
- Year
- 1979 - 1981
- Sales region
- Japan
- Frame
- KE71
- grade
- GL
- body
- V
- ENGINE
- 4KJ
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1979
- To
- 08.1981
- Gear Shift Type
- 4F
- No.of Doors
- 2D
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-13140 Distributor Assy[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19100-13140 |
US $380.02 |
||
| replacement | |||||
|
19100
|
19100
19100-13360 Distributor Assy[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19100-13360 |
US $416.42 |
||
|
19100
|
19100
19100-24101 Distributor Assy[08.1979 - 08.1981] 4KJ..KE71 |
19100-24101 |
US $361.09 |
||
| replacement | |||||
|
19100
|
19100
19100-13360 Distributor Assy[08.1979 - 08.1981] 4KJ..KE71 |
19100-13360 |
US $416.42 |
||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[03.1979 - 07.1987] 3AU..AE70; 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[03.1979 - 07.1987] 3AU..AE70; 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90919-24003 |
— | ||
|
19101
|
19101
19101-25070 Cap Sub-Assy, Distributor[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19101-25070 |
US $38.44 |
||
|
19101
|
19101
19101-31013
Cap Sub-Assy, Distributor
[08.1979 - 08.1981] 4KJ..KE71 |
19101-31013 |
— | ||
|
19102
|
19102
19102-22010 Rotor Sub-Assy, Distributor[08.1979 - 10.1979] 4KJ..KE71 |
19102-22010 |
US $9.17 |
||
| replacement | |||||
|
19102
|
19102
19102-24121
Rotor Sub-Assy, Distributor
[08.1979 - 10.1979] 4KJ..KE71 |
19102-24121 |
— | ||
|
19102
|
19102
19102-22012
Rotor Sub-Assy, Distributor
[10.1979 - 08.1981] 4KJ..KE71 |
19102-22012 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-24121
Rotor Sub-Assy, Distributor
[10.1979 - 08.1981] 4KJ..KE71 |
19102-24121 |
— | ||
|
19102
|
19102
19102-33012 Rotor Sub-Assy, Distributor[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19102-33012 |
from US $9.73 |
||
|
19103
|
19103
19103-13070 Breaker Sub-Assy, Distributor[12.1980 - 06.1981] 4KJ..KE71 COLD SPEC |
19103-13070 |
US $61.44 |
||
|
19103
|
19103
19103-22011 Breaker Sub-Assy, Distributor[08.1979 - 06.1981] 4KJ..KE71 |
19103-22011 |
US $52.27 |
||
|
19103
|
19103
19103-33013 Breaker Sub-Assy, Distributor[03.1980 - 12.1980] 4KJ..KE71 COLD SPEC |
19103-33013 |
US $58.24 |
||
|
19105
|
19105
19105-13140 Governor Sub-Assy[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19105-13140 |
US $104.83 |
||
|
19105
|
19105
19105-24100 Governor Sub-Assy[08.1979 - 08.1981] 4KJ..KE71 |
19105-24100 |
US $112.11 |
||
|
19105A
|
19105A
90099-01385
Washer(For Governor Shaft Thrust)
[03.1980 - 08.1981] 4KJ..KE71 厚さ＝２．５,T=2.5,COLD SPEC |
90099-01385 |
— | ||
|
19105A
|
19105A
90099-01386
Washer(For Governor Shaft Thrust)
[03.1980 - 08.1981] 4KJ..KE71 厚さ＝２．７,T=2.7,COLD SPEC |
90099-01386 |
— | ||
|
19105A
|
19105A
90099-01387
Washer(For Governor Shaft Thrust)
[03.1980 - 08.1981] 4KJ..KE71 厚さ＝２．９,T=2.9,COLD SPEC |
90099-01387 |
— | ||
|
19105A
|
19105A
90099-01412
Washer(For Governor Shaft Thrust)
[03.1980 - 08.1981] 4KJ..KE71 厚さ＝２．３,T=2.3,COLD SPEC |
90099-01412 |
— | ||
|
19105A
|
19105A
90099-02093
Washer(For Governor Shaft Thrust)
[08.1979 - 08.1981] 4KJ..KE71 T=0.8 |
90099-02093 |
— | ||
|
19105B
|
19105B
90093-31202
Washer, No.2(For Governor Shaft Thrust)
[08.1979 - 08.1981] 4KJ..KE71 |
90093-31202 |
— | ||
|
19105B
|
19105B
90093-31204
Washer, No.2(For Governor Shaft Thrust)
[08.1979 - 08.1981] 4KJ..KE71 T=0.1 |
90093-31204 |
— | ||
|
19106
|
19106
19106-33021 Cam Sub-Assy, Distributor[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19106-33021 |
US $47.90 |
||
|
19106
|
19106
19106-40021 Cam Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 08.1981] 4KJ..KE71 |
19106-40021 |
US $31.60 |
||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[03.1979 - 07.1987] 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[03.1979 - 07.1987] 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
90099-14090 |
from US $2.80 |
||
|
19114
|
19114
19114-24030
Cover, Water Proof(For Distributor)
[08.1979 - 03.1980] 4KJ..KE71 COLD SPEC |
19114-24030 |
— | ||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[03.1979 - 07.1987] 3AU..AE70; 4K#,5KJ..KE7#; 12TJ,13TU,2TGEU..TE7# |
19115-50010 |
— | ||
|
19117
|
19117
19117-24080
Spring, Distributor Cap, A
[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19117-24080 |
— | ||
|
19117
|
19117
19117-30030
Spring, Distributor Cap, A
[08.1979 - 08.1981] 4KJ..KE71 |
19117-30030 |
— | ||
|
19118
|
19118
19117-24080
Spring, Distributor Cap, A
[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19117-24080 |
— | ||
|
19118
|
19118
19118-30030
Spring, Distributor Cap, B
[08.1979 - 08.1981] 4KJ..KE71 |
19118-30030 |
— | ||
|
19121
|
19121
19121-10010
Cover, Dust Proof
[08.1979 - 08.1981] 4KJ..KE71 |
19121-10010 |
— | ||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19121-38030 |
— | ||
|
19122
|
19122
19122-13070
Plate, Stationary, Distributor
[12.1980 - 06.1981] 4KJ..KE71 COLD SPEC |
19122-13070 |
— | ||
|
19122
|
19122
19122-29021
Plate, Stationary, Distributor
[08.1979 - 08.1981] 4KJ..KE71 |
19122-29021 |
— | ||
|
19122
|
19122
19122-33013 Plate, Stationary, Distributor[03.1980 - 12.1980] 4KJ..KE71 COLD SPEC |
19122-33013 |
US $27.08 |
||
|
19122A
|
19122A
90099-07081
Ring, Snap(For Distributor Stationary Plate)
[08.1979 - 08.1981] 4KJ..KE71 |
90099-07081 |
— | ||
|
19123
|
19123
19123-41011
Plate, Distributor Breaker
[08.1979 - 08.1981] 4KJ..KE71 |
19123-41011 |
— | ||
|
19125
|
19125
19125-30010
Spring(For Distributor Stationary Plate)
[08.1979 - 08.1981] 4KJ..KE71 |
19125-30010 |
— | ||
|
19125A
|
19125A
90099-12003
Ball, Distributor Stationary Plate
[08.1979 - 08.1981] 4KJ..KE71 |
90099-12003 |
— | ||
|
19133
|
19133
90099-52059 Condenser, Distributor[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
90099-52059 |
from US $6.59 |
||
|
19133
|
19133
90099-52060
Condenser, Distributor
[08.1979 - 08.1981] 4KJ..KE71 |
90099-52060 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[08.1979 - 08.1981] 4KJ..KE71; 12TJ..TE73 |
19145-26060 |
from US $17.02 |
||
|
19151
|
19151
19151-22031 Shaft, Governor[08.1979 - 08.1981] 4KJ..KE71 |
19151-22031 |
US $34.07 |
||
|
19151
|
19151
19151-24081 Shaft, Governor[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19151-24081 |
US $44.12 |
||
|
19152
|
19152
19152-45060
Weight, Governor
[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19152-44170 |
— | ||
|
19152
|
19152
19152-87104
Weight, Governor
[08.1979 - 08.1981] 4KJ..KE71 |
19152-87104 |
— | ||
|
19153
|
19153
19153-13140 Spring, Governor, AGOVERNOR, A [03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19153-13140 |
US $5.39 |
||
|
19153
|
19153
19153-24100
Spring, Governor, A
[08.1979 - 08.1981] 4KJ..KE71 |
19153-24100 |
— | ||
|
19154
|
19154
19154-13140 Spring, Governor, BGOVERNOR, B [03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19154-13140 |
US $5.39 |
||
|
19154
|
19154
19154-24100 Spring, Governor, BGOVERNOR, B [08.1979 - 08.1981] 4KJ..KE71 |
19154-24100 |
US $5.82 |
||
|
19155
|
19155
19195-24020 Gear, Spiral, DistributorSPIRAL, DISTRIBUTOR [08.1979 - 08.1981] 4KJ..KE71 |
19195-24020 |
US $44.55 |
||
|
19155
|
19155
19195-24081 Gear, Spiral, Distributor[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19195-24081 |
US $44.84 |
||
|
19220
|
19220
19220-13140
Advancer Assy, Vacuum, Distributor
[03.1980 - 12.1980] 4KJ..KE71 COLD SPEC |
19220-13140 |
— | ||
|
19220
|
19220
19220-24101 Advancer Assy, Vacuum, DistributorVACUUM, DISTRIBUTOR [08.1979 - 08.1981] 4KJ..KE71 |
19220-24101 |
US $52.42 |
||
|
19220A
|
19220A
90099-07104
Ring, Snap(For Governor Weight)
[03.1979 - 08.1981] 3AU..AE70; 4KJ..KE71 |
90099-07104 |
— | ||
|
19220A
|
19220A
90099-07109
Ring, Snap(For Governor Weight)
[08.1981 - 07.1987] 3AU..AE70; 4K#,5KJ..KE7#; 12TJ,2TGEU..TE7# |
90099-07109 |
— | ||
|
19231
|
19231
19231-38011
Terminal, Distributor
[03.1980 - 08.1981] 4KJ..KE71 COLD SPEC |
19231-38011 |
— | ||
|
19231
|
19231
19231-45020 Terminal, DistributorDISTRIBUTOR [08.1979 - 08.1981] 4KJ..KE71 |
19231-45020 |
US $2.10 |
||
|
19905
|
19905
19955-24010
Clamp Sub-Assy, Distributor
[03.1979 - 08.1981] 4K#..KE7# |
19955-24010 |
— | ||
|
9009050492
|
9009050492
90090-50492
New Genuine Part
|
90090-50492 |
— | ||
|
9009300413
|
9009300413
90093-00413
New Genuine Part
|
90093-00413 |
— | ||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009332303
|
9009332303
90093-32303
New Genuine Part
|
90093-32303 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900803
|
9009900803
90099-00803
New Genuine Part
|
90099-00803 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009901100
|
9009901100
90099-01100
New Genuine Part
|
90099-01100 |
— | ||
|
9009901191
|
9009901191
90099-01191
New Genuine Part
|
90099-01191 |
— | ||
|
9009901238
|
9009901238
90099-01238
New Genuine Part
|
90099-01238 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9009919084
|
9009919084
90099-19084
New Genuine Part
|
90099-19084 |
— | ||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.40 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
