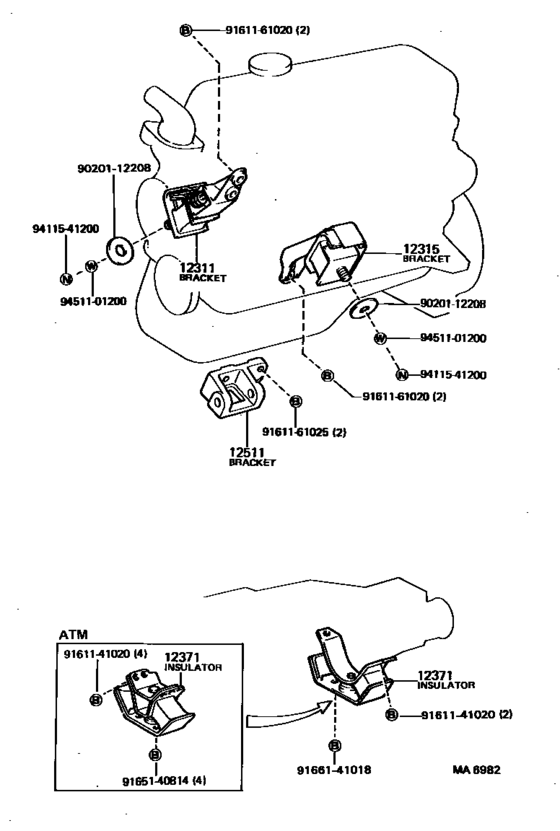

Mounting ([08.1983 - ] (8308- )5KJ) Diagram Toyota COROLLA
- Year
- 1983 - 1987
- Sales region
- Japan
- Frame
- KE74
- grade
- DX
- body
- V
- ENGINE
- 5KJ
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1983
- To
- 07.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12301-13090
Bracket, Engine Mounting, Front No.1 Rh
[08.1983 - 07.1987] 5KJ..KE74 |
12301-13090 |
— | ||
|
12315
|
12315
12302-13091
Bracket, Engine Mounting, Front No.1 Lh
[08.1983 - 07.1987] 5KJ..KE74 |
12302-13091 |
— | ||
| replacement | |||||
|
12315
|
12315
12302-13092 Bracket, Engine Mounting, Front No.1 Lh[08.1983 - 07.1987] 5KJ..KE74 |
12302-13092 |
US $104.83 |
||
|
12371
|
12371
12371-13060 Insulator, Engine Mounting, Rear No.1[08.1983 - 07.1987] 5KJ..KE74..MTM |
12371-13060 |
US $69.89 |
||
|
12511
|
12511
12511-24011
Bracket, Alternator, No.1
[03.1979 - 07.1987] 4K#,5KJ..KE7# |
12511-24011 |
— | ||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
US $3.04 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $2.57 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166141018
|
9166141018
91661-41018
New Genuine Part
|
91661-41018 |
— | ||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $1.03 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
